HP 8 1401 Front-Facing Camera Replacement

Geschrieben von: Katie Presz
  • Kommentare: 0
HP 8 1401 Front-Facing Camera Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

5 Minuten

Einleitung

This guide should be used if the front-facing camera is malfunctioning, cracked, or has other damage.

  1. JufRsCqvmOELlcZ4

    • Using a Torx T4 screwdriver, remove the four 5 mm screws on the back panel.

  2. XvqPOIBJldWAKhNU

    • Insert the tip of a plastic opening tool in the seam between the front and back panels.

  3. WDHxTKCCGdSgmbNt
    WDHxTKCCGdSgmbNt
    Fu5JMIy5ptF3X3TA

    • Slide the plastic opening tool around all edges of the device until the back panel detaches.

    • Lift off the back panel.

  4. SumVjNCJnKQ6oSND

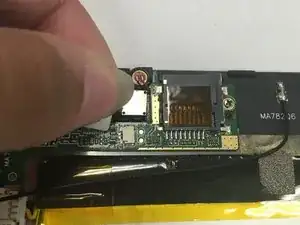

    • Place the tip of your spudger under the edge of the press fit connector, and pry the connector straight up from its socket.

  5. XENq6HZBXUXVOl2d
    XENq6HZBXUXVOl2d
    yX3rAHIeoIJ5K3R3

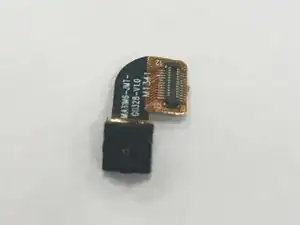

    • Lift the front-facing camera out of the tablet.

  6. JyKoJcpX1NJLI5mk

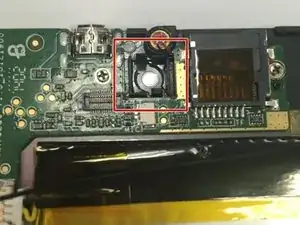

    • After the front-facing camera has been removed, the tablet should look like this.

Abschluss

To reassemble your device, follow these instructions in reverse order.
