HP 8 1401 Power/ Volume Button Board Replacement

Geschrieben von: Katie Presz
  • Kommentare: 0
HP 8 1401 Power/ Volume Button Board Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

5 Minuten

Einleitung

This guide can help if your power or volume buttons are broken. The power/ volume board may not be completely attached to the control board so be careful when unhooking the clip.

  1. JufRsCqvmOELlcZ4

    • Using a Torx T4 screwdriver, remove the four 5 mm screws on the back panel.

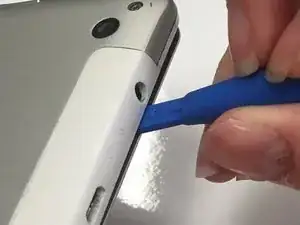

  2. XvqPOIBJldWAKhNU

    • Insert the tip of a plastic opening tool in the seam between the front and back panels.

  3. WDHxTKCCGdSgmbNt
    WDHxTKCCGdSgmbNt
    Fu5JMIy5ptF3X3TA

    • Slide the plastic opening tool around all edges of the device until the back panel detaches.

    • Lift off the back panel.

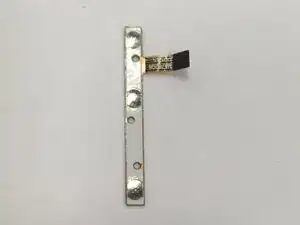

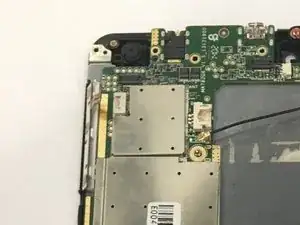

  4. RbO2r2fuPgVSHQQx
    RbO2r2fuPgVSHQQx
    tqDGBFXbHoFDllca
    nyodwD1oGVlNYUfN

    • Disconnect the power/ volume button board from the control board by pulling the ribbon cable out of the white connector. You can use tweezers or your fingers.

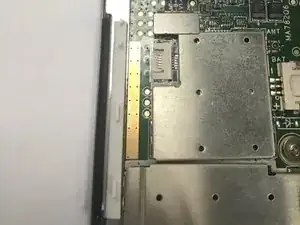

  5. ZtWxaEOMdupTyHCb

    • After removing the power/ volume button board, it should look like this.

Abschluss

To reassemble your device, follow these instructions in reverse order.
