HP 8 1401 Rear-Facing Camera Replacement

Geschrieben von: Katie Presz
  • Kommentare: 0
HP 8 1401 Rear-Facing Camera Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

5 Minuten

Einleitung

This guide will help you if your rear-facing camera is cracked or damaged. You may need to pull a little bit to remove the camera, it is well secured in the tablet.

  1. JufRsCqvmOELlcZ4

    • Using a Torx T4 screwdriver, remove the four 5 mm screws on the back panel.

  2. XvqPOIBJldWAKhNU

    • Insert the tip of a plastic opening tool in the seam between the front and back panels.

  3. WDHxTKCCGdSgmbNt
    WDHxTKCCGdSgmbNt
    Fu5JMIy5ptF3X3TA

    • Slide the plastic opening tool around all edges of the device until the back panel detaches.

    • Lift off the back panel.

  4. C6u3kafv3PE2YLXq
    C6u3kafv3PE2YLXq
    6YKWaFZXYcLdKIy6

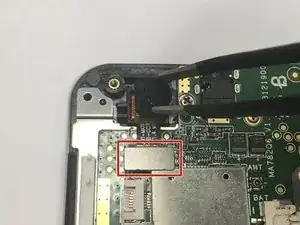

    • Place the tip of your spudger under the edge of the press fit connector, and pry the connector straight up from its socket.

    • Lift the rear-facing camera out of its compartment using the tweezers.

Abschluss

To reassemble your device, follow these instructions in reverse order.
