HP Chromebook 11 G3 Battery Replacement

Geschrieben von: Rahul Goyal
  • Kommentare: 2
HP Chromebook 11 G3 Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

8

Zeitaufwand

5 Minuten

Einleitung

This guide walks through replacing a faulty battery. It requires removing the keyboard mount. Afterwards, it is relatively simple and requires only a Phillips head screwdriver to finish removal.

  1. kTLULoYvMWqxSApe
    kTLULoYvMWqxSApe
    3SOKsBJG3UuYRUqV

    • Flip the laptop upside down so that the lid lies flat on the table.

    • Remove the nine 6mm Phillips #00 screws that line the border.

  2. IRvkHp1aoqI5CyxA
    IRvkHp1aoqI5CyxA
    aKVyGerKYkgCL4vS

    • Remove the two rubber feet closest to the hinge using tweezers.

    • Remove the two 6mm Phillips #00 screws revealed under these rubber feet.

    • The rubber feet may tear while removal; preventing this can be difficult, but it won’t harm the laptop. If desired, replace these rubber feet during reassembly.

  3. LwgQFOUvVTgHQmfb

    • Flip the laptop so it is in the upright position.

    • Open the lid.

    • Unsnap the keyboard mount along the border of the laptop using a plastic opening tool.

    • This may require more force than expected. Hearing loud clicks as the plastic opening tool slides along the seam is normal.

  4. OyWy1LvdO12ZS4Ai
    OyWy1LvdO12ZS4Ai
    EETTmIjp6aXyiWw4
    w3kqSSplRh5kIxZi

    • Tilt the keyboard mount up.

    • Use a spudger to flip up the two ZIF connector retaining flaps for the ribbon cables that connect the keyboard mount to the motherboard.

    • Gently remove both ribbon cables.

  5. LFTxR4CXnvnHvpou

    • Lift the keyboard mount out of the laptop.

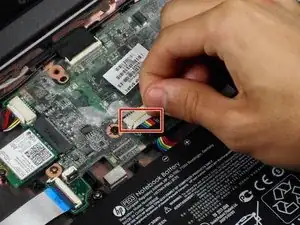

  6. ROrUBVUhhMTQ3MHN

    • Gently remove the battery’s rainbow-colored bundled cable from the motherboard.

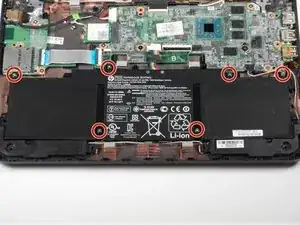

  7. bdbvNNIQ4YfeVaNQ
    bdbvNNIQ4YfeVaNQ
    WRLcnpagJMPnOtmL

    • Remove the six 4 mm Phillips #00 screws located along the perimeter of the battery.

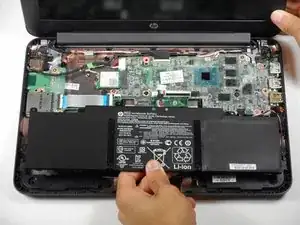

  8. KlNjtR2YncRXGEqV

    • Lift out the battery.

    • The laptop may tip backwards onto its lid due to uneven weight distribution.

Abschluss

To reassemble your device, follow these instructions in reverse order.
