HP Chromebook 11 G3 Charging Port Replacement

Geschrieben von: Rahul Goyal
  • Kommentare: 3
HP Chromebook 11 G3 Charging Port Replacement

Schwierigkeitsgrad

Easy

Schritte

8

Zeitaufwand

5 Minuten

Einleitung

This guide walks through replacing a faulty charging port. It requires removing the keyboard mount. Afterwards, it is relatively simple and requires only a plastic opening tool to finish removal.

  1. kTLULoYvMWqxSApe
    kTLULoYvMWqxSApe
    3SOKsBJG3UuYRUqV

    • Flip the laptop upside down so that the lid lies flat on the table.

    • Remove the nine 6mm Phillips #00 screws that line the border.

  2. IRvkHp1aoqI5CyxA
    IRvkHp1aoqI5CyxA
    aKVyGerKYkgCL4vS

    • Remove the two rubber feet closest to the hinge using tweezers.

    • Remove the two 6mm Phillips #00 screws revealed under these rubber feet.

    • The rubber feet may tear while removal; preventing this can be difficult, but it won’t harm the laptop. If desired, replace these rubber feet during reassembly.

  3. LwgQFOUvVTgHQmfb

    • Flip the laptop so it is in the upright position.

    • Open the lid.

    • Unsnap the keyboard mount along the border of the laptop using a plastic opening tool.

    • This may require more force than expected. Hearing loud clicks as the plastic opening tool slides along the seam is normal.

  4. OyWy1LvdO12ZS4Ai
    OyWy1LvdO12ZS4Ai
    EETTmIjp6aXyiWw4
    w3kqSSplRh5kIxZi

    • Tilt the keyboard mount up.

    • Use a spudger to flip up the two ZIF connector retaining flaps for the ribbon cables that connect the keyboard mount to the motherboard.

    • Gently remove both ribbon cables.

  5. LFTxR4CXnvnHvpou

    • Lift the keyboard mount out of the laptop.

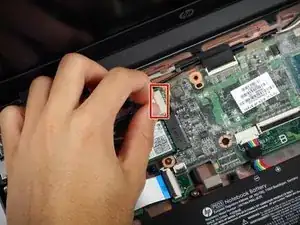

  6. QH2gf3BXCO1rrWUa

    • Gently remove the charging port’s slide-out connector from the motherboard.

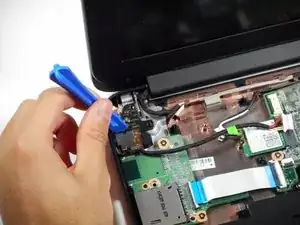

  7. nk3xxD1SILH3PrW5

    • Locate the two brown clips that secure the charging port to the motherboard from both edges.

    • Remove the charging port by sliding the plastic opening tool between the charging port and one of the clips, and then prying.

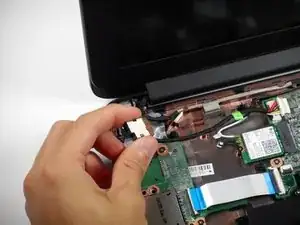

  8. IGrD1clP3y5BR5vI

    • Lift the charging port out of the base.

    Can I change the port to different port , because it very hard to get it charger when it spoilt

    BrighT -

Abschluss

To reassemble your device, follow these instructions in reverse order.
