HP Chromebook 11 G3 Motherboard Replacement

Geschrieben von: Rahul Goyal
  • Kommentare: 1
HP Chromebook 11 G3 Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

15

Zeitaufwand

5 Minuten

Einleitung

The guide walks through replacing a faulty motherboard. It requires removing the keyboard mount. Afterwards, it is relatively simple and requires only a Phillips head screwdriver and spudger to finish removal.

  1. kTLULoYvMWqxSApe
    kTLULoYvMWqxSApe
    3SOKsBJG3UuYRUqV

    • Flip the laptop upside down so that the lid lies flat on the table.

    • Remove the nine 6mm Phillips #00 screws that line the border.

  2. IRvkHp1aoqI5CyxA
    IRvkHp1aoqI5CyxA
    aKVyGerKYkgCL4vS

    • Remove the two rubber feet closest to the hinge using tweezers.

    • Remove the two 6mm Phillips #00 screws revealed under these rubber feet.

    • The rubber feet may tear while removal; preventing this can be difficult, but it won’t harm the laptop. If desired, replace these rubber feet during reassembly.

  3. LwgQFOUvVTgHQmfb

    • Flip the laptop so it is in the upright position.

    • Open the lid.

    • Unsnap the keyboard mount along the border of the laptop using a plastic opening tool.

    • This may require more force than expected. Hearing loud clicks as the plastic opening tool slides along the seam is normal.

  4. OyWy1LvdO12ZS4Ai
    OyWy1LvdO12ZS4Ai
    EETTmIjp6aXyiWw4
    w3kqSSplRh5kIxZi

    • Tilt the keyboard mount up.

    • Use a spudger to flip up the two ZIF connector retaining flaps for the ribbon cables that connect the keyboard mount to the motherboard.

    • Gently remove both ribbon cables.

  5. LFTxR4CXnvnHvpou

    • Lift the keyboard mount out of the laptop.

  6. FI5DYHHhufZ63GYA

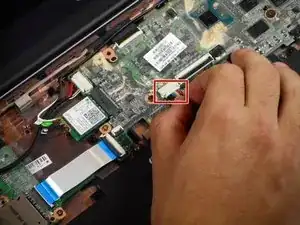

    • Gently pull the battery’s rainbow-colored, bundled cable out of its socket.

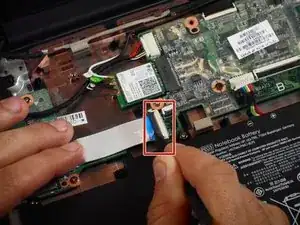

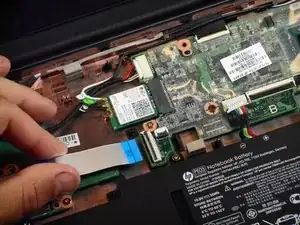

  7. 4IrREqXZkxQomKVy
    4IrREqXZkxQomKVy
    nGlNZAaGdtuBOUys

    • Use a spudger to lift the small ZIF retaining flap for the ribbon cable that connects the SD card reader to the motherboard.

    • Gently pull the cable out of its socket.

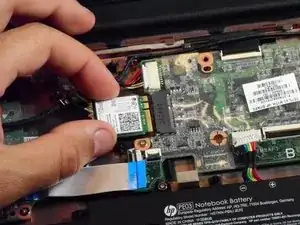

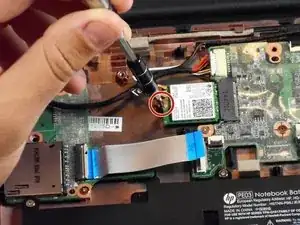

  8. MQFNWWJWuu2tCSXE
    MQFNWWJWuu2tCSXE
    d3hKnGSu2WFXdHdP

    • Remove the 2 mm Phillips #00 screw that holds the Wi-Fi module in place.

    • Slide the Wi-Fi module out of the motherboard.

    • If the black and white cables come off of the Wi-Fi module, remember to reattach them during reassembly by matching the number on the wire to the number on the module.

  9. MgkwyEKgUVAWpl5A

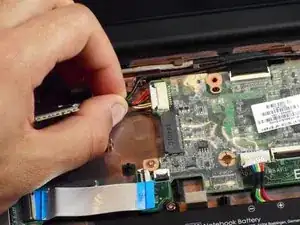

    • Gently pull the bundled cable that connects the charging port to the motherboard out of its connector on the motherboard.

  10. PpCVoNigrLtsGhsa
    PpCVoNigrLtsGhsa
    qrQUdGtIYvyMQyTF

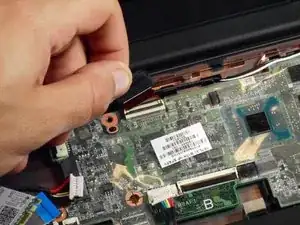

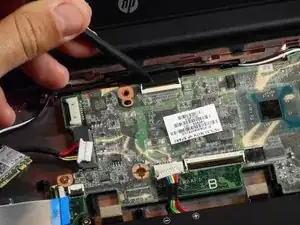

    • Use a spudger to lift the small ZIF retaining flip for the ribbon cable that connects the display to the motherboard.

    • Gently pull the cable out of its socket.

    • This cable comes out of the left side of the display’s hinge.

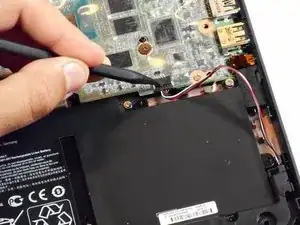

  11. R4NACBnpFFxnZnCr

    • Use a spudger to remove the slide-out connector from its socket.

    • Do not attempt to remove this connector by pulling on the cables, as this may cause damage.

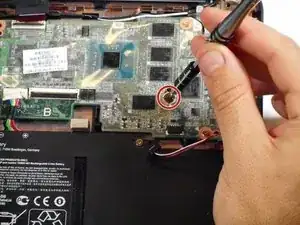

  12. LmRCsq4CQobfxpB6

    • Remove the center-right Phillips #1 3mm screw.

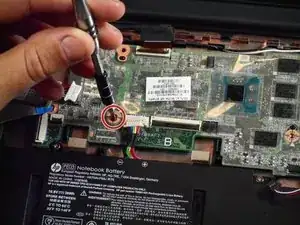

  13. D2Hxw4usSqI6t2SN

    • Remove the center-left Phillips #00 4mm screw.

  14. TqXwBJcFEtUkDZQD

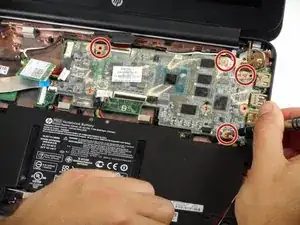

    • Remove the four perimeter Phillips #00 6mm screws.

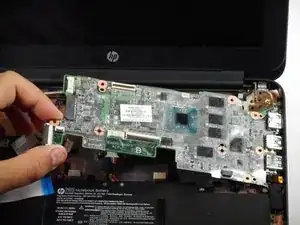

  15. 3mOE2SncJHg4LeVk

    • Gently slide the motherboard to the left and away from the external ports on the right and then pull it up and out of the laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.
