Einleitung

The motherboard is the electronic circuit board of which all other components are connected to. A broken motherboard is a broken computer.

  1. y4STgEJReXX1YBDQ

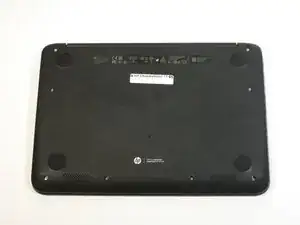

    • Position the closed Chromebook with the rubber pads are facing up.

  2. lPGtPto3Rtwlxx6o
    lPGtPto3Rtwlxx6o
    bUM3XgjHrVEkeNAW

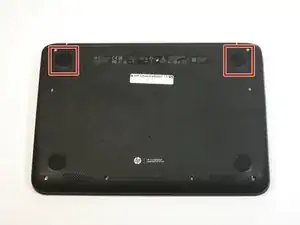

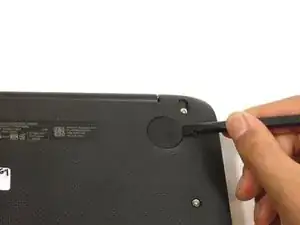

    • Slide the flat end of the spudger under the rubber pads at the upper right-hand and the upper left-hand corners.

    • Pry off the rubber pads to reveal a screw under each pad.

    • The rubber pads are attached with a strong adhesive. The force applied may damage the pads.

  3. LdypdNt43J5XtHOW
    LdypdNt43J5XtHOW
    wMBDuQiWxKBDXkZM

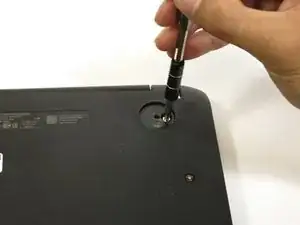

    • Remove the eleven 6mm Phillips #1 screws.

    really good instructions by the way you should probably sponsor mr smedbergs kalsonger

    Halleluja Yacob -

  4. jyqn1KficwnQY4NY

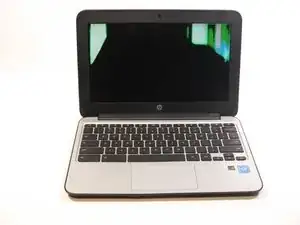

    • Flip over the Chromebook and open it.

  5. VwHGpggUUR1rpePE
    VwHGpggUUR1rpePE
    2tABDtXlIcRTRNOa

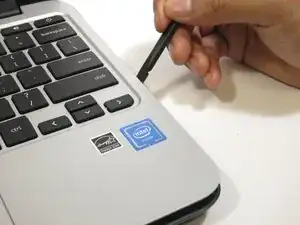

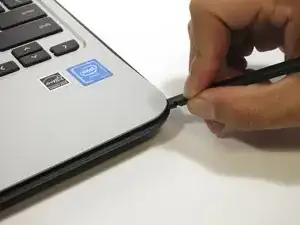

    • Insert the flat end of the spudger between the bottom body of the Chromebook and keyboard body.

    • Slide the spudger along the gap, applying downward pressure to separate the two components.

    • You should hear popping sounds as you slide the spudger along the edge.

    • If the spudger gets stuck while sliding, simply slide the spudger back for a bit, and continue sliding forward.

  6. LYc2kmowxhg4uB1w

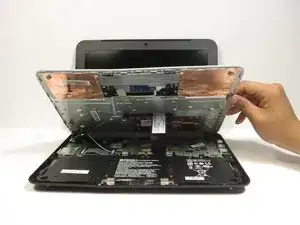

    • Lift the bottom of the keyboard assembly to reveal the internal components of the device.

    thanks — instyrtuctions clear enough for me to adapt to my Chromebook HP 11” wityh different batytery shape -0- battery was dead but uit worked when plugged in - so I have a battery on order - thanks to all!

    alan -

  7. K1w2BeNq2vJ4eN5h
    K1w2BeNq2vJ4eN5h
    c2mNw43YPkZEqoN1
    qWr21TeobXWdMlgC

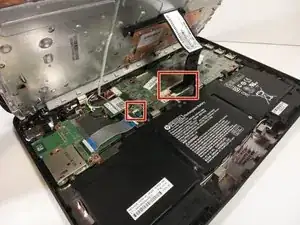

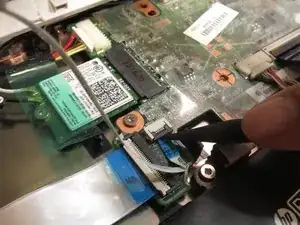

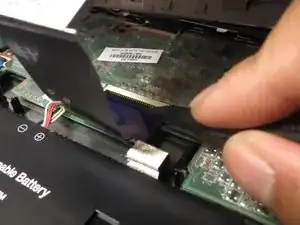

    • Use the pointed end of the spudger to flip up the black tabs on the two ZIF connectors located on the motherboard.

    • Disconnect the ribbon cables from the motherboard by gently sliding them out of their sockets.

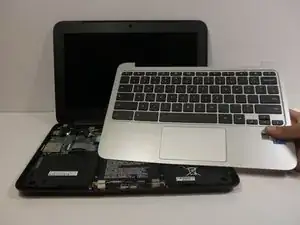

  8. 2lOR1CqfEGJFiE3m
    • Remove the keyboard assembly by lifting it off the laptop base.

  9. I1LBTaK3geovaHPr
    I1LBTaK3geovaHPr
    O6y5OvQAABTGAQcC

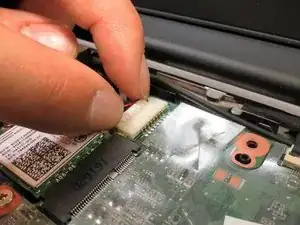

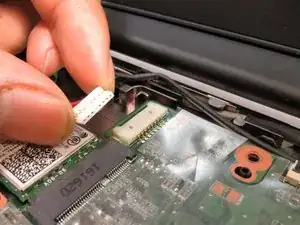

    • Remove the cable at the top left of the motherboard by grabbing the male connector and applying force in the direction of the wires away from the motherboard.

    • Do not pull on the wires to apply more force. Instead, gently wiggle the connector until it slides out.

  10. EpBNXtVPcX3IE3as
    EpBNXtVPcX3IE3as
    pYdDBPvU2CF6IdIZ

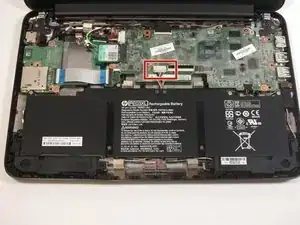

    • Disconnect the battery wires from the motherboard by applying pressure on the male connector away from the motherboard.

    • Do not pull on the wires to apply more force. Instead, gently wiggle the connector until it slides out.

  11. JARP2jVNLa2SJDCe
    JARP2jVNLa2SJDCe
    gNYBPnPPVMnIpQaB

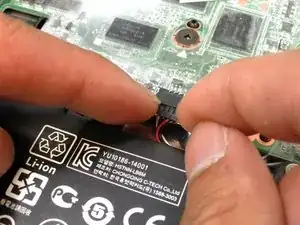

    • Disconnect the wire bundle on the bottom right of the motherboard by pulling the black male connector away from its socket on the motherboard.

    • Do not pull on the wires to apply more force. Instead, gently wiggle the connector until it slides out.

  12. VNIIcJ5QhK4JPKQE
    VNIIcJ5QhK4JPKQE
    OYnkSruNaRmOLfKd

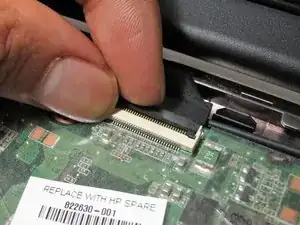

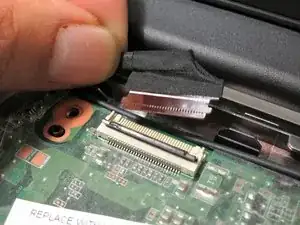

    • Use a fingernail or a spudger to flip up the black tab on the zero insertion force connector located at the top of the motherboard.

    • Remove the cable by pulling away from the motherboard.

  13. hJjLLjCDqpDW1uBG
    hJjLLjCDqpDW1uBG
    vTjf1ASfaCjOUZr2

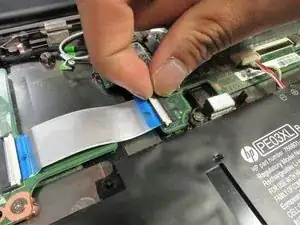

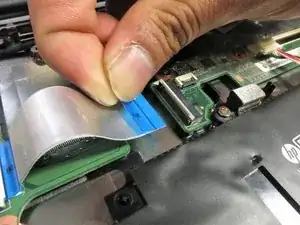

    • Use a fingernail or a spudger to flip up the white tab on the zero insertion force connector on the bottom left of the motherboard.

    • Remove the cable by pulling away from the motherboard.

  14. tOIdICyhAQRCllS3

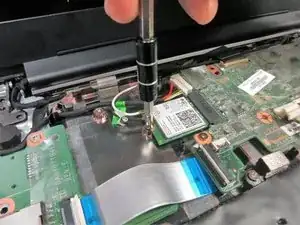

    • Remove the 4 mm Phillips #1 screw on the Wi-Fi card.

  15. MeZOw2J5uSGeJVBi
    MeZOw2J5uSGeJVBi
    1A6co43lKyBBVqgc

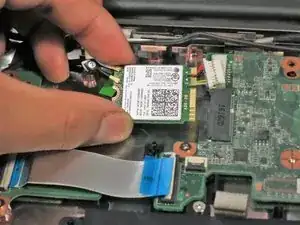

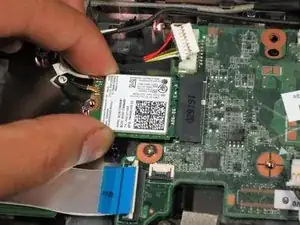

    • Slide the Wi-Fi card away from the motherboard.

  16. cK2lLc3C2g4vFh5P
    cK2lLc3C2g4vFh5P
    wEiklN2omkgXQOAA

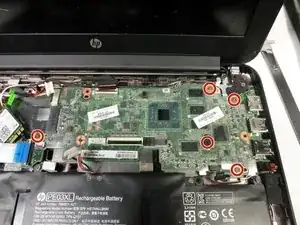

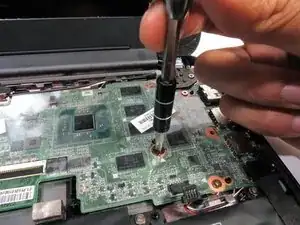

    • Remove the five 4 mm Phillips #1 screws from the motherboard.

    • One of these screws is black, the rest are silver.

  17. RuhJkwdFeCW1oIHt
    RuhJkwdFeCW1oIHt
    NvQs3WGosZ3iMNoM
    R2FFZU6FAOT33MMf

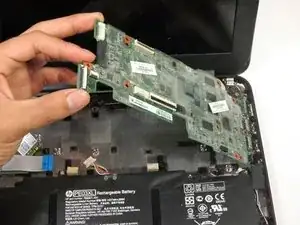

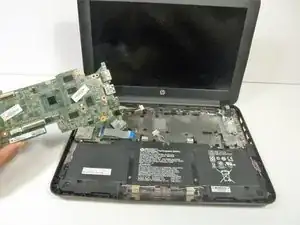

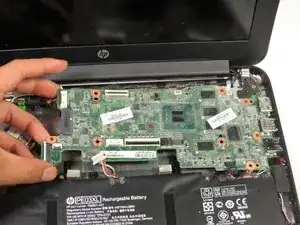

    • Lift the left edge up and away from the base of the laptop.

    • Remove the motherboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
