HP Chromebook 11 G4 SD Card Reader Replacement

Position the closed Chromebook with the rubber pads are facing up.

Slide the flat end of the spudger under the rubber pads at the upper right-hand and the upper left-hand corners.

Pry off the rubber pads to reveal a screw under each pad.

Remove the eleven 6mm Phillips #1 screws.

Flip over the Chromebook and open it.

Insert the flat end of the spudger between the bottom body of the Chromebook and keyboard body.

Slide the spudger along the gap, applying downward pressure to separate the two components.

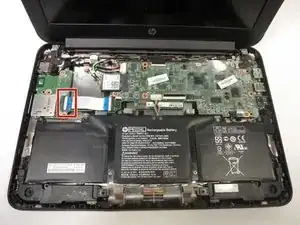

Lift the bottom of the keyboard assembly to reveal the internal components of the device.

Use the pointed end of the spudger to flip up the black tabs on the two ZIF connectors located on the motherboard.

Disconnect the ribbon cables from the motherboard by gently sliding them out of their sockets.

Remove the keyboard assembly by lifting it off the laptop base.

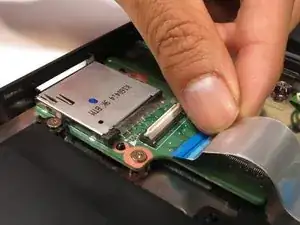

Flip up the flap on the ZIP connector with your finger.

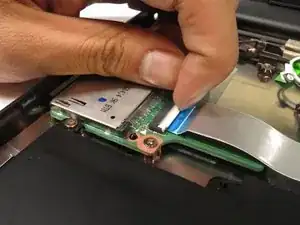

Gently pull out the ribbon cable.

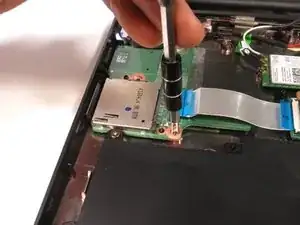

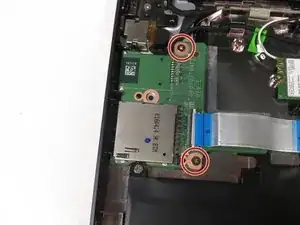

Remove the two 4 mm Phillips #1 screws.

Lift the ribbon cable back and out of the way.

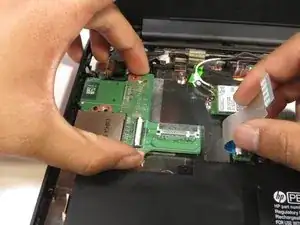

Pull out the SD card reader.
