HP Chromebook 11 G6 EE Keyboard Assembly Replacement

Geschrieben von: Isaac
  • Kommentare: 0
HP Chromebook 11 G6 EE Keyboard Assembly Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

Keine Schätzung

Einleitung

  1. SjItpQESW2DtVToS

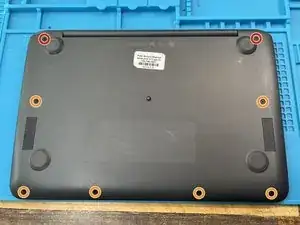

    • Remove the screws from the bottom case.

    • Two M2.5x8 PH1 screws.

    • Six M2.5x6 PH1 screws.

  2. 2DBVp1DNsEthkthO
    2DBVp1DNsEthkthO
    aCjYmlWcdyinUKeH

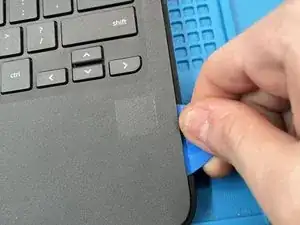

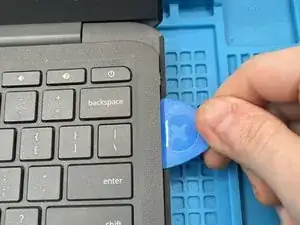

    • Use a plastic opening pick to release the clips that secure the keyboard.

    • Avoid too much prying force. If you pry too hard, you'll break your pick. The trick is to get the pick in just a little bit, and then run it along the edge of the device.

    • DO NOT use metal tools for this step.

  3. CxLX4XumR2b3h3Al

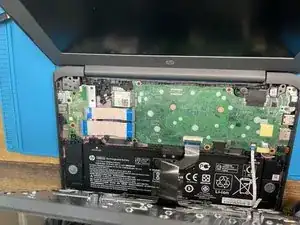

    • Lift up the keyboard part way, being careful to not put stress on the keyboard and touchpad ribbon cables.

  4. GMUadFGwK1djFbQt
    GMUadFGwK1djFbQt
    pVYQAtkEtCdVeNJM
    AR2DBAoarNdrCfWv

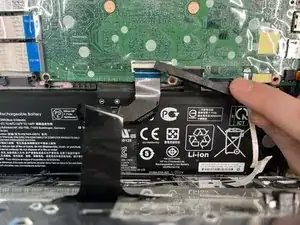

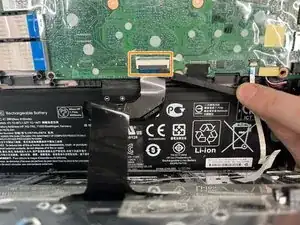

    • Lift up the keyboard part way, being careful to not put stress on the keyboard and touchpad ribbon cables.

    • Disconnect the keyboard ZIF connector

  5. ORiY3KYnxiynOLXn
    ORiY3KYnxiynOLXn
    Tu5ZxBR3JeS3xJxf

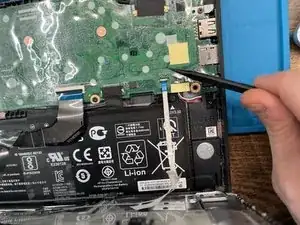

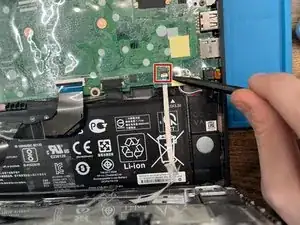

    • Disconnect touchpad ZIF connector.

    • Now you can remove the keyboard assembly completely.

    • If your replacement keyboard came with touchpad and cable, you can start reassembling the computer now. If you need to retrieve the touchpad from the old keyboard, keep reading.

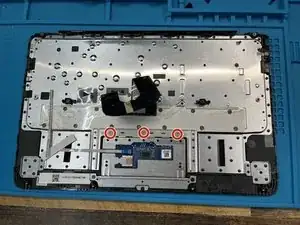

  7. CTDPmh6Zjp2jyt63

    • Lift up the plastic guard covering the three PH0 M2x2 screws and remove them.

    • Lift the touchpad out and place into new keyboard.

    • Be sure to evenly tighten the touchpad screws during reinstallation. Even a small variance can lead to a touchpad that feels "off".

Abschluss

To reassemble your device, follow these instructions in reverse order.
