HP Chromebook 11 G6 EE Screen Replacement

Geschrieben von: Korey Brand
  • Kommentare: 1
HP Chromebook 11 G6 EE Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

30 Minuten

Einleitung

This guide will show you how to replace a broken or defective screen on a Chromebook 11 G6 EE.

  1. R5wncKbaPG6CZmvJ

    • Use a plastic pick or spudger around the edges of the bezel to pop the clips loose.

    • If the LCD is already damaged and you're going to replace it, you can use the pick to break the adhesive along the inside edge of the bezel. If you want to preserve the LCD, use a heat gun to soften the adhesive before removing the bezel.

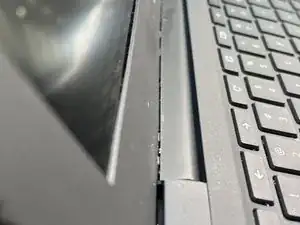

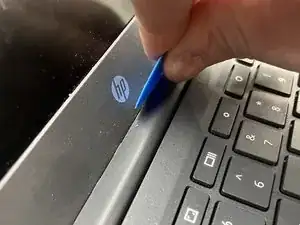

  2. JNre2KFWM5mpbYlL
    JNre2KFWM5mpbYlL
    NHVIPT3ZF5OBakBn

    • Push down on the seem between the hinge cover and bezel to release the clips holding the two together.

    • When successful, there will be a small seam visible, as shown in the second photo.

    This actually breaks the hinge cover. The hinge cover is plastic welded to the flat screen bezel and not meant to be detached from it. You can remove it as one whole piece instead.

    Joshua Weise -

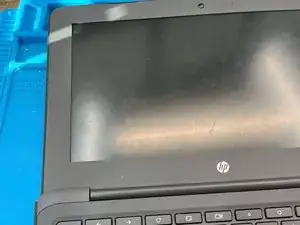

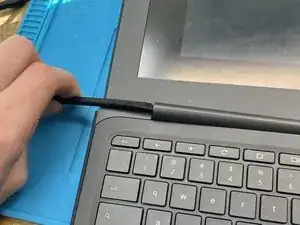

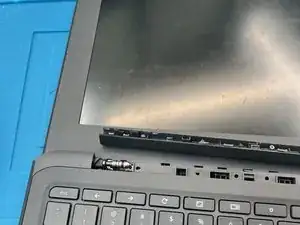

  3. 2vGdJ3ptFUGbWwIq
    2vGdJ3ptFUGbWwIq
    lCQItTwNTChoYVRX
    ETjhQHNGCHcQImES

    • Open the computer to 180º to make it easier to remove the hinge cover

    • Insert a spudger into one side and pry up to remove the cover

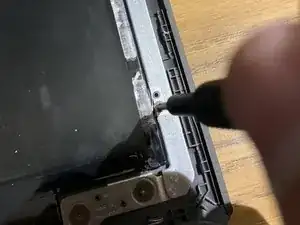

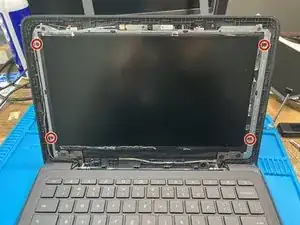

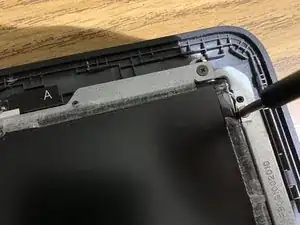

  4. sfJ6DUU6BgaIBsDh
    sfJ6DUU6BgaIBsDh
    omdHIME43bQVQGxE
    y5ETwpv23qCEel5w

    • Remove the four M2.5x2 PH#0 screws holding the LCD in the display.

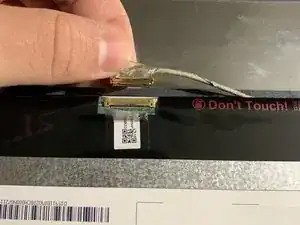

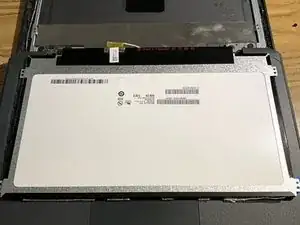

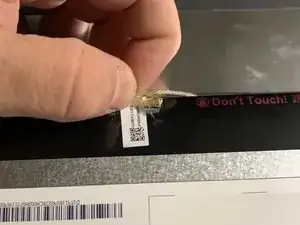

  5. 2mjDrJPfQMDupTew
    2mjDrJPfQMDupTew
    lHoBYuhBVY2qaGff
    HWnDuONgUY1ZPqWV

    • Flip the screen over onto the keyboard.

    • Peel the sticker holding the screen connector in place.

    • The sticker is difficult to remove. I use a spudger to get it started and grab it with pliers or tweezers to pull it up.

    • Pull the connector loose. It should pop out very easily

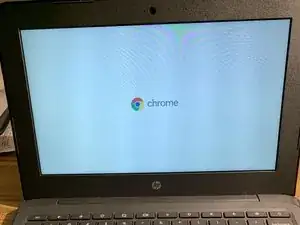

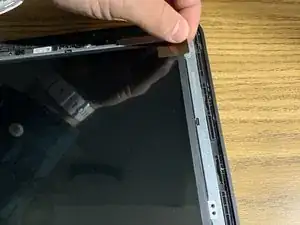

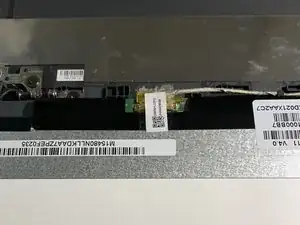

  6. fNN1GQAokGrPMD2e
    fNN1GQAokGrPMD2e
    aRt3iIXwnAAy2GPf
    G3ASyZ6cPCdUNNJr

    • Slide the connector into the socket on the new screen.

    • The new screens do not come with the sticker. I recommend pulling the sticker off of the old screen and using it to hold the connector in place for the new screen.

    • Remove the protective film from the new screen and re-attach the screen with the screws.

    • Snap the plastic frame back into place. It should snap back in very easily but be careful not to put extra pressure on the screen.

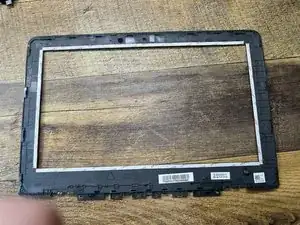

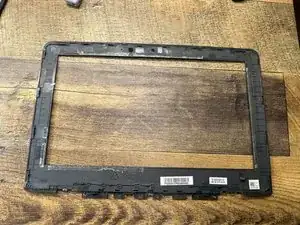

  7. FhWSt4nFVDPIEMWQ
    FhWSt4nFVDPIEMWQ
    yYWVAGCIZZJlRM1i

    • Before reattaching the bezel, we have to apply new adhesive tape to the inside edge in place of the old adhesive. Before that, we have to remove the old adhesive

    • The easiest way is to use the flat end of a fresh spudger to scrape the adhesive away. If it's being stubborn, a quick few seconds with a heat gun makes things a whole lot easier.

    • Be careful to not warp the bezel with excessive heat.

    • Add new tape

Abschluss

Check the screen to make sure it is functioning properly and be sure to check the camera to make sure the connection did not come loose during repair.
