HP Chromebook 11 G6 EE Speakers Replacement

Geschrieben von: Tyler Furches
  • Kommentare: 0
HP Chromebook 11 G6 EE Speakers Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

9 Minuten

Einleitung

This guide assists in the replacement of the two internal speaker on an HP Chromebook 11 G6 EE.

  1. SjItpQESW2DtVToS

    • Remove the screws from the bottom case.

    • Two M2.5x8 PH1 screws.

    • Six M2.5x6 PH1 screws.

  2. 2DBVp1DNsEthkthO
    2DBVp1DNsEthkthO
    aCjYmlWcdyinUKeH

    • Use a plastic opening pick to release the clips that secure the keyboard.

    • Avoid too much prying force. If you pry too hard, you'll break your pick. The trick is to get the pick in just a little bit, and then run it along the edge of the device.

    • DO NOT use metal tools for this step.

  3. CxLX4XumR2b3h3Al

    • Lift up the keyboard part way, being careful to not put stress on the keyboard and touchpad ribbon cables.

  4. GMUadFGwK1djFbQt
    GMUadFGwK1djFbQt
    pVYQAtkEtCdVeNJM
    AR2DBAoarNdrCfWv

    • Lift up the keyboard part way, being careful to not put stress on the keyboard and touchpad ribbon cables.

    • Disconnect the keyboard ZIF connector

  5. ORiY3KYnxiynOLXn
    ORiY3KYnxiynOLXn
    Tu5ZxBR3JeS3xJxf

    • Disconnect touchpad ZIF connector.

    • Now you can remove the keyboard assembly completely.

    • If your replacement keyboard came with touchpad and cable, you can start reassembling the computer now. If you need to retrieve the touchpad from the old keyboard, keep reading.

  7. CTDPmh6Zjp2jyt63

    • Lift up the plastic guard covering the three PH0 M2x2 screws and remove them.

    • Lift the touchpad out and place into new keyboard.

    • Be sure to evenly tighten the touchpad screws during reinstallation. Even a small variance can lead to a touchpad that feels "off".

  8. L6osPyeMFMFtvcgA
    L6osPyeMFMFtvcgA
    FyFSotwWYCCungW2

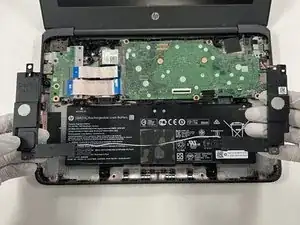

    • Use a Phillips #1 screwdriver to remove the two 7 mm screws from both sides of each speaker unit.

    • Lift the speakers from the laptop frame.

Abschluss

To reassemble your device, follow these instructions in reverse order. Taking the battery out is optional but we have included it as a reference.
