Einleitung
This guide will show you how to replace the HP Chromebook 11A G8 EE's Wi-Fi card. The Wi-Fi card is built into the computer allowing your laptop to connect to wireless internet. When your device is unable to connect to wireless internet, it means the Wi-Fi card of the device may need to be replaced.
Werkzeuge
Ersatzteile
-
-
Flip the device over and open the lid.
-
Use a plastic opening tool to pry the keyboard assembly away from the bottom case, prying around the perimeter until it fully separates.
-
Lift the keyboard assembly from the laptop towards you, away from the screen.
-
-
-
Lift the keyboard ribbon lock bar and use tweezers to disconnect the keyboard ribbon from the motherboard.
-
Lift the lock bar and use tweezers to remove the touchpad ribbon.
-
Remove the keyboard.
-
-
-
Peel back clear sheet covering Wi-Fi card.
-

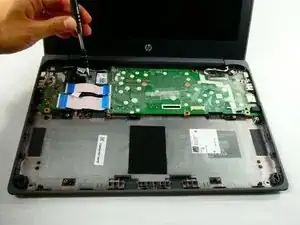

Unscrew the single screw securing Wi-Fi card/cover using a Phillips #1 screwdriver.
-
Carefully slide the Wi-Fi card out.
-
To reassemble your device, follow these instructions in reverse order.
