HP Chromebook 11-2210nr Keyboard Replacement

Geschrieben von: Bridget Rosales
  • Kommentare: 0
HP Chromebook 11-2210nr Keyboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

Keine Schätzung

Einleitung

In this guide you will be able to perform the process of removing and replacing your faulty or broken keyboard. Once the removal of the keyboard is accomplished, you will be able to access other components from your HP Chromebook 11-2210nr.

  1. nHmMjk6ZAcBEr56r
    nHmMjk6ZAcBEr56r
    kVXPjEmuLBlMWdjD

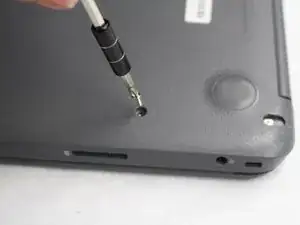

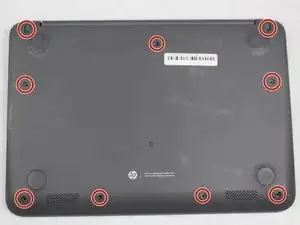

    • Position your closed laptop face down to remove the 9 visible 6mm screws using the Phillips #1 screwdriver.

  2. xVjyOJNJO6VXMIgJ
    xVjyOJNJO6VXMIgJ
    XETDEjDghro1cJbt
    bAXnG6Tr1SOEYjiy

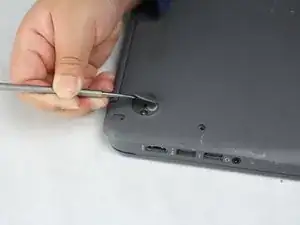

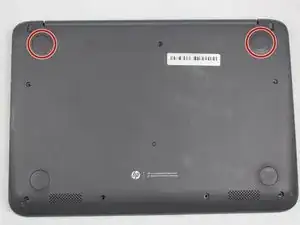

    • Using the metal spudger, remove the two rubber pads that are closer to the hinge of the laptop.

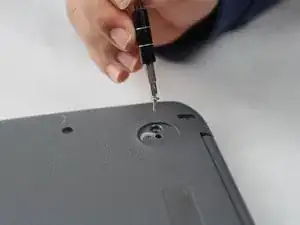

    • Remove the two additional 6mm screws located beneath the rubber pads using the Phillips #1 screwdriver.

    • The two bottom rubber pads do not contain screws, but you may check if you wish to be sure.

  3. GEsBFgoasMWXtAXb
    GEsBFgoasMWXtAXb
    pVaECnQbqwdeZn3E
    tIhmBIS26XWX44sQ

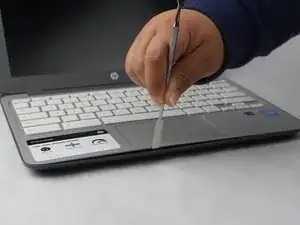

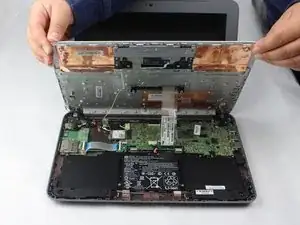

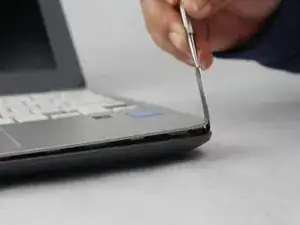

    • Turn the Laptop over and with the metal spudger start to run it along the plastic seam to pry it off.

    • You will hear popping sounds when you are sliding the spudger along the device.

    • For an easier removal, start from the sides and work your way in to the corners.

  4. 4FDavAFSqajdBcFB
    4FDavAFSqajdBcFB
    eDVMcFZEOglySNZi
    wwSFPESQwBS1H4cO

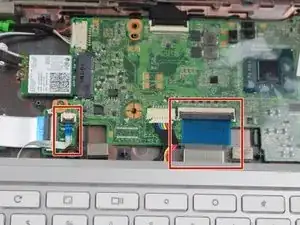

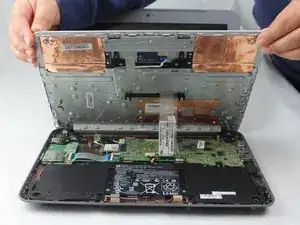

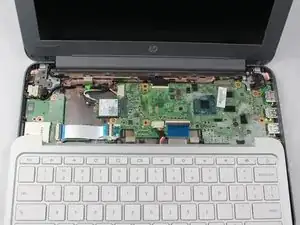

    • Carefully lift off the keyboard and gently place it towards you until the two ribbon wires become visible and place the keyboard down.

    • Locate where the two ribbon wires are being held in place by two chips.

    • This does not disconnect the keyboard from the laptop just yet.

  5. M3dRP3p1j5AvLEX2
    M3dRP3p1j5AvLEX2
    sFIYllyTuEpRVtHt
    kpDRsOr3AyqmNFTR

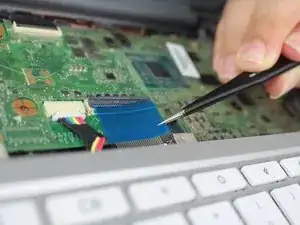

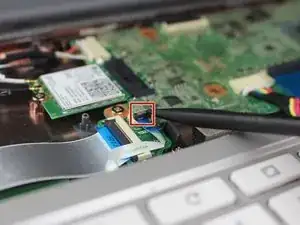

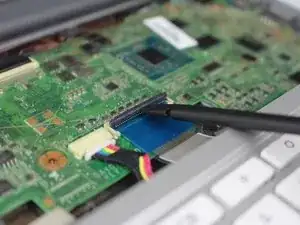

    • Using the nylon spudger, lift the plastic clasps holding the two ribbon wires up to properly disconnect the wires.

    • It is recommended to use the nylon spudger for this step. Any metal can damage your motherboard.

    • This step completely disconnects the keyboard to allow safe removal and replacement.

Abschluss

To reassemble your device, follow these instructions in reverse order.
