This guide will walk you through easy steps in order to change the keyboard for your HP Chromebook 11-v002dx.
You may want to try cleaning the area underneath your keys and keyboard before replacing your board entirely, as dust can occasionally accumulate and prevent the keyboard from functioning.
Werkzeuge
-
-

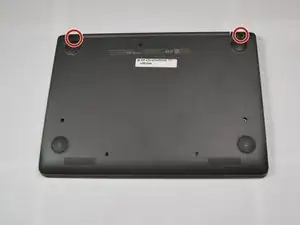

Place your laptop bottom up on your work space.
-

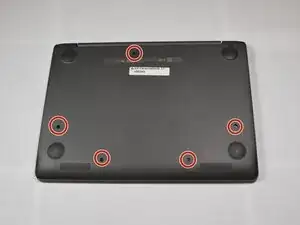

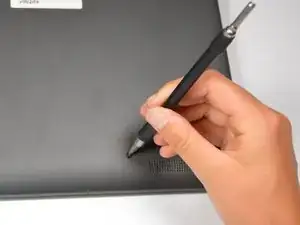

Use a Phillips #0 screwdriver to remove the eleven 0.2 mm screws, including the six from underneath the adhesives.
-
-
-

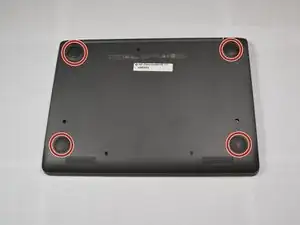

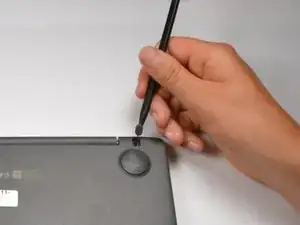

Using a sharp tool, remove the six adhesives from the bottom of your laptop to expose the screwheads underneath. Two of the pads are small and four are larger.
-
-
-

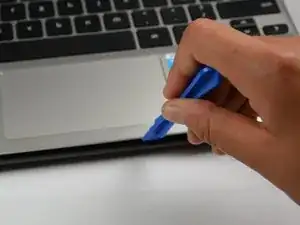

Use a plastic opening tool to loosen the keyboard face from the device.
-

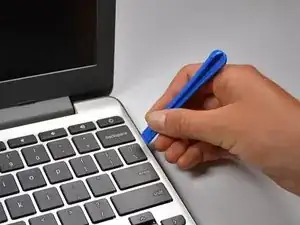

Start prying at one end of the laptop and slowly work your way around so as not to break the keyboard.
-
-
-

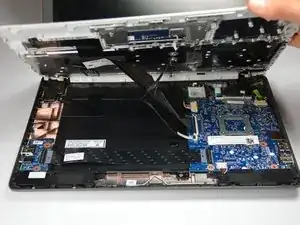

Lift the keyboard so that the inner workings of the laptop are exposed.
-

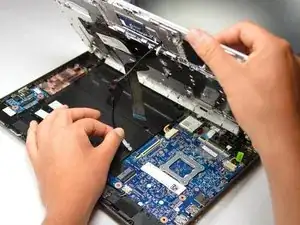

Gently pull each of the two ribbons connecting the keyboard to the device so that neither ribbon is still connected to the device, only to the keyboard.
-
To reassemble your device, follow these instructions in reverse order.
