HP Chromebook 11-v011dx Motherboard Replacement

Geschrieben von: Kyle DeMello
  • Kommentare: 0
HP Chromebook 11-v011dx Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

22

Zeitaufwand

40 Minuten

Einleitung

Through over-heating or damaging the laptop by dropping it, the motherboard will not be able to function. This guide will help replace it.

  1. OyN6UkEpUvBHjXaH
    OyN6UkEpUvBHjXaH
    iRZK1Frc4eUldwxQ
    6xmBtXVTCqSPw1IL

    • Wedge the spudger between one of the black rubber caps on each of the four corners on the bottom of the HP Chromebook 11-v011dx.

    • Lift up the black rubber cap until it is completely removed.

    • Repeat this until all four of the black rubber caps are removed.

  2. LtyRSaAIguaiGZwJ
    LtyRSaAIguaiGZwJ
    DJOtmKcwGmGRL2c5

    • Locate the two smaller black rubber caps on the top corners of the HP ChromeBook 11-v011dx. Wedge the spudger between one of them.

    • Lift up the small black rubber cap until it is completely off.

    • Repeat this step one more time to remove the other small black rubber cap on the other side.

  3. Vj4nnDASXAJaqNZh
    Vj4nnDASXAJaqNZh
    RZoX5uUOrQDRbJQ3

    • Locate the eleven screws on the bottom the HP ChromeBook. Six are located under the larger black rubber caps and the others are in different locations.

    • Use a Phillips #0 screwdriver to remove eleven 1.3mm screws.

  4. 5WKSJNIUdMvRylYw
    5WKSJNIUdMvRylYw
    cXvWanB6pCqWRDRS
    1KTh6YlTQRJOFVA5

    • Make sure to do steps 1-3 or it will be impossible to lift up the key board and you may also do damage to the hardware.

    • Wedge the spudger between the key board and the bottom panel, carefully go around the keyboards edges gently.

    • Lift the spudger a little in the front of the keyboard until the key board lifts up.

    • With your hands, slowly and carefully lift the key board up.

  5. BcZMGkTgxoA2BIOy

    • Locate the black tab that holds a wire in place that keeps the keyboard connected to the mother board.

    • Slowly unplug this wire that connects to the key board.

  6. GasxM3pEPmZRN3db
    GasxM3pEPmZRN3db
    vhBrseIVKgojj5iS

    • Remove three of the 1.3mm screws that keep the battery in place with a Phillips #0 screwdriver.

  7. bcq3ruN3v4DSLkyA

    • Make sure to hold the white tab portion of the plug and not the wire itself. If you unplug it by holding the wires, you may rip out the wires.

    • Slowly unplug the wire that connects the battery to the motherboard with your hands.

  8. KLEPHMIKoIotXDYb

    • There is a thick black wire strip that is going across the battery for a different part of the HP ChromeBook 11-v011dx. Be mindful when removing the motherboard so you do not damage this strip.

    • Remove the battery carefully using your hands.

  9. LoQk5c4C6Y1RwvYI
    LoQk5c4C6Y1RwvYI
    PIs4u1eSiYNcOhiV

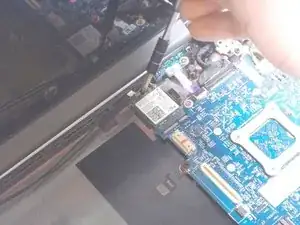

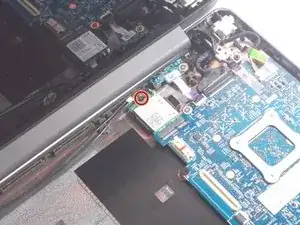

    • Use a Phillips #0 screwdriver to remove the 1.3 mm screw that holds the wireless card.

  10. yFBOL5AcGk1oy6DI
    yFBOL5AcGk1oy6DI
    l6EAwhmYqfWNsDMR

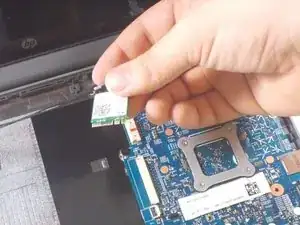

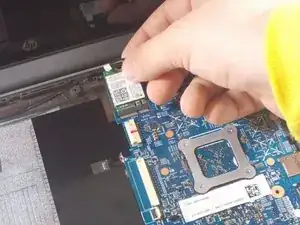

    • Remove the wireless card from the motherboard with your own hand.

  11. lhmTD4tSqxMbnk3W
    lhmTD4tSqxMbnk3W
    oukX1XyJCAlnJmUe

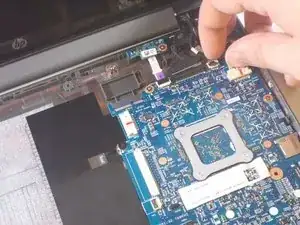

    • Find the wire that connects the screen to the motherboard.

    • Lift black tab that holds the wire in place.

    • Remove the wire.

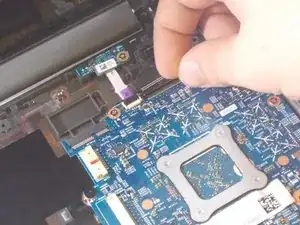

  12. c3rRJSCPjrNGqjJf
    c3rRJSCPjrNGqjJf
    fyWMHXDL2ufJkutg

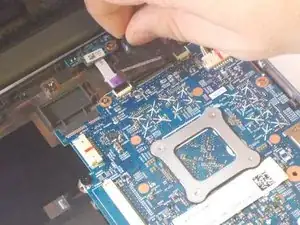

    • Find the display cable that connects the screen to the motherboard.

    • Lift black tab that holds the display cable in place.

    • Remove display cable.

  13. cgrZZ6lKQOl643ZK
    cgrZZ6lKQOl643ZK
    mMHVvEX2q1CoEVkV
    oXkZ2UOO4Dkn22ey

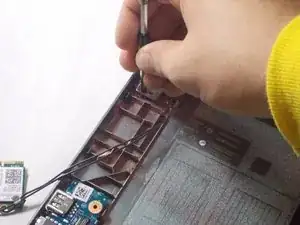

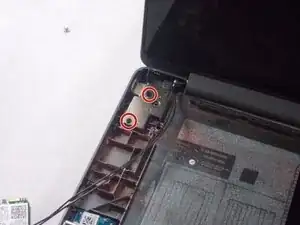

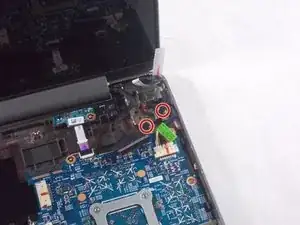

    • Use a Phillips #0 screwdriver to remove the four 1.3mm screws that hold the screen in place.

    • Two screws are on the left of the laptop and two are on the right of the laptop.

  14. 1cPhjMCPibeFiaJh
    1cPhjMCPibeFiaJh
    EisebX1USQ4JvGa2

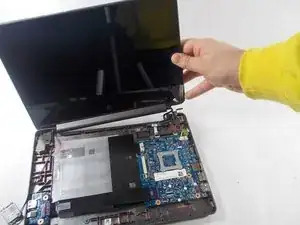

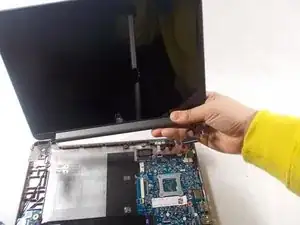

    • Be careful when removing the screen so it doesn't get caught on any wires.

    • Remove the screen from the laptop.

  15. ovKvXRbgUh53uaPp
    ovKvXRbgUh53uaPp
    twtBPhxuyBunl13l

    • Use a Phillips #0 screwdriver to remove the one 1.3mm screw that connects the speakers and the motherboard together.

  16. lrxxUJA4DRfwQMIS

    • Make sure to hold the white part of the plug and not the wire. If unplugged by holding the wires, it can rip out wires.

    • Slowly and cautiously unplug the wire that connects the speakers to the motherboard with your hands.

  17. VkHTfhDgO5UqQ5eo
    VkHTfhDgO5UqQ5eo
    OgXUlNaEXoIdtNwI

    • Be careful with the wire between both end of the speakers. It's between metal parts and can get caught.

    • Slowly remove both ends of the speakers with your hands.

  18. dpQxktS2TwicLHNp
    dpQxktS2TwicLHNp
    hFL2EpyfvCScneFx

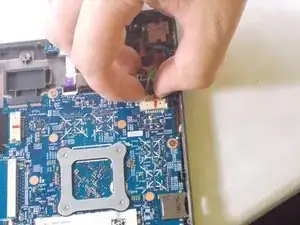

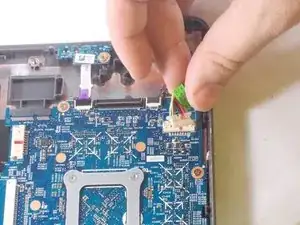

    • Please hold the white tab and not the wires or it may rip the wires out.

    • Remove these wires that connect the motherboard to the power port.

  19. NWZLVAfLXftsIqZB
    NWZLVAfLXftsIqZB
    cBgDjyGnVbvAWVKU

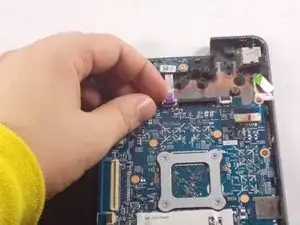

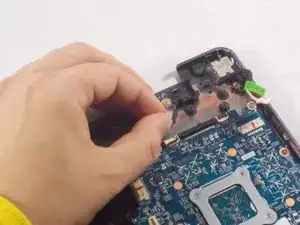

    • Locate the wire at the top of the motherboard.

    • Lift up the black tab that holds the wire in place.

    • Remove the wire.

  20. oqLnAQBJuLEWRhBY
    oqLnAQBJuLEWRhBY
    hFu6Uo23umdQPW43

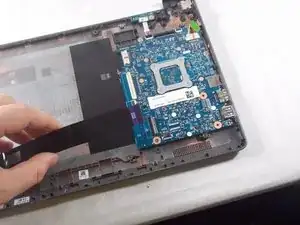

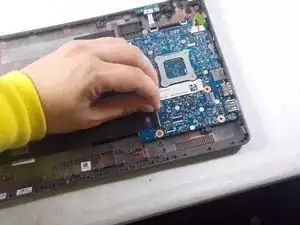

    • Locate the wire that connects the USB port and the motherboard.

    • Lift up the black tap that holds the wire in place.

    • Remove the wire.

  21. vXNLeNuBdk1AZwca
    vXNLeNuBdk1AZwca
    aauNYbL1agIapEsQ
    RiluXATZ1NsNvhEk

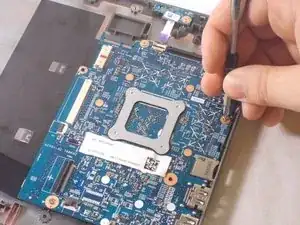

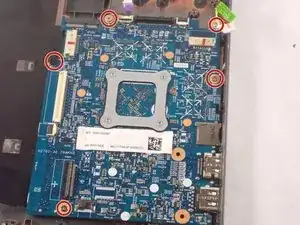

    • Use a Phillips #0 screwdriver to remove five 1.3mm screws that hold the motherboard in place.

  22. TaiGRFU2SL3WaUnR
    TaiGRFU2SL3WaUnR
    I2iTqV6TSYAIqKmH

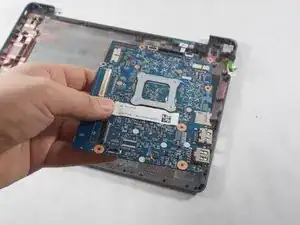

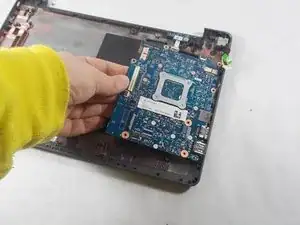

    • Remove the motherboard by hand.

Abschluss

To reassemble your device, follow these instructions in reverse order.
