Einleitung

The Motherboard Replacement Guide provides the steps required to replace the HP Chromebook 11-v019wm Motherboard. The motherboard is the brain of the computer and has an extensive list of functions. The motherboard should only be replaced after all other troubleshooting steps have been exhausted. Basic reasons to replace the motherboard on the HP Chromebook are to replace the RAM on a lagging Chromebook, if the computer fails to turn on even after replacing the battery, basic computer functions have been lost, etc.

It is important to note that replacing the motherboard will also delete the motherboard and operating system. This may require a boot disc for the Chrome Operating System and a system back up to protect important documents.

Removing the keyboard will expose the internal components of the computer. These components are electrostatic discharge (ESD) sensitive components. It is important to ensure that an anti-static wrist strap and anti-static mat are used to prevent ESD from damaging other components inside of the device. For proper use of the anti-static wrist strap, refer to iFixit’s “How to set up your Anti-static mat and wristband” Guide.

  1. x6P34Tel2X3LnOFy
    • Disconnect the power adapter from the charging port and remove all external media devices from the Chromebook.

    • Turn the Chromebook over so the bottom of the computer is facing upwards with the hinge facing away.

  2. AnxQguZH3oCSjMOT
    AnxQguZH3oCSjMOT
    NkNVFJLoHNAVBsxs
    • Remove the (4) rubber feet with the plastic spudger to reveal the screws underneath.

    • The rubber feet are secured with adhesive and may take time to remove.

  3. MCay3rwhoTd5GXGi
    MCay3rwhoTd5GXGi
    UXEFPbSFXjStiKqJ
    • Remove the (2), oval shaped, rubber screw protectors near the hinge of the Chromebook.

    • The rubber screw protectors are secured with adhesive and may take time to remove.

  4. YSMuZQfW6YfLdhfK
    YSMuZQfW6YfLdhfK
    B2UWiOYmbQyXVZVX
    • Remove the (11) 5.2 mm screws using a Phillips #00 Screwdriver.

  5. MxtFWBv2ffXwcmTx
    MxtFWBv2ffXwcmTx
    pDhPbksAJH4ByXpN
    • Place the Chromebook upright and open the screen all the way.

    • Starting towards the hinge, insert the spudger between the silver keyboard decking and the charcoal colored casing.

    • Pry upwards to release the tabs that are securing the keyboard to the casing.

    • Repeat this process around the perimeter of the keyboard to ensure all tabs are released.

    • Once all the tabs are released, gently lift the keyboard to gain access to the (2) Zero Insertion Force (ZIF) ribbon cables.

  6. OwFsolFIxSmQjdqG
    OwFsolFIxSmQjdqG
    nGgYAo5mpqYHQXSK
    uHpy1aX3EaXLZKAP
    • Using the hook on the Halberd Spudger, lift up the ZIF connector tab for the keyboard ribbon cable. They keyboard ribbon cable is the larger of the two ribbon cables.

    • The remaining steps should be completed with the anti-static wrist strap to prevent damage to electrostatic discharge (ESD) sensitive components.

  7. hLUkpaUxkPpoIbyK
    hLUkpaUxkPpoIbyK
    eBPexW5wSHilDZHK
    S2Lh1KnnWfDY6saT
    • With the ZIF connector tab in the upright position, use your fingers to gently pull the keyboard ribbon cable out of the ZIF connector.

  8. pN5TVxpASbaaXonb
    pN5TVxpASbaaXonb
    SPxZ6imQm4XaU4KD
    EmMNEKTUKTed2Vx6
    • With the hook on the Halberd Spudger, lift the ZIF connector that is holding the Touchpad ribbon cable. The Touchpad ribbon cable is the smaller of the two ribbon cables.

  9. SWnWXgoZbmQuwxqw
    SWnWXgoZbmQuwxqw
    QmlhsEkCJBD1xTry
    tHUvyxq2VIPB1WeM
    • With the ZIF connector tab in the upright position, use your fingers to gently pull the Touchpad ribbon cable out of the ZIF connector.

  10. w52bXE4pe4fOIEeS
    • With both ribbon cables disconnected, the keyboard can now be safely removed from the Chromebook.

  11. GMVqSXsiHQ1dHRbI
    GMVqSXsiHQ1dHRbI
    s6RSscS4LyAiXlAJ
    XVaANd5MSVrCOhIL
    • Using the hook on the halberd spudger, lift the external media board ZIF connector attached to the motherboard.

    • The external media ribbon cable spans across the battery and is connected to the external media board on the left, and motherboard on the right.

  12. mViBnGSHCgJ5xgWH
    mViBnGSHCgJ5xgWH
    VW5ur5fWUrAt4t4W
    kEcBfZWce4JtDNZ5
    • With the external media board ZIF connector lifted, using your fingers, gently remove the media cable from the motherboard.

  13. VQ13ZSUFP11SnWOE
    VQ13ZSUFP11SnWOE
    kSQPHClx2v3rSBNE
    cPRS5AdlmdXCFDRK
    • Using the hook on the halberd spudger lift the ZIF connector on the External Media Board.

  14. LHQpELXNMR3QmGxJ
    LHQpELXNMR3QmGxJ
    lAjlxlmNVNAgVHrn
    p3pNhIOvaHiUU2qM
    • With the ZIF connector in the upright position, use your fingers to gently remove the media cable completely from the computer assembly.

  15. GikW2qFNvEPLLvIK
    GikW2qFNvEPLLvIK
    EeXRY5vc4JJtwvLG
    Akr5JgB4oOtOj3mT
    • Use either end of the spudger to remove the battery bundled cable connector from the motherboard.

  16. waTep3OcqpxEXGuO
    waTep3OcqpxEXGuO
    fQ2DIE5PQFwP2SCb
    • Using a Phillips #00 Screwdriver, remove the two silver 3.4 mm screws from the battery.

    • Using a Phillips #00 Screwdriver, remove the black 4.8 mm screw from the battery. This screw also secures the left speaker to the casing.

  17. o1HSjIqlIVRtvajA
    o1HSjIqlIVRtvajA
    FXdKbKPhVnAjp46W
    • Gently lift the battery out of the casing.

    • The WLAN Antenna cables run through a tab in the top left corner of the battery. To avoid damaging the cable, ensure the WLAN Antenna cables are out of the way before removing the battery.

  18. UfA5MXy1TOvxMwqD
    UfA5MXy1TOvxMwqD
    bZehYuJvmkIEKaiU
    DBggKgGiNuAFmZYK
    • Using either side of the spudger, disconnect the speaker cable from the bundle connector located on the bottom of the motherboard.

  19. jemxhKXXcMoELgvy
    jemxhKXXcMoELgvy
    fFVGAKTOrEQKQKLP
    • Using a Phillips #00 screwdriver, remove the 4.8 mm screw that secures the right speaker to the Chromebook housing.

    • The 4.8mm screw securing the left speaker was removed during the removal of the Chromebook's battery.

  20. DCcWVLAeBbNgIhEO
    DCcWVLAeBbNgIhEO
    CTaJSGbDDJ3KVyXt
    2BahYHNDkoc3EnPx
    • Gently remove the right speaker from the computer assembly.

    • The cable connecting the left and right speaker is very thin and runs along a series of small clips. During removal and installation, guide the cable through these clips and avoid pulling too hard on the cable.

  21. lLXuXAZMPbLGrcLV
    lLXuXAZMPbLGrcLV
    HJqlEkEJulCiIwEm
    qIYxIEOwymheqq3H
    • Gently remove the left speaker from the computer assembly.

    • The cable connecting the left and right speaker is very thin and runs along a series of small clips. During removal and installation, guide the cable through these clips and avoid pulling too hard on the cable.

  22. wRLGtNRZkLl5YsUX
    • The left and right speakers have been successfully removed.

  23. 6TC2MpJgbDAJbMmj
    6TC2MpJgbDAJbMmj
    MO15aF2o6neWXBJK
    rfLWUtErWqLARE2P

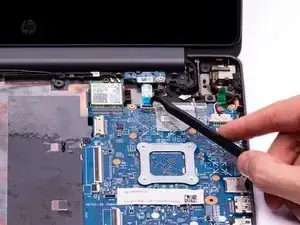

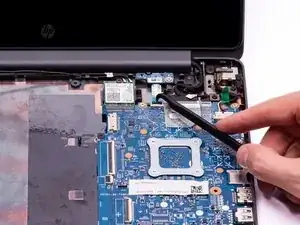

    • Using the hook on the halberd spudger, gently lift up the ZIF connector tab that connects the Hall Sensor Board ribbon cable to the Motherboard.

  24. KSGaIi6d3UcpDoOM
    KSGaIi6d3UcpDoOM
    oLr1hAlxiBfXki1N
    6HsXUY2rZKJkfQis

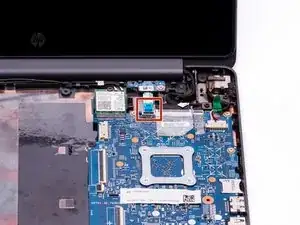

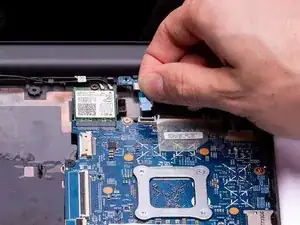

    • With the ZIF connector tab in the upright position, gently pinch the blue lifting tab and remove the Hall Sensor ribbon cable from the ZIF connector.

  25. MCZ1n5rkyA5SAkDn
    MCZ1n5rkyA5SAkDn
    iMDsU5DoMceN1yQg
    tYiPDYNQMkaisRAl

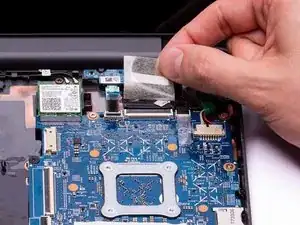

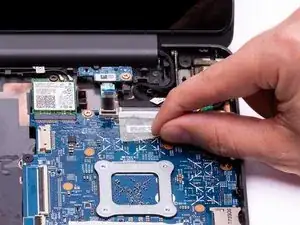

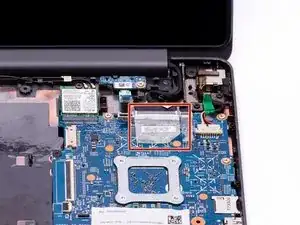

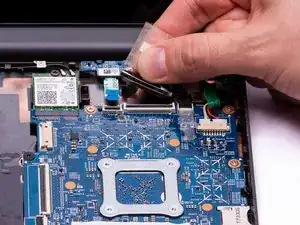

    • Using your fingers or the hook on the halberd spudger, gently lift up the clear plastic sticker to reveal the ZIF connector securing the LVDS Touch Display to the Motherboard.

    • This step is only performed to gain access to the Touch Display ZIF connector. Not all Chromebook's may have this plastic sticker covering the ZIF Connector. If there is no plastic sticker, this step may be skipped.

  26. TlXjHh2jckcC6XZT
    TlXjHh2jckcC6XZT
    JKoryhkGKnX6TF6B

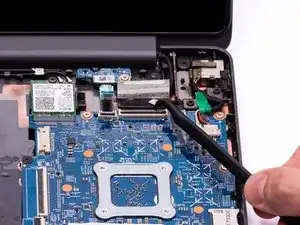

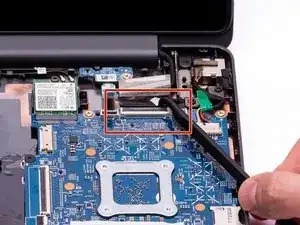

    • Using the hook on the halberd spudger, gently lift the ZIF connector tab securing the Touch Display LVDS cable to the Motherboard.

  27. r6AZBKnQGpE6RZ1o
    r6AZBKnQGpE6RZ1o
    BjEDhH3JC16iQm4K
    xLeR5apDD3hgr4Xc

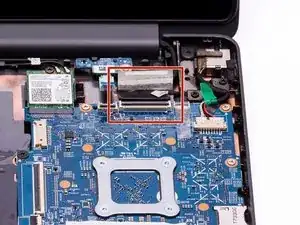

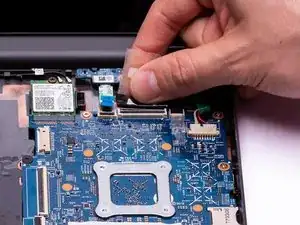

    • With the ZIF connector tab in the upright position, gently remove the Touch Display LVDS cable from the ZIF connector.

  28. aMo4sClGIXFDKdQm
    aMo4sClGIXFDKdQm
    tDE21SLnZoKbcunM
    MPZdk1HCYLRoNJDR

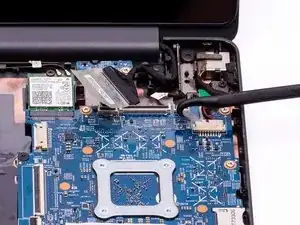

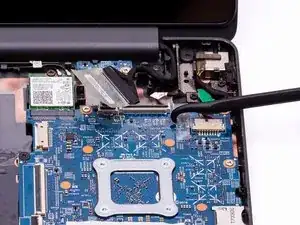

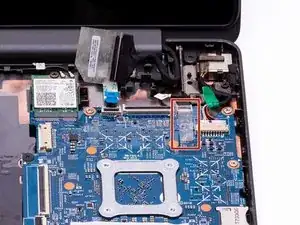

    • Using your fingers or the hook on the halberd spudger, gently lift up on the plastic sticker to reveal the Webcam ZIF connector.

    • This step is only performed to gain access to the Webcam ZIF connector. Not all Chromebook's may have this plastic sticker covering the ZIF connector. If there is no plastic sticker, this step may be skipped.

  29. cFfVVRyCWptL6R5F
    cFfVVRyCWptL6R5F
    APamNLFCcUI4TyyH

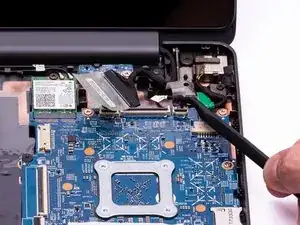

    SHnTnr1WVkxgZdAG

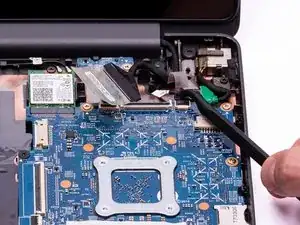

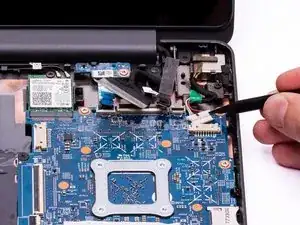

    • Using the hook on the halberd spudger, gently lift the Webcam ZIF connector tab.

  30. CN2snfUhUjZAHi1N
    CN2snfUhUjZAHi1N
    ydGUQyZXe6ZvFufT

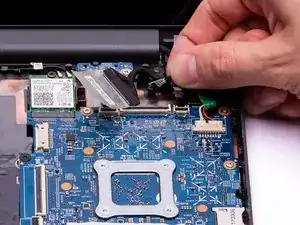

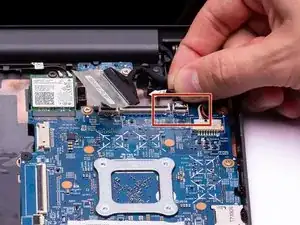

    • With the Webcam ZIF connector tab in the upright position, gently pinch the black lifting tab and remove the connector from the ZIF connector on the motherboard.

  31. cjLZ4HCAdKpCfEv1
    cjLZ4HCAdKpCfEv1
    XU2SUbACdYvYZSrE
    RaDfVQNXOy64Ij4u

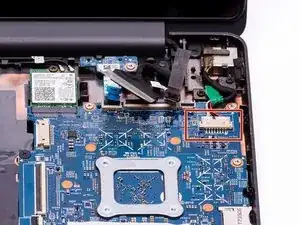

    • With either end of the spudger, remove the charging port cable from the bundle connector on the motherboard.

    • If the connector does not move when pushing on one side, push the other side to evenly remove the connector.

  32. XR2MiVYAIoxXNX4k
    XR2MiVYAIoxXNX4k
    XDrLTpqjKTyKd3dT
    oIjBCbKLGJJGZE3A

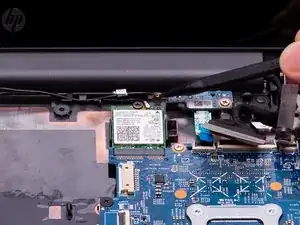

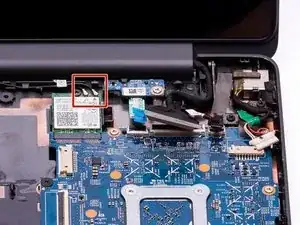

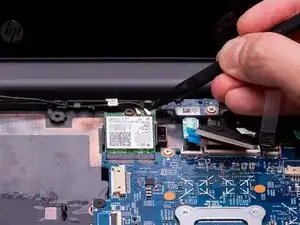

    • Using the fine point of the spudger, gently lift up the (2) antenna coaxial connectors on the WLAN module.

    • The (2) antenna cables run along the top of the Chromebook casing and are attached to the Touch Display. Make sure the antenna cables are removed from their routing tabs to avoid damaging the cables.

  33. QbUTmIJJWvFFXlh2
    QbUTmIJJWvFFXlh2
    nxSEDSxPaSjYZpVZ

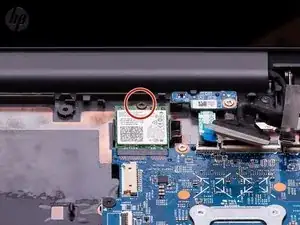

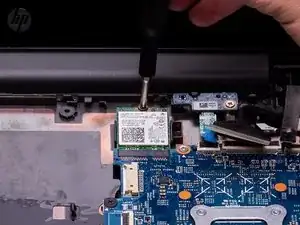

    • Using a Phillips #00 Screwdriver, remove the 3.5mm screw from the WLAN module.

  34. fgN2COdZFDjgLdk3
    fgN2COdZFDjgLdk3
    2Xp3nylBCYSprQSY
    SCOZYseRwGQpB1GQ

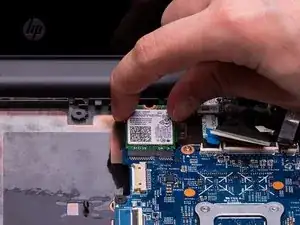

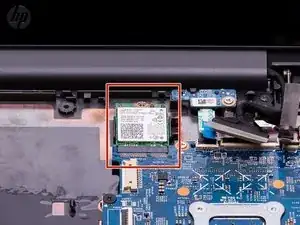

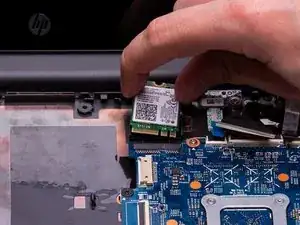

    • Gently lift and slide the WLAN module out of the WLAN connector on the top of the motherboard.

  35. EDW4H4LOJD4BRGRl
    EDW4H4LOJD4BRGRl
    tqUBxSgGL5SkfaRj

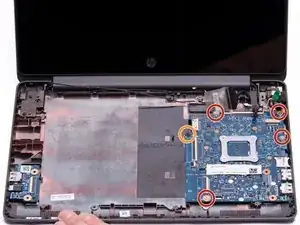

    • Using a Phillips #00 Screwdriver, remove the (4) 3.3mm screws from the motherboard.

    • Using a Phillips #00 Screwdriver, remove the 3.5mm screw from the motherboard.

  36. MrADBJdYfdVea6YX
    MrADBJdYfdVea6YX
    nXNMNoPRAYFyNCl1

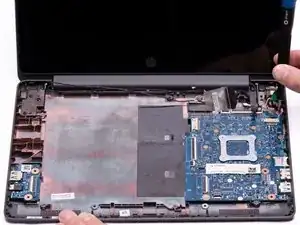

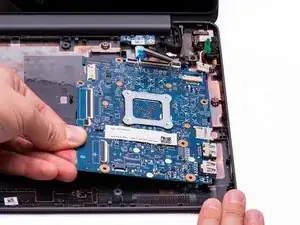

    • Gently lift and pull the motherboard towards the center of the base to remove it from the computer assembly.

Abschluss

To reassemble your device, follow these instructions in reverse order.
