HP Chromebook 11A G6 EE WLAN Replacement

Geschrieben von: William S
  • Kommentare: 0
HP Chromebook 11A G6 EE WLAN Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

35 - 45 Minuten

Einleitung

Your Chromebook has integrated wireless local area network (WLAN) options by way of an onboard wireless module. If you are having trouble connecting to Wi-fi, check out our troubleshooting page for possible solutions. If troubleshooting the settings on your device isn't resolving the issue, you may have a faulty wireless module that needs to be replaced. Follow this guide for steps to replace your wireless module and get connected to the world again.

1.     Before starting, turn off the computer. If you are unsure whether the computer is off or in hibernation, turn the computer on, and then shut it down through the operating system.

2.     Disconnect the power from the computer by unplugging the power cord from the computer.

3.     Disconnect all external devices from the computer.

  1. yJ2qm2MpInMAMYyL
    yJ2qm2MpInMAMYyL
    KCHdhkH5lkRSHe4j
    XDxFHxSrT525JxDO

    • Remove six 6.6 mm screws from the back case using a Phillips #1 screwdriver.

    • Remove two 8.7 mm screws from the back case using a Phillips #1 screwdriver.

    • Turn the computer over and open it as if you are going to use it.

  2. ZYUZ6bLUZdTdLHoG
    ZYUZ6bLUZdTdLHoG
    xGpoBP2YyKeeCwp5
    cTqMrKd5aL5MtfEl

    • Use the iFixit opening tool to get between the keyboard bezel and the outer edge of the laptop.

    • There are several clips on all sides that will need to be released. You'll hear and feel a pop as each clip is released.

    • Move the opening tool or spudger around the perimeter until you unclipped the keyboard on all sides.

    • This will require a little force. The only thing you don't want to do is push the spudger too deep under the keyboard. You could damage the internals if you do.

  3. PqyAnJU1KWuE6PcU
    PqyAnJU1KWuE6PcU
    PsHd4HnK5vJFGACk

    • Carefully lift the top of the keyboard up to access the ribbon cables connecting it to the device.

    • Use the tip of a spudger or your fingernail to flip up the small locking flap on each connector. Then, pull the cables out.

    • Lift the keyboard off the to remove.

  4. RXJMrAIsfOvocNlp
    RXJMrAIsfOvocNlp
    PRTOutaGFONnBvHl
    FtTZefNYCRIxBtql

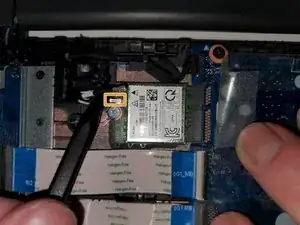

    • Use the tip of a spudger to disconnect the wireless antenna cable labeled "1/MAIN" from the "Main" terminal on the WLAN module.

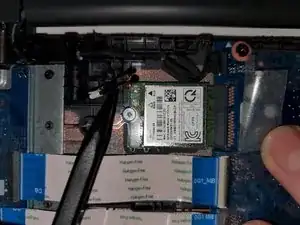

    • Use the tip of a spudger to disconnect the wireless antenna cable labeled "2/AUX" from the "Aux" terminal on the WLAN module.

    • When disconnecting or attaching these antennae, pull straight up on them. They act like snap buttons when releasing or attaching them.

  5. ElySor6Ev3u1UIeg
    ElySor6Ev3u1UIeg
    tHNs2DOAYaTVftK2
    EuioPeDhPb6r2CBL

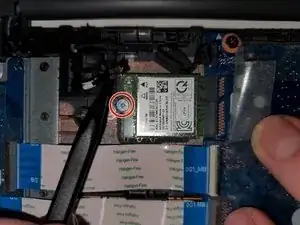

    • Remove the 2.5 mm screw that secures the WLAN module to the motherboard using a Phillips #1 screwdriver.

    • Remove the WLAN module by tilting the module up and pulling the module away from the slot at a slight angle.

Abschluss

To reassemble your device, follow these instructions in reverse order.
