HP Chromebook 11A G8 EE Screen Replacement

Geschrieben von: Kim Travers
  • Kommentare: 2
HP Chromebook 11A G8 EE Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

13

Zeitaufwand

40 Minuten - 1 Stunde

Einleitung

For this guide, you will be replacing the screen in your HP Chromebook 11A G8 EE laptop. The screen is the display for your entire laptop. It will show you whatever you are working on. The display specs are 11" diagonal, HD (1366 x 768), anti-glare, 220 nits, 45% NTSC [8,9,10]. You may need to replace the screen if it is no longer displaying a picture, or if it is cracked. Before you begin the replacement, be aware of any shattered glass, and make sure your device is turned off since you will be working with wires.

  1. 2kRBdmEkShcBpCLI
    2kRBdmEkShcBpCLI
    NlYKWksGbkQiGVEf

    • On the bottom of the laptop, remove four 7 mm screw using a Phillips #1 screwdriver.

    • Using the Phillips #1 screwdriver, remove two 8 mm screws just below the four you removed.

  2. NQKqPrYFnHmYRKWC
    NQKqPrYFnHmYRKWC
    iYZNmYQSQUuyv6jp
    GjTUPOyTOPQB36ul

    • Flip the laptop over and open up the display.

    • Using the iFixit opening tool, carefully separate the palm rest from the bottom cover by working your way around the perimeter and prying it up.

    • You will hear an audible and tactile click or pop letting you know that you have unclipped a portion of the palm rest from the base enclosure.

    • Lift the palm rest of the laptops towards you, away from the screen.

  3. pMAUaJr5iEdLYdqY
    pMAUaJr5iEdLYdqY
    bTHaOXjGVjSuyOJn

    • Carefully, lift the keyboard ribbon lock and disconnect the keyboard ribbon from the motherboard.

    • Disconnect the touchpad ribbon from the motherboard, and remove top cover.

    • Remove the keyboard.

  4. xokmWIdPoNoEvm2P

    • Pry the hinge cap off with your hands by lifting it up.

  5. k3DPbNgBlXYJur6L

    • Use the iFixit opening tool to pry the bezel up.

  6. AdGu3ehPqmnThw5v

    • Once you have pried away the bezel, pull it up towards you.

    • Peel it off gently from the screen.

  7. vhDZqUkyNjOXDbid

    • You are finished once the bezel is off of the device.

  8. ONndOh6F6NgEeiWZ

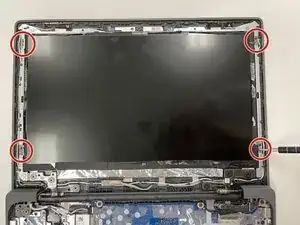

    • Remove the four 3.5 mm screws with the Phillips #0 screwdriver.

  9. sSCN6BjiLfAIEDx6

    • Flip the screen towards you.

  10. gelEupFvprp5fJVP

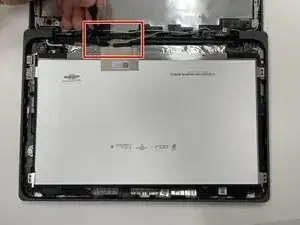

    • Once the screen is flipped down, use the tweezers to peel away the black tape holding down the connector.

  11. TRlRBnGpYpAIxsJt

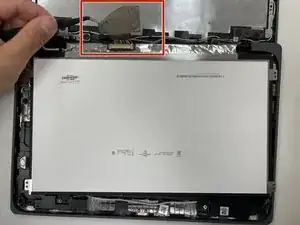

    • Next, peel away the tan tape, using the tweezers, exposing the screen connector.

  12. VRkEYLLlqOhxTFAl

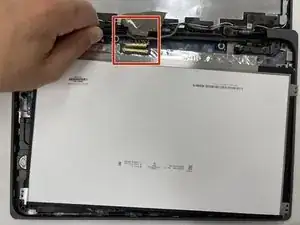

    • Using the tweezers, remove the connector by the latch attached to it.

  13. 2ZxOmNwMPAd6bPYD

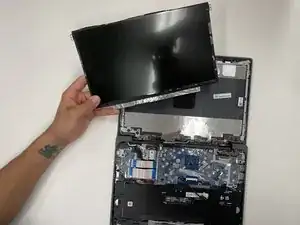

    • Finally, pull away the screen, to remove it from the device.

    Thank you so much for this! My son broke his school Chromebook and this helped me get him back up and running!

    patrickst1 -

Abschluss

To reassemble your device, follow these instructions in reverse order.
