HP Chromebook 14 LCD Screen Replacement

Geschrieben von: Mario
  • Kommentare: 9
HP Chromebook 14 LCD Screen Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

10 - 20 Minuten

Einleitung

Replace a cracked or faulty display on your HP Chromebook 14.

  1. cPY6jAw3DJjLY4MA
    cPY6jAw3DJjLY4MA
    mqvG1kMR6hWuqwoi
    La6PhnwNDHBhZgHM

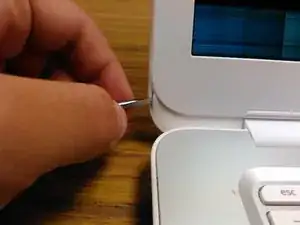

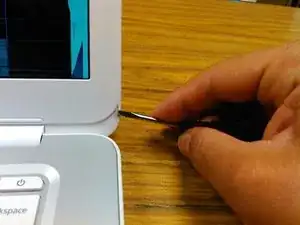

    • Pry up the nylon covers at the lower left and right of the display to reveal two Phillips head screws.

    The nylon covers are essentially stickers, so you don't have to pry to deep.

    Daniel Bernal III -

  2. 21HDQFbMFrEqBBOT
    21HDQFbMFrEqBBOT
    UN1T1cXdK5QZ3Fg4

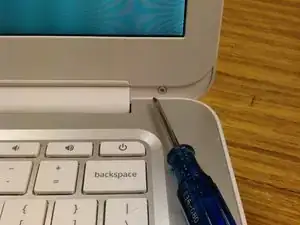

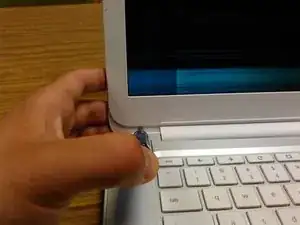

    • Remove the two screws.

  3. yaYsJ3RmRAWHZoSq
    yaYsJ3RmRAWHZoSq
    2OoZARXv5FIvLGGd
    XwPEx66NKWNmXW6r

    • Be careful when prying not to damage the bezel.

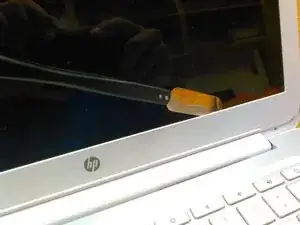

    • Use a spudger or other pry tool to pry up the bezel from all sides.

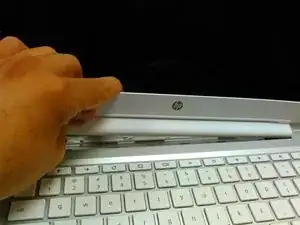

    • Once all the clips are free, pull the bezel from the bottom.

  4. m1jGuUwOGlTXWCYm

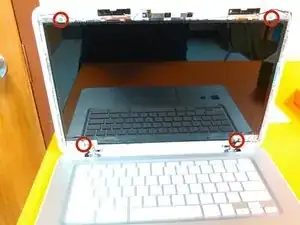

    • Remove the four screws securing the display panel.

  5. 3666jwADVHZUfAuu

    • Let the display panel rest on the keyboard.

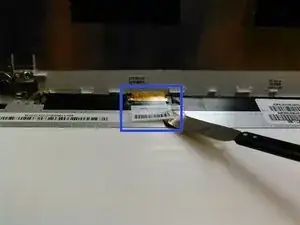

    • The highlighted area is taped to the back of the display panel. Pry up to free it.

    • Be careful not to damage the connector—pull it back gently to disconnect.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Mario

Mitglied seit: 24/03/14

652 Reputation

8 Kommentare

Nylon covers are hard to see, they cover the entire area and peel off like a sticker, I didn't think mine had any and I pulled the screw socket out, not disastrous but I would have liked to have not done this.

madornetto -

Any idea where I can buy some replacement ones?

mcaddie7 -

I was able to complete it successfully though right now I can't get the bezel quite flush down on the bottom left. One clip doesn't seem to want to go in so I'm not sure if the display cable is in the way or not. Will have to give it another look here after work but otherwise easy enough!

Aysha Springston -

So what's the screen model used in this video?, I have the same laptop

seunoresegun -

Where could I find a replacement part for the 2 nylon screw covers?

mcaddie7 -

I replaced my sons screen and now the screen is completely black. I ordered the same exact screen that it had. Spent the extra money to get the special tools and made sure I didn't touch anything with my bear hands. Can someone email me with a possible solution? I've power cycled it, and let it charge overnight. I'm at a loss and I can't afford to take it to a computer repair shop. It's only 7 months old.

Kristina -

@kristinas2boys I've never worked on this particular model, but whenever a repair doesn't work out as expected your first step should be to check your work. Open it back up, re-seat the display connector to make sure you're getting a good signal, and check for any signs of damage, etc. If the problem persists, it could be a defective display, which you can test by reinstalling the old display—if it works correctly, your replacement may be defective. If none of that applies, post your issue in our Answers forum and you'll have a better chance of getting some help. Good luck!

Jeff Suovanen -

can someone tell me or show me or provide a video link on how to remove the entire screen housing from the base of an HP chromebook 14-smb? i want to seperate the chomebook base from the screen housing. thank you

raz mahtaz -
