HP Chromebook 14 Screen Replacement

Geschrieben von: Ricky
  • Kommentare: 3
HP Chromebook 14 Screen Replacement

Schwierigkeitsgrad

Very easy

Schritte

5

Zeitaufwand

15 Minuten

Einleitung

Easy and quick replacement of the Chromebook screen.

  1. fSdPgCGjJjSeYPWt
    fSdPgCGjJjSeYPWt
    yAmBSHBpWMn1qoQN

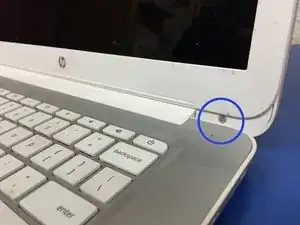

    • We will be replacing the screen on this HP Chromebook. ***Unfortunately I did get a shot of the sweet crack on this screen.

    • We will start by removing this screws on the bottom left and right of the screen, just above the escape key and power button.

  2. rUTDrGJLpwNXIx4M
    rUTDrGJLpwNXIx4M
    sMnbFrSHRPXAL6QH

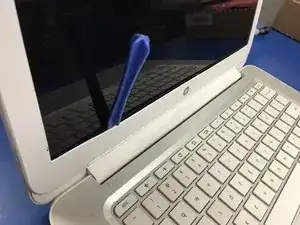

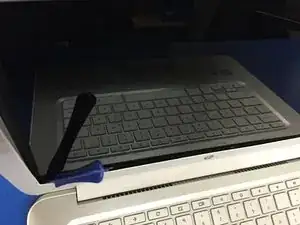

    • Next will start to remove the front "bezel" with a simple spudger. It is best to start from the bottom (now we here) of the screen. *couldn't resist

    • The bottom will have adhesive/double sided tape that may or may not give you trouble. It is not enough to prevent you from removing the screen, just be aware as it is near the screen circuit board.

    I found a really annoying super sticky black/silverfoil tape that was attached to the bezel and the actual panel, It was quite a bother to remove the bezel because of this. Please consider that this can happen when you try to wedge it off. (the reason it possibly isn't budging can be this tape)

    Bo-John Woltman -

  3. OXLVEi22N2flCqxM
    OXLVEi22N2flCqxM
    GgO4FtuE4IVi2OVC

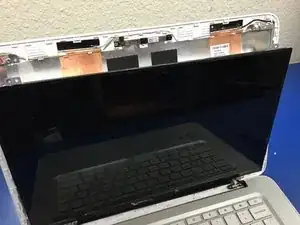

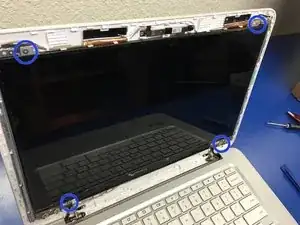

    • Once removed, we can proceed to remove (4) screws that hold the screen to the laptop case.

    • Marked in blue are the locations for the screws. Screws are closest to screen and on a light silver bracket. Pull screen forward and lay down on keyboard.

  4. pBlNPZSBX5PDAyYl
    pBlNPZSBX5PDAyYl
    f2MmnUPCif4tK5tX
    1JftYSjBaFC3V56a

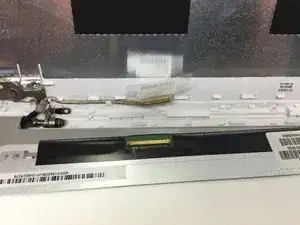

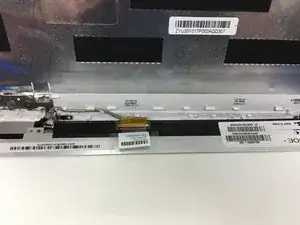

    • The ribbon cable is connected at the bottom of the screen. Tape is placed over the connection and it is easily peeled and easy to reuse. I would not advise cutting the tape.

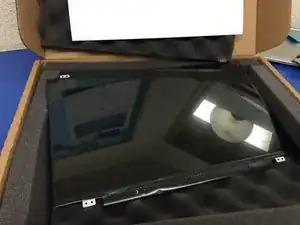

    • Connect your new screen and go backwards through the steps to install.

  5. QfFXjmIuVoB3Fsxh

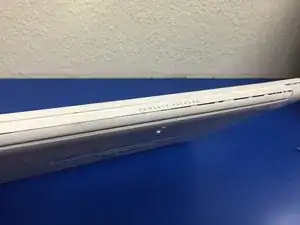

    • When re-installed and laptop is closed, check the back hinge area as it does not easily snap back in together. Pat yourself on the back if you can get it all together perfectly!

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Ricky

Mitglied seit: 17/09/13

813 Reputation

2 Kommentare

Great walkthrough but missed one of the screws in the first step. There's one on the right and left. Nothing a little superglue couldn't fix.

ronguyor -

That ribbon connector sure is finicky, It's really hard to actually pop it back in without putting too much force to it and bending it up. (for me atleast)

Bo-John Woltman -
