HP Chromebook 14-Q010DX Fan Replacement

Geschrieben von: Kevin Piper
  • Kommentare: 3
HP Chromebook 14-Q010DX Fan Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

10 - 15 Minuten

Einleitung

This guide requires removal of 3x3mm screws from the fan assembly.

  1. oxA3GNGnINLcq2Ui
    oxA3GNGnINLcq2Ui
    SjfgyAv25cWEMocK

    • Flip the laptop with the base of the laptop is facing you.

    • Using the #00 screwdriver, unscrew these screws.

    • Using the #00 screwdriver, unscrew these screws.

  2. HOQCvYq4UmPC6yVr
    HOQCvYq4UmPC6yVr
    UBO21MeVoQs2RgKN
    1OwaB2cOiKGJFiDC

    • Start from the top right corner of the laptop and work clockwise with an iFixit opening tool or spudger to pry the keyboard from the frame of the laptop.

    • When prying open a laptop it could require some force, but it also has fragile connectors underneath. Use caution so as to avoid breaking these connectors.

  3. VKnKBtlTplmYBQmh
    VKnKBtlTplmYBQmh
    4ZUPEP4Hx4UEB6k2
    GIiayODhtKmVgKuN

    • Gently pull the keyboard in the opposite direction of the screen, so the wires beneath are exposed.

    • Lift the black flap and pull the blue ribbon gently towards you until it is disconnected.

    • Lift the white flap and pull the blue ribbon towards you until it is disconnected.

  4. p42wjgUxJJWmQAq5

    • Lift keyboard slightly and remove the strip gently to prevent damaging any parts.

    • The tape has no function other than to keep the wire tucked away.

  5. 4GlFGjxrrWBtTj1C

    • Set aside the detached keyboard.

  6. xdox3qGDCqnoQ4Tx
    xdox3qGDCqnoQ4Tx
    EWQQV4X5RaFH6Atp
    FFot2vRj2BEEGVGg

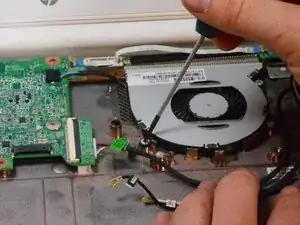

    • Remove the 3 screws around the fan.

    • Using your fingers or the spudger, disconnect the cable connecting the fan to the motherboard.

  7. HmfnctFqa6KRwfxu

    • Gently remove fan.

    how do I go about taking the fan off and what do I do after that?

    Maddie -

    Do I need to replace my fan?

    Maddie -

Abschluss

To reassemble your device, follow these instructions in reverse order.
