HP Chromebook 14-Q070NR Solid State Drive Replacement

Geschrieben von: Kevin Wong

Kommentare: 3

HP Chromebook 14-Q070NR Solid State Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

Zeitaufwand

1 - 6 Minuten

Einleitung

Before attempting this guide, you should have completed the prerequisite guides in order to gain access to the SSD. Use this guide to replace the SSD in your device.

Werkzeuge

Schritt 1

At this point, the white caps that hide the top-most screws marked with red circles have been removed.
Using the Phillips #1 screwdriver, remove the (10) ten screws from the bottom of the device.
After removing the white caps covering the screws, use the Phillips #1 screwdriver to remove the (3) three screws indicated with red circles.

There are threaded nuts underneath the two screw holes located in the center of the computer (white caps cover them). When I removed the screws, the two nuts became loose and I found them in the pan after I took the battery out. I could not reattach these screws upon reassembly because there were no threads they could screw into, so I ended up with two screws and two nuts left over after completion. Are you sure it is really necessary to remove these two center screws?

Thomas Badura - 15/02/21

Schritt 2

Open the laptop and place it upright. Remove the keyboard from the device using a plastic spudger or opening tool.
Carefully remove as there are ribbons attached to the keyboard that is connected to the components inside.
Gently lift the keyboard just enough to expose the ribbons.

Schritt 3

Hold the keyboard up to remove the ribbons from the circuit board.
To remove each individual ribbon, grab the blue portion of each ribbon and pull it towards your direction until it is fully detached.

Schritt 4

Once the ribbons are detached, remove the keyboard from the device.

Schritt 5

Using the Phillips #0 screwdriver, remove the (2) two screws at the bottom of the device.
Once removed, separate the screws from previous ones. They are different!

My battery had a third screw located on the inner side of the battery just to the left of the large ribbon cable (right side in picture in Step 5.

fergie272 - 15/02/19

Schritt 6

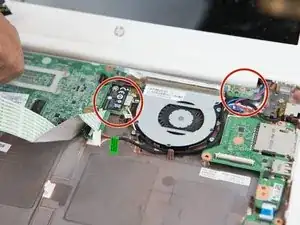

Remove the taped flat wire from the top of the battery.

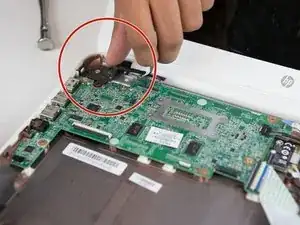

Carefully pull away the connector from the top of the battery to the motherboard.

Schritt 7

Carefully lift the battery and remove it from the device.

Schritt 8

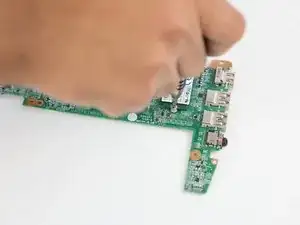

Carefully remove the (3) three plastic strips attached to the motherboard.

Schritt 9

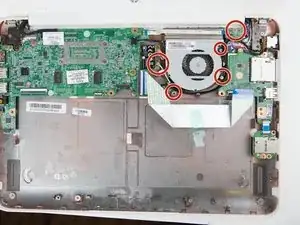

Use the Phillips #1 screwdriver to remove the (5) five screws.

Schritt 10

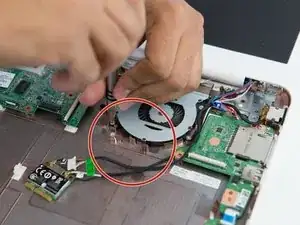

Use the blue plastic opening tool to disconnect the connectors. Remove the fan from the motherboard.

Schritt 11

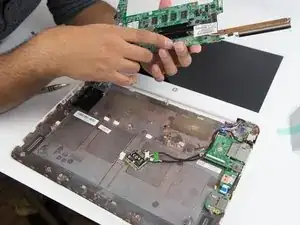

Gently lift while using the plastic opening tool to unhinge the motherboard from the computer in an upward pattern.
Be very careful not to detach the motherboard to quickly or forcefully since you could damage or break it.

Schritt 12

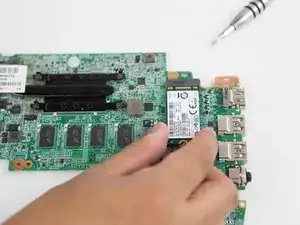

Locate the retaining screw for the SSD.

Schritt 13

Remove screw using a phillips head screw driver.

I am stuck here. I’ve tried everything I know to get that screw off and it won’t budge. I am beginning to wonder if it is soldered, or glued, or corroded in place. Any suggestions?

Blue Terra Investments - 09/03/19
