HP Chromebook 14-ak013dx Charging Port Replacement

Position the laptop so that the bottom is facing towards you and the fold facing away.

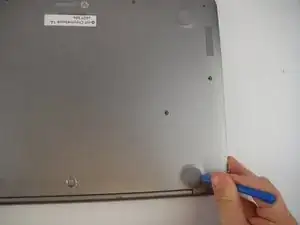

Using a plastic opening tool or another prying device, remove the five rubber stoppers on the upper side of the laptop to reveal screws.

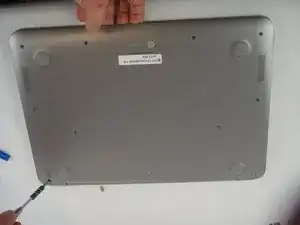

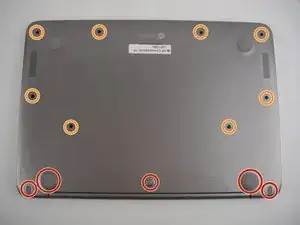

Using a Phillips-head screwdriver or another capable tool, unscrew the thirteen 5.0 mm Phillips #1 screws on the base of the laptop.

Flip the laptop over and open it so the keyboard is visible.

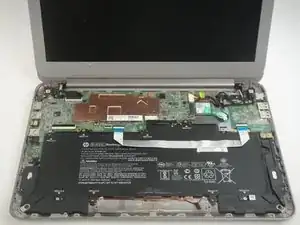

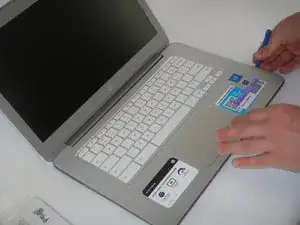

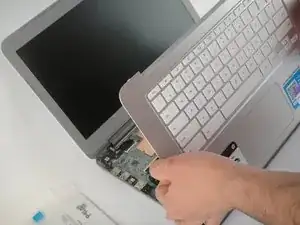

Using a plastic opening or prying tool, insert the tool between the keyboard and bottom casing. Then rotate the tool away from the laptop to open it up.

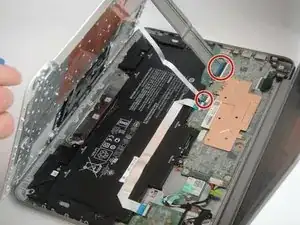

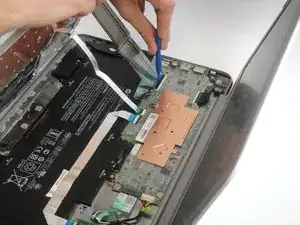

Using a plastic opening tool or your fingers, lift the two black flaps that hold the ribbons connecting the keyboard and touch-pad to fully disconnect the keyboard from the laptop.

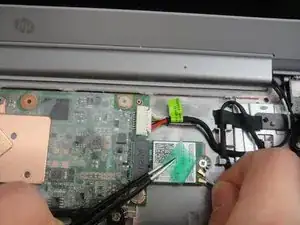

Partially remove the tape that is covering the two wires connecting to the wireless adaptor.

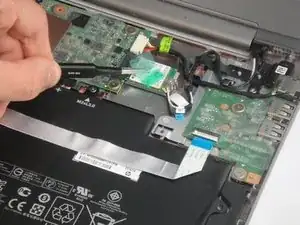

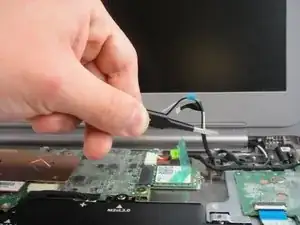

Disconnect the white and black wires from the adaptor and remove it from the plastic piece used to guide the wire to free up space.

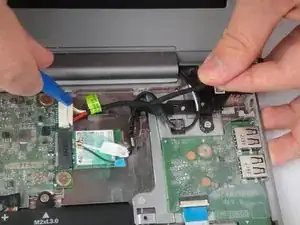

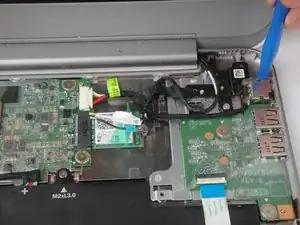

Using a prying tool or your fingers, remove the charging port head.

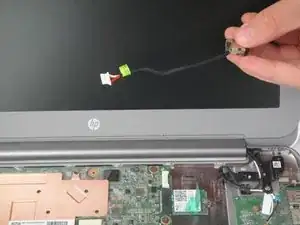

Pull by the white plastic or by the wiring away from the connector to remove the piece completely.

Replace the broken charging port with a new one.
