For this guide, we will be breaking down the steps to find, remove, and replace the USB port in the HP Chromebook 14-ak013dx. Please pay attention to the steps and details covered in this guide.

  1. vR1gmhhZPVrajtJt
    vR1gmhhZPVrajtJt
    pCPXREZNFLBY24eE
    ZZeBxY2KZV1ZhCeY

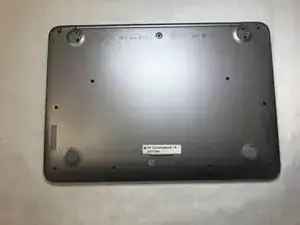

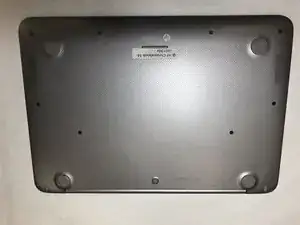

    • Turn the Chromebook upside down, as shown in the first image.

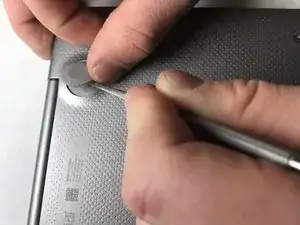

    • Remove the five rubber feet pieces as shown using a metal spudger.

  2. k4QTlUWv4R5grAGf
    k4QTlUWv4R5grAGf
    fCYs3QeUdN2IiASk
    KjsuJrbtZRokKPek
    • Begin removal of the back panel by unscrewing all exposed screws using a small Phillips screwdriver.

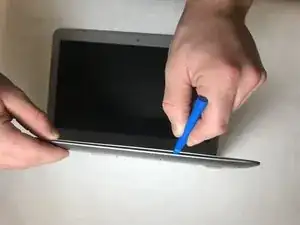

    • Use a plastic prying tool to split the back panel from the keyboard.

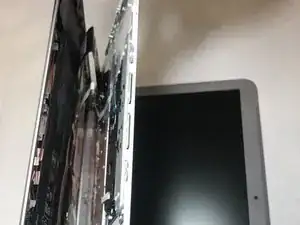

    • Move the prying tool around the sides of the back panel to detach it. Do not fully remove the panel, taking note of the two ribbon cables.

  3. 4EwSl1Z52GGngM1H
    4EwSl1Z52GGngM1H
    XYq6VOnSldgRHNpC
    YGumfhQh5psrSJRC

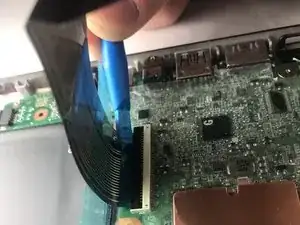

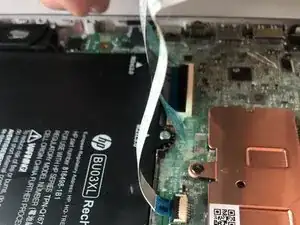

    • Remove both ribbon cables attaching the separated keyboard to the motherboard.

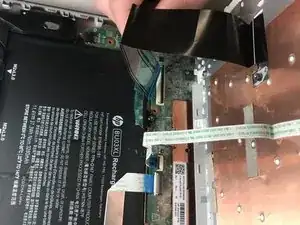

    • The large black ribbon cable was a tab that should be pried open to loosen the ribbon from its hub. Use the plastic opening tool as shown.

    • Gently pull out the short white ribbon cable out of its hub.

  4. utJihISWELmiQK1E
    utJihISWELmiQK1E
    DLZyvQfsxccI4i3X

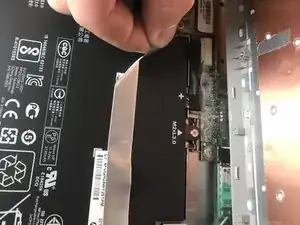

    • Peel up the adhered ribbon cable. This cable does not need to be detached from the motherboard.

    • Use a plastic opening tool to disconnect the battery before going any further by inserting the tool between the plug and the hub where the recesses are on either side of the plug.

  5. iDC1uRyTrlbTdUSE
    iDC1uRyTrlbTdUSE
    tkjTMoGWNhONkgtX

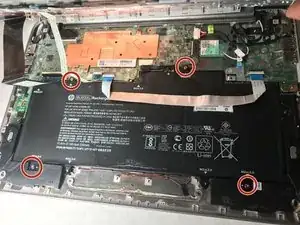

    • Unscrew the four M2xL3 screws , shown in the picture, using a Phillips screwdriver.

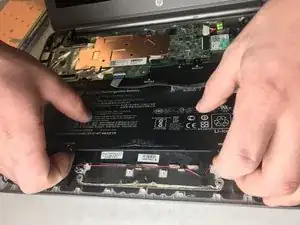

    • Carefully lift the battery out of its place, avoiding the previously adhered silver ribbon cable in the process.

  6. SClukSEwe6bKcoaO
    SClukSEwe6bKcoaO
    C6vDxCXkLhPScykD

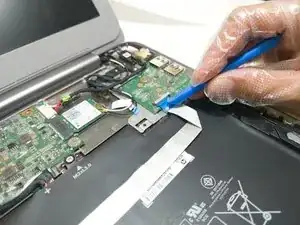

    • Lift the retaining bar on the USB port board with an opening tool.

  7. sLuQGslqNbwjZj1g

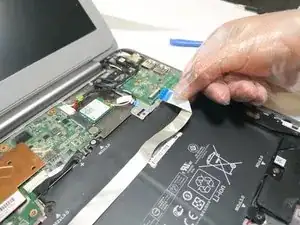

    • Carefully remove the ribbon cable from its connector on the USB port board.

  8. EU6bjQQrxutoik32
    EU6bjQQrxutoik32
    5OWIgStoEuNdGamB
    qWwumM1cWURKBNgm

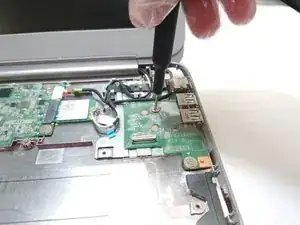

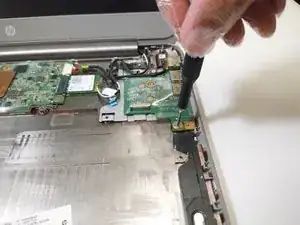

    • Remove the two 1.5 mm screws from the USB board using a Phillips #0 screwdriver.

  9. RAfbMxlXFj6qiBF5

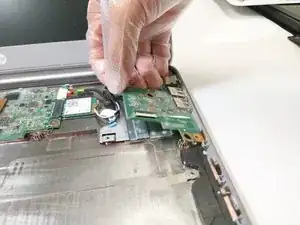

    • Carefully lift the USB ports out of the computer.

Abschluss

To reassemble your device, follow these instructions in reverse order.
