HP Chromebook 14-ca061dx Display Replacement

Geschrieben von: Jean Arevalo
  • Kommentare: 1
HP Chromebook 14-ca061dx Display Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

7 Minuten

Einleitung

Nowadays, laptop screens can be easily damaged. The HP Chromebook 14-ca061dx screen could be physically damaged, with broken glass, or black splotches on the display, or could be defective, without any signs of physical damage. A defective screen could display resolution lines, distorted coloring, or nothing at all. If you know these problems are caused by a broken, or defective a screen, you may just need a replacement. Follow this guide to help with your screen/display replacement.

  1. YsUAlDG6EqOMcuNQ
    YsUAlDG6EqOMcuNQ
    TxRoT12MQWYHUucb
    NWQmUj5OPWKSdgEM

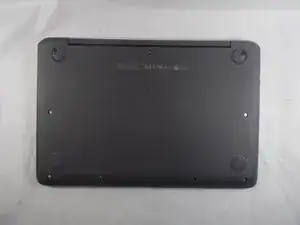

    • Flip the Chromebook so that the underside is facing upwards.

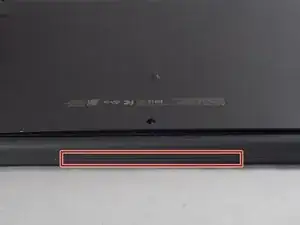

    • Follow along the edge with the iFixit opening tool to unhinge the display frame.

  2. vR1gXGECj1BNqNaG

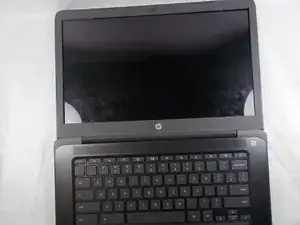

    • Flip the Chromebook right side up and open it to form a 180 degree angle.

  3. LyZLVxNKoavO2O5y

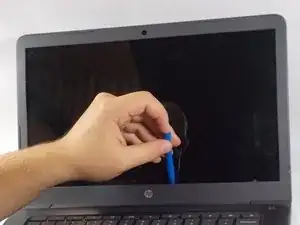

    • Use the iFixit opening tool to pry open the bezel. Start from the bottom of the screen and work your way around the sides.

    • The bottom edge of the bezel may stick because there is glue holding it together.

    Do not use a metal tool there is critical circuitry underneath.

    PC Sales -

  4. QR4UVddtYsOnpROn
    QR4UVddtYsOnpROn
    pmVreC26lwiTaiCj

    • Use spudger or the iFixit opening tool to remove the bezel.

    • When prying, be careful not to damage or snap bezel. This is made up of very, thin plastic.

    • Pull bezel from the bottom, once all clips are detached.

    • Remove bezel.

  5. vOwg6ipWba5HXZEY
    vOwg6ipWba5HXZEY
    TXuny4dXpKpFNSuH

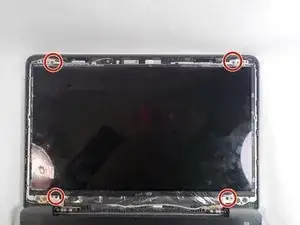

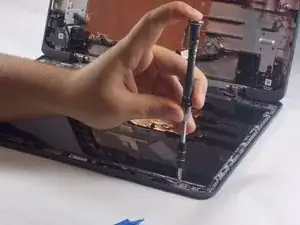

    • Remove the four 2mm JIS #000 screws.

  6. GfFgfJDJttRtLdPD
    GfFgfJDJttRtLdPD
    cBeOdbr3ju1ukHAe

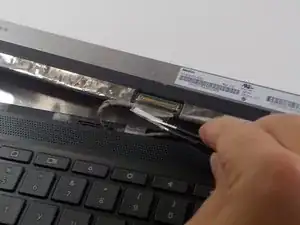

    • Use tweezers to pull the tape back and remove the connector attached to the back of the LCD panel.

    • Be cautious when pulling back the tape—the connector/ribbon is fragile and could snap easily.

  7. tjLCD1DwPhEpMMJI

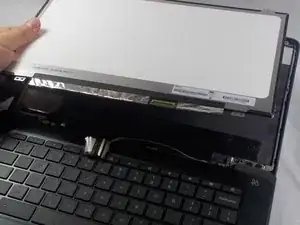

    • Remove the LCD/display panel from the Chromebook frame.

Abschluss

To reassemble your device, follow these instructions in reverse order.
