HP Chromebook 14-ca061dx Keyboard Replacement

Geschrieben von: Jean Arevalo
  • Kommentare: 1
HP Chromebook 14-ca061dx Keyboard Replacement

Schwierigkeitsgrad

Easy

Schritte

8

Zeitaufwand

5 Minuten

Einleitung

This is a guide for the HP Chromebook 14-ca061dx. In order to repair any internal pieces, you must remove the keyboard. For this guide, you will need the opening tool, the Phillips 64 bit screwdriver with the PH0 head, and spudger.

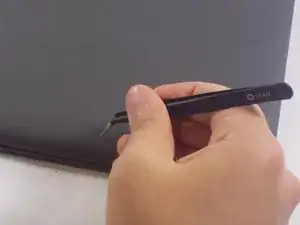

  1. WLPjpWpP5GBst25y
    WLPjpWpP5GBst25y
    r2pxYxHENlQqwHBs
    WBHVpbHJXAcKYiGS

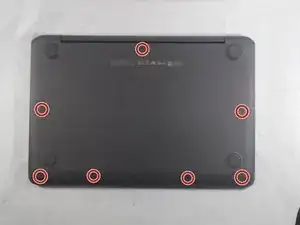

    • Flip the Chromebook to the underside with the hinge at the top.

    • Remove the seven, small rubber stoppers using angled tweezers.

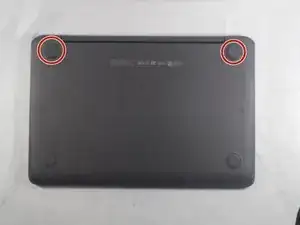

  2. ylaQamJbaiHUFTEs
    ylaQamJbaiHUFTEs
    cj1TpjmGXMRdRkpg
    HjRI5soDGqJicXe6

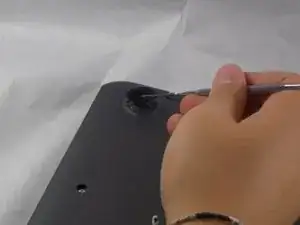

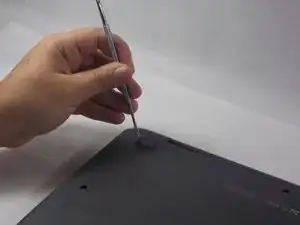

    • Remove the two bigger rubber stoppers using a metal spudger.

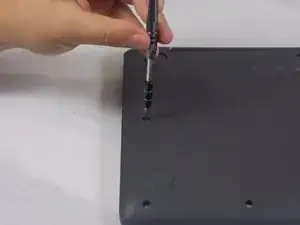

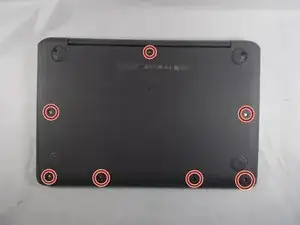

  3. 5yFmRulPGBKkPKW6
    5yFmRulPGBKkPKW6
    Kl54WSpmtWDRSEpb

    • Remove the seven 6mm Phillips #00 screws found underneath the stoppers.

  4. GeLBcZCPPvZxykNc
    GeLBcZCPPvZxykNc
    WR22wvnI5nXUyLqB

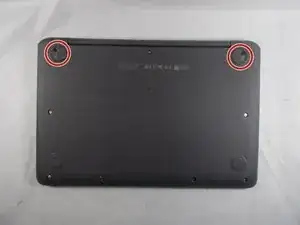

    • Remove the two 9mm Phillips #1 screws.

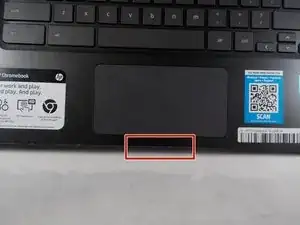

  5. bAARQrNG3rFxKAG1
    bAARQrNG3rFxKAG1
    lf1FHgRvAERE6nDN
    EyiXoLLdarmxmyyS

    • Flip the Chromebook over and open the cover.

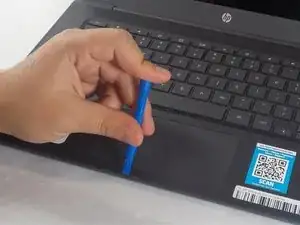

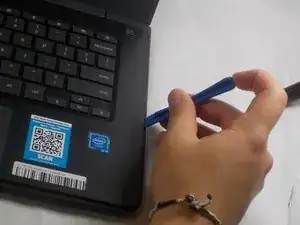

    • Insert the iFixit opening tool into the edge of the keyboard, near the mouse pad.

    • By lifting the tool at an angle, work the tool around the entire perimeter of the keyboard.

    • You will hear a popping noise when you disconnect the keyboard.

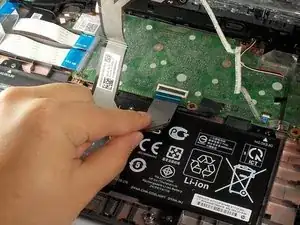

  6. ZbL4ahMOfY4QQKFH
    ZbL4ahMOfY4QQKFH
    lCNJpmkjE4m6tFxd
    TuAQlbxNFuaeALs6

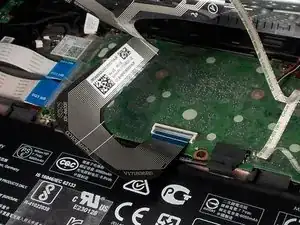

    • Lift the keyboard from the mouse pad.

    • Lift the keyboard carefully, because there are cables connecting the keyboard to the base and they may break.

    • Use your finger or the spudger tool to flip up the black locking flap.

    • Grab the black cable and pull away from the motherboard.

    • Carefully lift the black piece up, because it is fragile and can break easily.

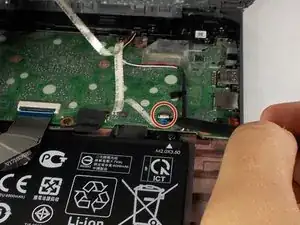

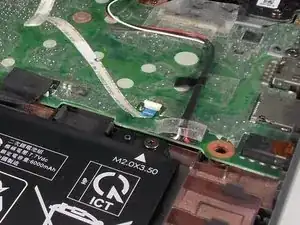

  7. NGSvOxGRPMTWnsRh
    NGSvOxGRPMTWnsRh
    RMAcJxrpBlR6Ondg
    1rfkFp6rPbax1BNH

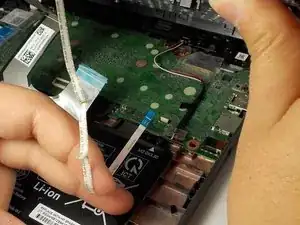

    • Flip up the white locking flap with your finger or spudger tool.

    • Remove the white cable from the motherboard.

    • Carefully lift the white piece up, because it is fragile and can break easily.

  8. 6KKBfdOsDXWUovnR

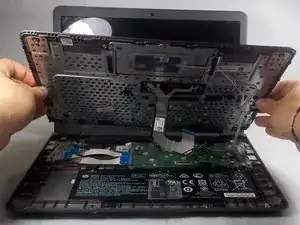

    • Lift the rest of the keyboard up from the base of the Chromebook.

Abschluss

To reassemble your device, follow these instructions in reverse order.
