This guide is created for users that struggle with battery life on their Chromebook or their Chromebook not being able to charge altogether. Over time, the Chromebook battery will lose its charge capacity and eventually, its charging ability. If this occurs replacing the battery is highly recommended. Make sure to turn off your Chromebook before replacing the battery.

Please do not dispose of the damaged battery in a trash can or recycling bin. Take it to a local electronic/appliance store for safe disposal.

  1. VxRPhekTMBqKxJ5u
    • Turn the Chromebook on its back.

    • Remove the 15 screws with a Phillips #0 screwdriver.

  2. TAsFyLRLc2DBNHF3
    TAsFyLRLc2DBNHF3
    aOk6sWAiIluiYBT2
    3mbCSu23HCFATcvN

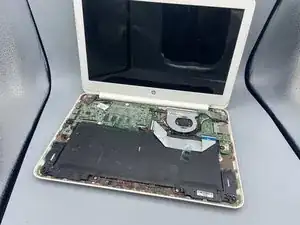

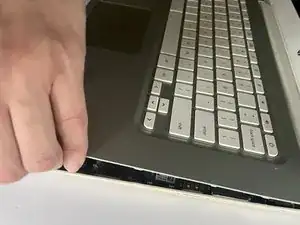

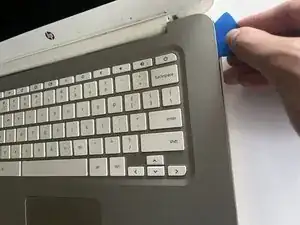

    • Remove the keyboard from the base plate with an opening pick to pry it open from both sides of the keyboard.

  3. 2qcnCnLmPsYXFV1j

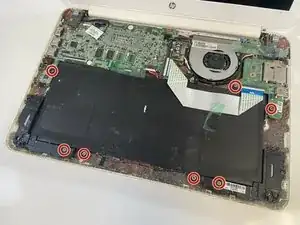

    • Use a Phillips #0 screwdriver to remove the seven screws securing the battery.

  4. wsHsOyRDGLy5DYaI

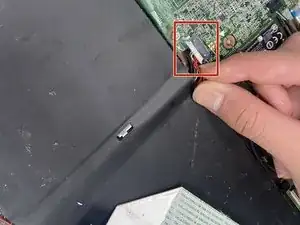

    • Gently disconnect the battery's motherboard connection by pinching the white attachment and pulling the plug directly out of the port.

  5. CHyFHjdRMLFgwh1u

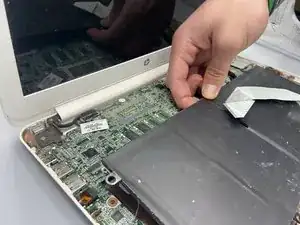

    • Gently remove the battery.

Abschluss

To reassemble your device, follow these instructions in reverse order.
