HP Chromebook 14-q010nr Motherboard Replacement

Geschrieben von: Julian Knight
  • Kommentare: 0
HP Chromebook 14-q010nr Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

25 - 45 Minuten

Einleitung

The motherboard acts as the main circuit board of the device. Without it, the Chromebook will not function at all. For this guide, ensure that you have powered off the device beforehand. Additionally ensure you are working on a flat, dry surface as the components of the device are fragile and could short-circuit.

  1. VxRPhekTMBqKxJ5u

    • Turn the Chromebook on its back.

    • Remove the 15 screws with a Phillips #0 screwdriver.

  2. TAsFyLRLc2DBNHF3
    TAsFyLRLc2DBNHF3
    aOk6sWAiIluiYBT2
    3mbCSu23HCFATcvN

    • Remove the keyboard from the base plate with an opening pick to pry it open from both sides of the keyboard.

  3. 2qcnCnLmPsYXFV1j

    • Use a Phillips #0 screwdriver to remove the seven screws securing the battery.

  4. wsHsOyRDGLy5DYaI

    • Gently disconnect the battery's motherboard connection by pinching the white attachment and pulling the plug directly out of the port.

  5. CHyFHjdRMLFgwh1u

    • Gently remove the battery.

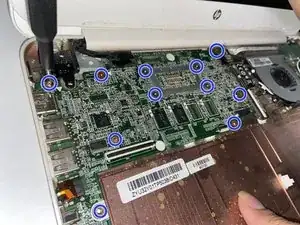

  6. KTMSbAeck6cNENoJ

    • Remove the screws from the motherboard. You will need a 2 mm Phillips screwdriver for this.

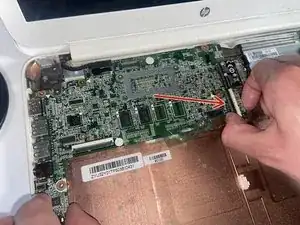

  7. l5PAUi4jfVCoDZCE

    • Remove the black ZIF connector from the motherboard.

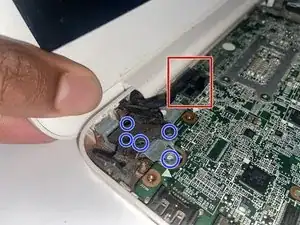

  8. JbyABGRPcJaATIbO

    • Unscrew and remove the connector connecting the monitor to the motherboard.

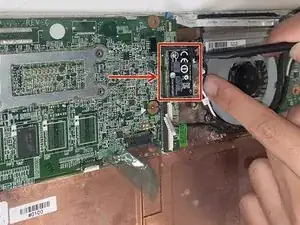

  9. dXYipSYKHiOFGC2E

    • Unplug the connector on the right side of the motherboard.

    • From this point you should be able to remove the motherboard.

    • Carefully lift it up to remove it. Use a spudger for ease.

Abschluss

To reassemble your device, follow these instructions in reverse order.
