HP Chromebook 14-x013dx Screen Replacement

Geschrieben von: NHerbert
  • Kommentare: 0
HP Chromebook 14-x013dx Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

15 - 35 Minuten

Einleitung

This guide will assist you in successfully replacing the HP Chromebook 14-x013dx Screen. This requires the removal of the bezel around the screen, as well as 4 screws and the connection to the motherboard. Some of the removed parts have adhesive on them which may need to be reapplied.

Note: The replacement of the screen does not require any prior disassembly of the laptop.

  1. eCHDXfOyslheJIbL
    eCHDXfOyslheJIbL
    SGvAXQ2QYQAC2KXO
    2VSod6nKRPGY4c2W

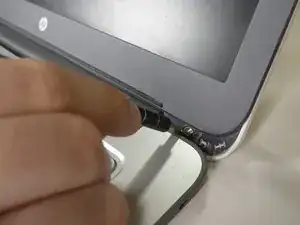

    • Remove lower left and right nylon flaps on the screen to remove the screws located underneath them.

    • The nylon strips on the side may be difficult to remove, as they are held on with adhesive. A spudger can be used to help remove these strips before removing with fingers.

    • Remove the two 2mm screws holding the bezel to the laptop case.

  2. ZcKhfq1CKGIXCQyH
    ZcKhfq1CKGIXCQyH
    qYTDAuChxwNKD1Uo

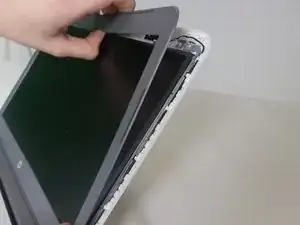

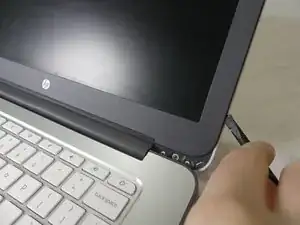

    • Gently pry around the edges of the display using a spudger to remove the bezel that borders the screen.

  3. 1WaJvCpmY5y1peAV
    1WaJvCpmY5y1peAV
    Zw2dTUIeGNjyCEyS

    • Remove glued plastic at the bottom of the cover.

  4. X3lcdPyKUXDKytEh

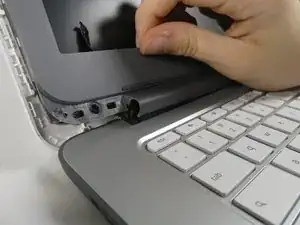

    • Once glue is separated, pop out the front cover by pulling upwards on the hinge.

  5. SDtCPKSyXO4cdwLp
    SDtCPKSyXO4cdwLp
    TQZATDiZPxM4b6nr

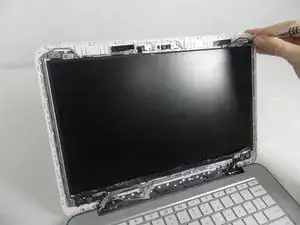

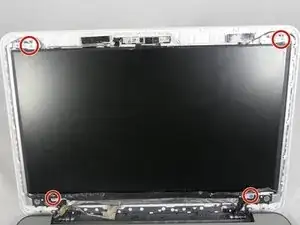

    • Once the bezel has been removed, remove the four 5mm screws at the corners of the screen using a PH00 screwdriver.

  6. kyn3BaKiCLOmrGAK
    kyn3BaKiCLOmrGAK
    ttiPrVva3yioaPwx
    Gfdusbgwt3Oyngfm

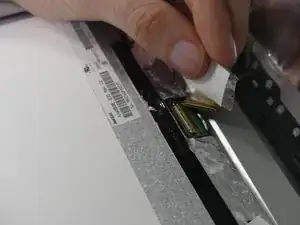

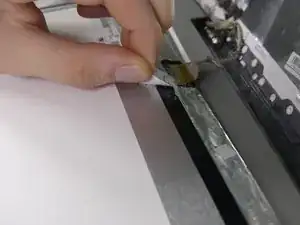

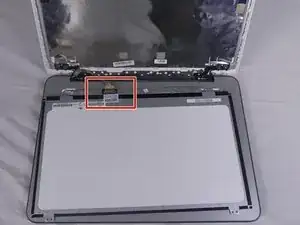

    • Before completely removing the screen, detach the connected located at the bottom of the screen.

    • The connection to be removed should have a barcode marking.

Abschluss

To reassemble your device, follow these instructions in reverse order.
