Einleitung
We are going to help you remove and replace a component of your HP Chromebook CB2L. The component that this guide helps you with is the Audio Port of the HP Chromebook CB2L. Please take a look at this troubleshooting page to confirm that this component needs replacement.
Werkzeuge
-
-

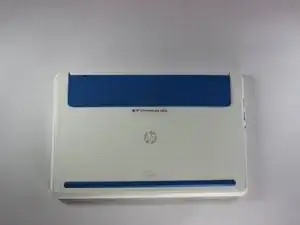

Flip Chromebook over so that the bottom panel is facing upward.
-

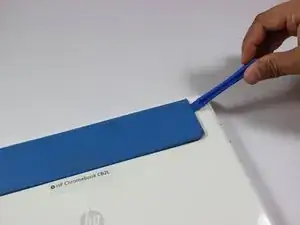

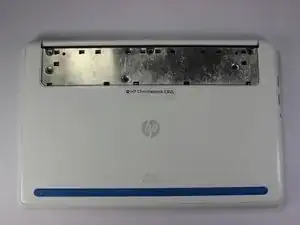

Use the plastic opening tool to remove the blue panel.
-
-
-

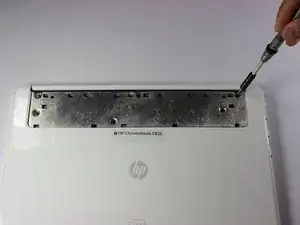

Unscrew the six 1.2mm screws on the metal plate using Phillips #1 screwdriver.
-
Lift the white panel by gently prying around the edges using the plastic opening tool.
-
-
-

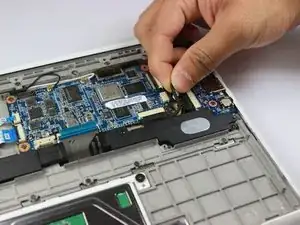

Disconnect the black wire which connects the audio port to motherboard.
-

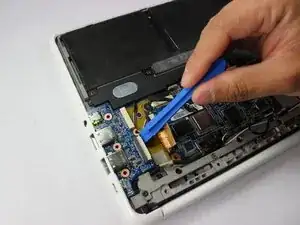

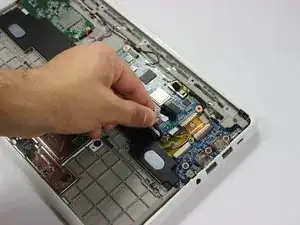

Disconnect the gold strip connecting the audio port to motherboard
-
To reassemble your device, follow these instructions in reverse order.
