HP Chromebox J5N50UT Bottom Cover Replacement

Geschrieben von: Ashley Marvin
  • Kommentare: 3
HP Chromebox J5N50UT Bottom Cover Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

5 Minuten

Einleitung

If the bottom cover of your HP Chromebox is damaged, it is easy to replace. This guide will take you through the steps of replacing the bottom cover. For this guide, you will need the Phillips #1 screwdriver and a plastic spudger.

  1. AYdDaZtUbyrLvOIg

    • Before removing the bottom cover, ensure that your computer is powered down and ensure that all external devices are disconnected. If you are unsure whether the computer is off or in hibernation mode, turn the computer on, then shut it down through the operating system.

    • Position the device upside-down on a flat, level surface with the USB ports facing you.

    both for the cover replacement and shield replacement

    Ian Stoffel -

    For the hard drive replacement, a longer times should be indicated. for the WLAN replacement 15 minutes is indicated, but for the hard drive replacement, which can only be done after the WLAN replacement, the time is listed as 10 minutes.

    Ian Stoffel -

  2. Pw2kb1A6TA5mVHo5

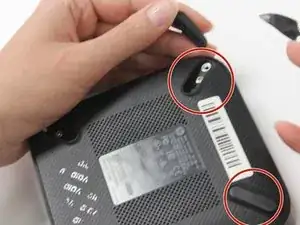

    • Using your metal spudger, lift and remove the 4 rubber “feet” from each corner.

  3. uQV3EtuDrcQobMCE

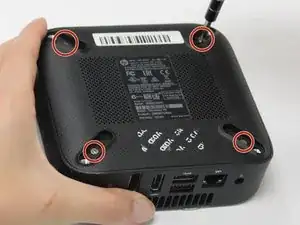

    • Using your Phillips head screwdriver, remove the four Phillips M2.5×4.0 screws that secure the bottom cover to the computer. In this step the usage of the magnetic mat will be helpful to keep up with the screws.

  4. q22CfOuSZgctm5md

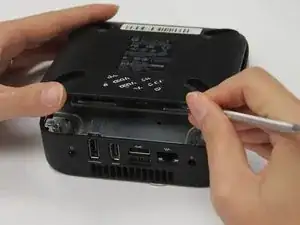

    • Insert the flat end of your metal spudger under the bottom cover near the USB ports, then pry the bottom cover off the computer.

Abschluss

To reassemble your device, follow these instructions in reverse order.
