HP Chromebox J5N50UT Hard Drive Replacement

Geschrieben von: Ashley Marvin

Kommentare: 11

HP Chromebox J5N50UT Hard Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

Zeitaufwand

10 Minuten

Einleitung

If the hard drive of your HP Chromebox is damaged, it is easy to replace. This guide will take you through the steps of replacing the hard drive. For this guide, you will need the Phillips #1 screwdriver.

Werkzeuge

Schritt 1

Before removing the bottom cover, ensure that your computer is powered down and ensure that all external devices are disconnected. If you are unsure whether the computer is off or in hibernation mode, turn the computer on, then shut it down through the operating system.
Position the device upside-down on a flat, level surface with the USB ports facing you.

both for the cover replacement and shield replacement

Ian Stoffel - 30/10/18

For the hard drive replacement, a longer times should be indicated. for the WLAN replacement 15 minutes is indicated, but for the hard drive replacement, which can only be done after the WLAN replacement, the time is listed as 10 minutes.

Ian Stoffel - 30/10/18

Schritt 2

Using your metal spudger, lift and remove the 4 rubber “feet” from each corner.

Schritt 3

Using your Phillips head screwdriver, remove the four Phillips M2.5×4.0 screws that secure the bottom cover to the computer. In this step the usage of the magnetic mat will be helpful to keep up with the screws.

Schritt 4

Insert the flat end of your metal spudger under the bottom cover near the USB ports, then pry the bottom cover off the computer.

Schritt 5

Lift the two pieces of mylar tape from the bracket.

Flag: Confusing Text

in steps 5 and 6 it seems the bottom shield is called a bracket, so by using 2 different names it’s making it seem like we’re missing a piece/part

Ian Stoffel - 30/10/18

Schritt 6

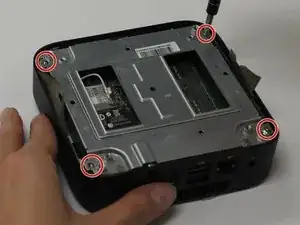

Using your Phillips #1 screwdriver, remove the four Phillips M2.5×4.0 screws that hold the shield in place.

Schritt 7

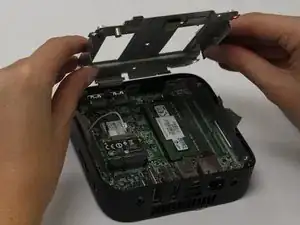

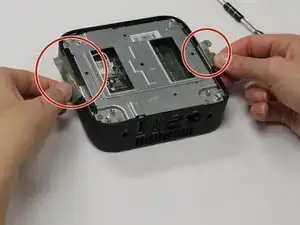

Insert your spudger into the gap between the bottom shield and the ports and gently pry to lift and remove the shield.

another picture of where to insert the spudger may be helpful. which ports are you talking about?

Ian Stoffel - 30/10/18

Flag: Needs More Images

another picture of where to insert the spudger may be helpful. which ports are you talking about?

Ian Stoffel - 30/10/18

Flag: Missing Details

a note step on paying attention to how the shield is positioned before removing it may make reassembly easier

Ian Stoffel - 30/10/18

Schritt 8

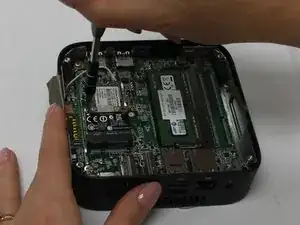

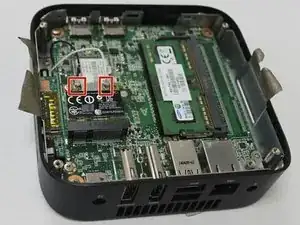

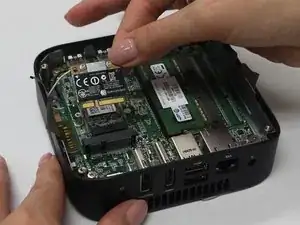

Disconnect the white and black antenna cables from the module.

Flag: Markup Mishap

iFixit has in their Milestone 3 instructions to not use arrows. we recommend either a box over each connector or a rectangular box over the 2 instead

Ian Stoffel - 30/10/18

Schritt 9

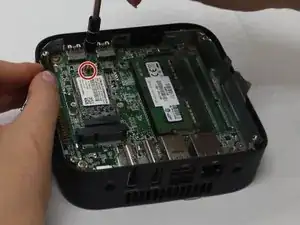

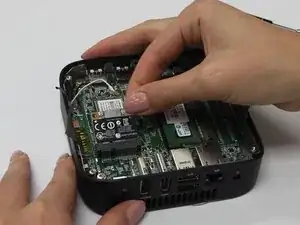

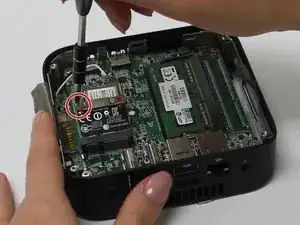

Using your Phillips #1 screwdriver, remove the M2.0×3.0 screw from the upper left corner of the module.
Once the screw has been removed, the module will tilt up.

Flag: Needs Better Images

we don’t think picture 2 is needed at all.

picture 3 doesn’t really show how the module has popped up. the angle is wrong to make it obvious

Ian Stoffel - 30/10/18

Schritt 10

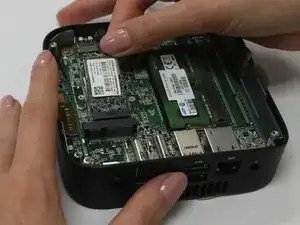

Remove the WLAN module by pulling it away from the slot at an angle.

Schritt 11

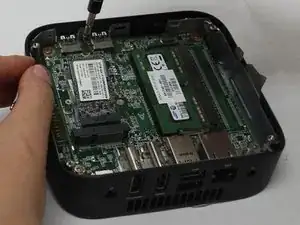

Remove the Phillips M2.0×3.0 screw.

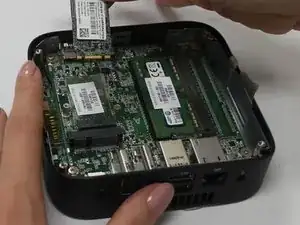

The hard drive will tilt up once the screw has been removed.
