HP Compaq 2510p Bluetooth Adapter Replacement

Geschrieben von: Derek Kohansky
  • Kommentare: 0
HP Compaq 2510p Bluetooth Adapter Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

10 Minuten

Einleitung

This guide will show step-by-step instructions to replace the bluetooth adapter in the HP Compaq 2510p. .

  1. d5RLTqC1SGLQg6tT

    • Place the laptop upside down, with the battery facing away from you. Towards the bottom-middle of the laptop, you should see a small panel with a Bluetooth symbol.

  2. aPogt2nsRSGPIbMx

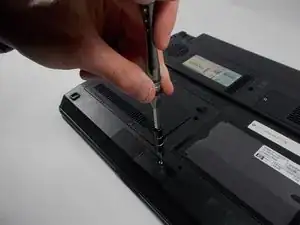

    • There is 1 screw on the panel you located in step one. Use your Philips head screwdriver to remove the single screw.

  3. If2DbX4OuHcJIUwG

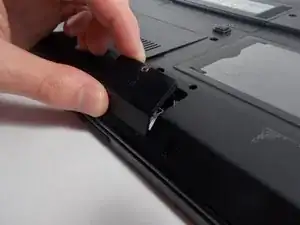

    • Remove the Bluetooth panel by pulling it with your finger.

    • Pull gently as there is a wire connecting the laptop and the adapter.

  4. ihPUiJLA2Nxne1D1

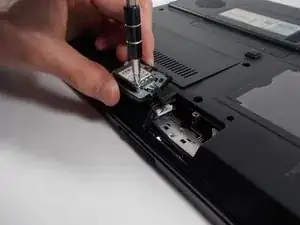

    • Pull the adapter to the left exposing its underside. Locate and remove its only screw using your Phillip's head screwdriver.

  5. BVugKitJhyLkZR6K

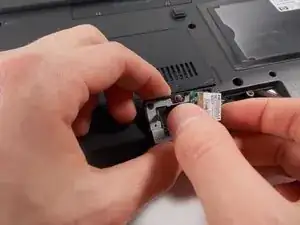

    • Separate the Bluetooth adapter by pulling it from its casing.

  6. owlXpYBvyw5QQUY6

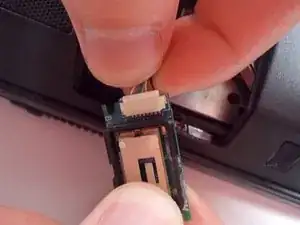

    • Remove the adapter by pulling on the base of the connecting wires and the adapter, in opposite directions.

    • Use moderate force.

Abschluss

To reassemble your device, follow these instructions in reverse order.
