Einleitung
In this guide, we will illustrate how to remove and replace the hard drive for this device. Tools required include thumbs and a Phillips screwdriver.
Werkzeuge
Ersatzteile
-
-

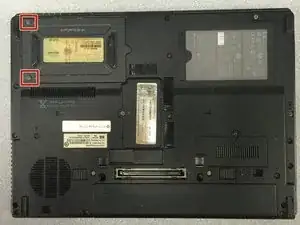

Loosen the two 1.5 cm Phillips #1 screws that attach the cover of the hard drive .
-

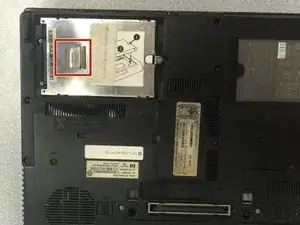

Lift up the cover.
-
-
-

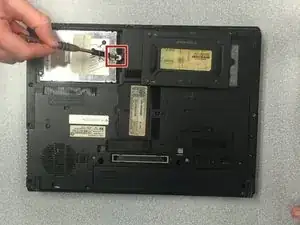

Loosen the 1.5 cm Phillips #1 screw attaching the hard drive to the laptop.
-
Locate the tab on the hard drive.
-
Use this tab to pull the hard drive toward the right side of the case.
-

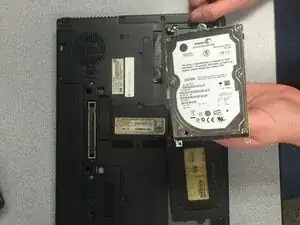

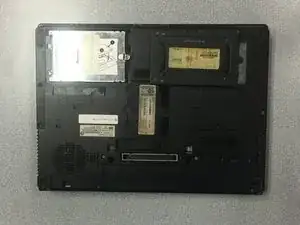

Remove the hard drive.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
