Einleitung

In this guide, we will illustrate how to remove and possibly replace the keyboard of this device. The only tools required are thumbs and a Phillips screwdriver.

  1. RIvQc22aOMXysN3j

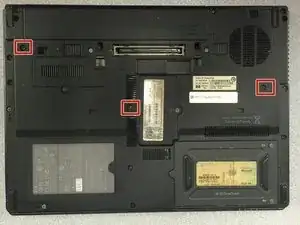

    • Loosen the three 1.5 cm Phillips #1 screws for the keyboard on the back of the laptop.

  2. iuqQqW4EPCi11dL4
    iuqQqW4EPCi11dL4
    aLEMJYXwZuJuuj6T

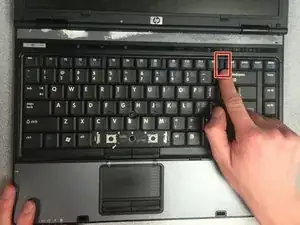

    • Slide the indicated tabs upward to release the keyboard.

  3. EZYPrstSpUAkQEsL
    EZYPrstSpUAkQEsL
    A6grweGDiQFeGfns
    ywnYYMVBDrsbPaCJ

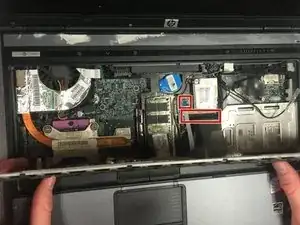

    • Lift up the keyboard.

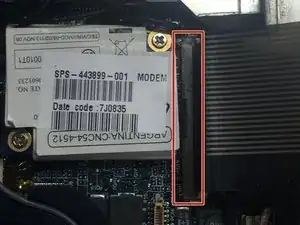

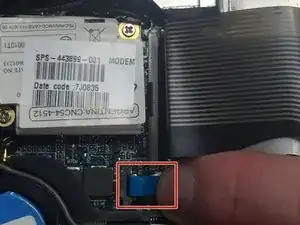

    • Release both cables that attach the keyboard to the laptop by lifting up the indicated release latches.

    • If you are having trouble, use a flat-headed screwdriver to lift up the release latches.

Abschluss

To reassemble your device, follow these instructions in reverse order.
