In this guide, we will illustrate how to remove and replace the processor of this device. Required tools include one Phillips screwdriver, one T9 Torx screwdriver, Arctic Silver Thermal Paste, and thumbs of course. Because the processor is difficult to find, patience will be required as well.
-
-
Turn the laptop upside down.
-

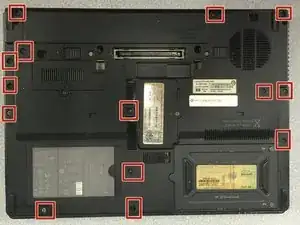

Remove the fourteen 1.5 cm Phillips's #1 screws.
-
Remove the battery.
-

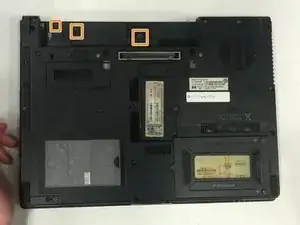

Remove three 0.3 cm Phillips #1 screws in the battery compartment.
-
-
-

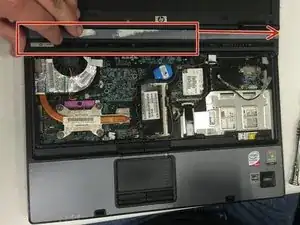

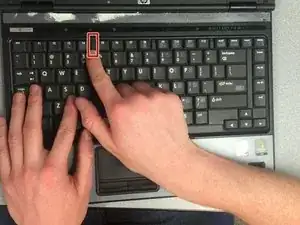

Slide the tabs upward to release the keyboard
-

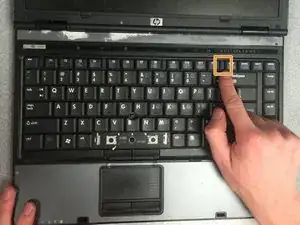

Lift up the keyboard
-

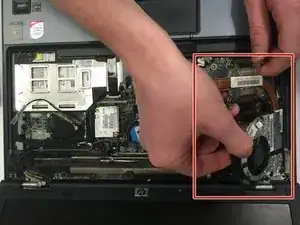

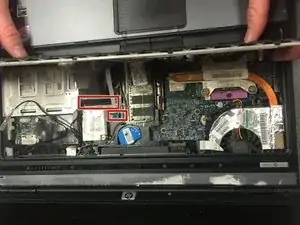

Disconnect the cables attaching the keyboard to the laptop by lifting up the release tabs.
-
-
-

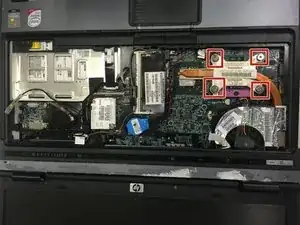

Loosen the four 1.5 cm Phillips #1 screws indicated in red.
-

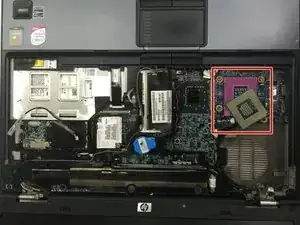

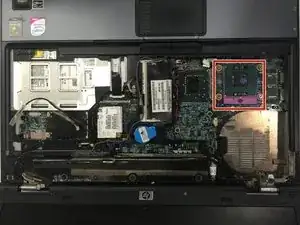

Remove the heat sink to reveal the processor.
-
To reassemble your device, follow these instructions in reverse order.
