HP Compaq Presario CQ56-110US CD Drive Replacement

Geschrieben von: Iyonna L. Tynes
  • Kommentare: 0
HP Compaq Presario CQ56-110US CD Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

5 - 7 Minuten

Einleitung

This guide will detail the steps of replacing a faulty CD Drive.

  1. iYnS2UtJsPbxLyNa
    iYnS2UtJsPbxLyNa
    KgKKTXa3QraHa6dj

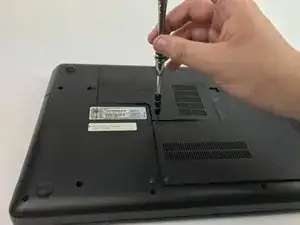

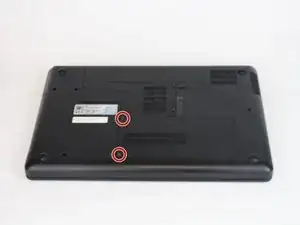

    • Loosen the two indicated screws on the panel using a Phillips screwdriver with a PH1 head size.

    • The screws do not come free from the panel. They only need to be loosened enough so that the panel can be lifted/pried using a plastic opening tool.

  2. EylAUSUAxkDjG4Or

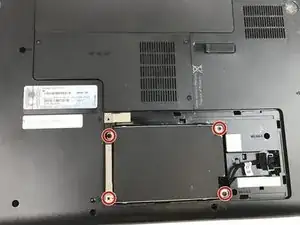

    • Use the screwdriver to unscrew the four 5mm screws holding down the hard drive.

  3. KPWBTwgRftrATpZD
    KPWBTwgRftrATpZD
    gZpvWLDDQGJlPbtP

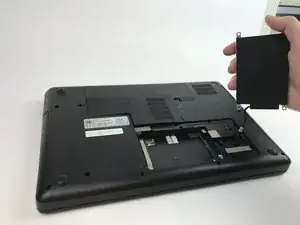

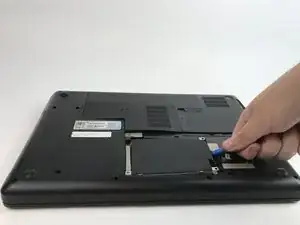

    • Use plastic opening tools to lift up the hard drive. Set aside the hard drive without disconnecting the wire.

  4. ufQXmTo2xhJgCRLN

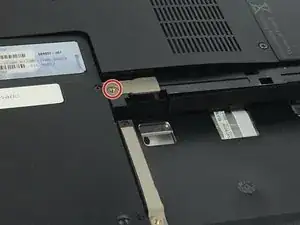

    • Use a Phillips screwdriver with a PH0 head type to unscrew the indicated 5.5mm screw.

  5. bSh4WIcHpyDsb3aW

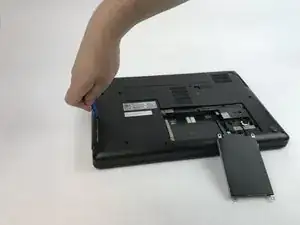

    • Use plastic opening tools to pry open the CD Drive.

  6. UOCSF3FhNvQIWDPZ

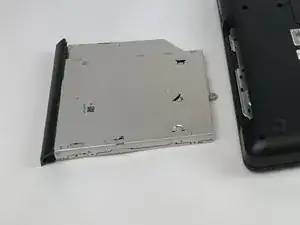

    • Use your hands to pull the CD drive out and remove it from the laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.
