HP Compaq Presario CQ56-110US Disassembly

Geschrieben von: Macix26
  • Kommentare: 3
HP Compaq Presario CQ56-110US Disassembly

Schwierigkeitsgrad

Moderate

Schritte

15

Zeitaufwand

25 - 50 Minuten

Einleitung

Complete Disassembly of The Laptop excluding Laptop Display

  1. B2oAPKNdOO3P5YEZ
    B2oAPKNdOO3P5YEZ
    GR6AqMdEqJc2jdhr
    DwYSjiBE6EvF3XVs

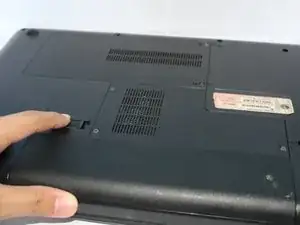

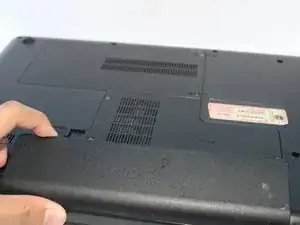

    • Remove Battery by sliding the tab

    Thank you for a great work and an excellent clarification for all parts of the device

    abbas hussein -

  2. QFCyXbbfpZ1CTPXT
    QFCyXbbfpZ1CTPXT
    JUlu5OuJCMcsXiQQ
    iMJlJItZgLDfBV1W

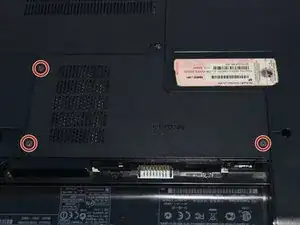

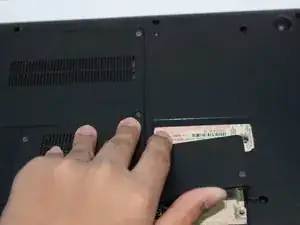

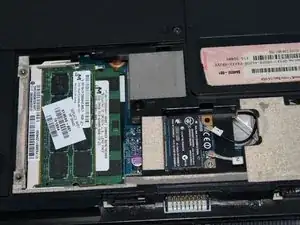

    • Remove the 3 screws from the Ram Cover and lift up the cover

  3. Y6vcVA4ONPy3ONOv
    Y6vcVA4ONPy3ONOv
    6PAcdGUu6N23PGmu
    DBuRIHjkttffsCXN

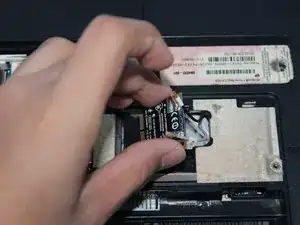

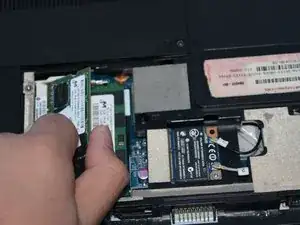

    • Remove Ram Stick by pulling the tabs to it side

    • Remove the to remove the Wifi Card and remove its antenna wires

  4. EiANSO31sUl3gGtU
    EiANSO31sUl3gGtU
    S4QOQPJf6KGuRakT
    TYTK3OW5DvQYEdHA

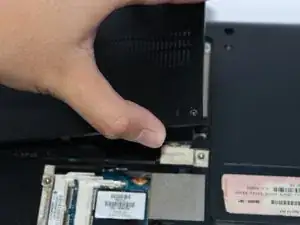

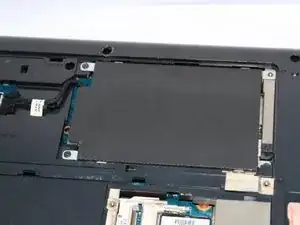

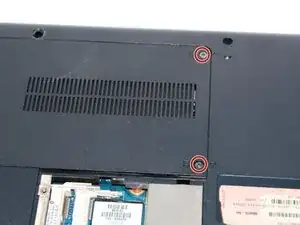

    • Remove 2 Screw from the Hard Drive Cover and lift up the cover

  5. BkGNCTLTnI6KCYE1
    BkGNCTLTnI6KCYE1
    2NqJiWYp5VNSAf4B
    4bAL2EWFIQtNlu3N

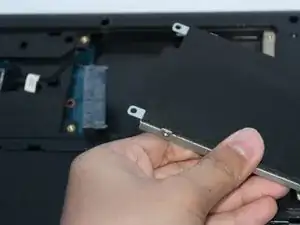

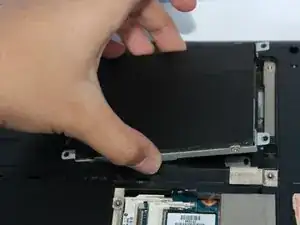

    • Remove the 3 screws from the Hard Drive

    • Remove the SATA Cable from the Hard Drive and Motherboard

  6. lsZoABo1mXxEBJFI

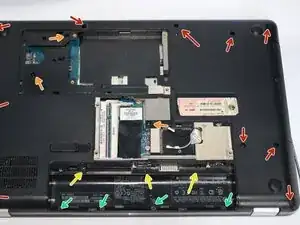

    • Remove 10 screws from the laptop

    • Remove 3 2.5 x 6.5 screws from the laptop

    • Remove 3 2.5 x 5 screws from the laptop

    • Remove 4 2.5 x 3 screws from the laptop

    • *The Photo looks incomplete because it exceeded the crop limit

  7. 2CIrxP3ZyqsKJm4y
    2CIrxP3ZyqsKJm4y
    xlPBjkQKVIpy3nZt
    KkOlCRLgecO1tVPR

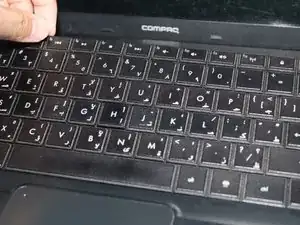

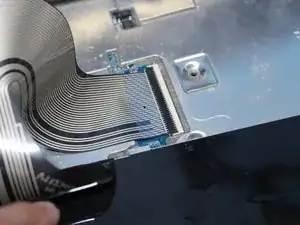

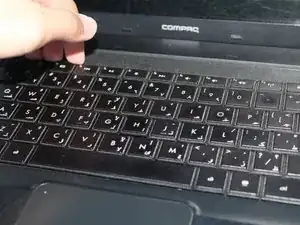

    • Put Your Hands on the Top Corners and Put some little pressure

    • Be careful that there is a ribbon cable under there and make sure that it is removed

  8. ZkRxZXHVatiugOU2
    ZkRxZXHVatiugOU2
    UdQIpWrfQoSgCGF1
    lMhsrNXqJnjJ2eqk

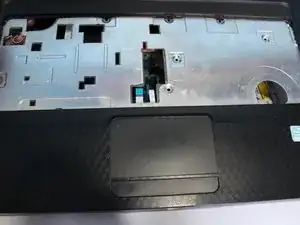

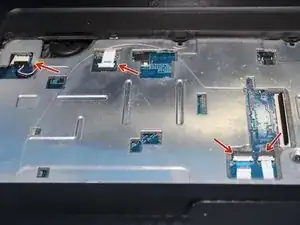

    • Remove the Ribbon Cables and Wires from the Motherboard and use a pick to remove the top cover

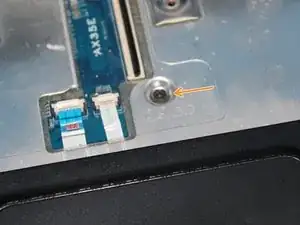

    • Remove 1 screw and lift up the top cover

  9. VxWboxydGk2ZaFCG
    VxWboxydGk2ZaFCG
    mOJtqeU6ONMDNGUB

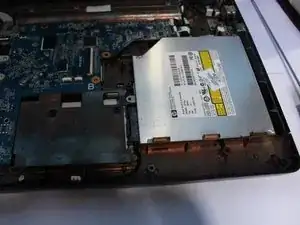

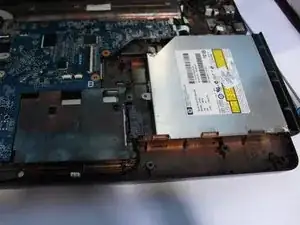

    • Remove the CD Drive by Pushing or Pulling to the outside

  10. BJ1HWj3frDpVSUlI
    BJ1HWj3frDpVSUlI
    3gaeII2QGnQ65XNB

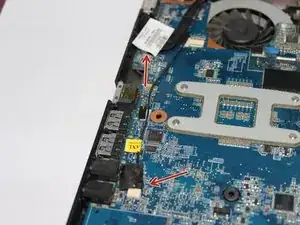

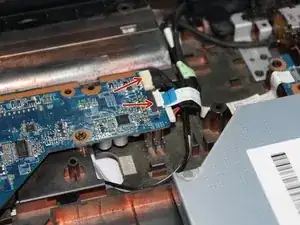

    • Remove the 3 Display Cables and a USB Port Ribbon Cable

  11. yZhjCYM6XxLl3uNI
    yZhjCYM6XxLl3uNI
    J5hlvmAAJraUoyEC

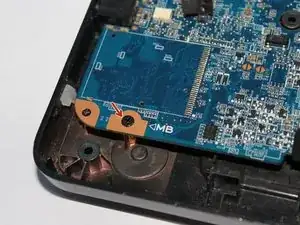

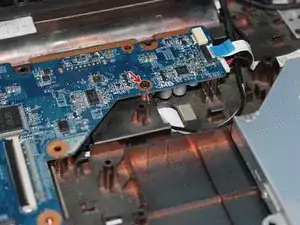

    • Remove 2 Screws from the Motherboard

  12. dTNAxmJULySLCOFT
    dTNAxmJULySLCOFT
    ZRqLUMsad4ZMLsA3
    AsqvHdsphYeTRCmQ

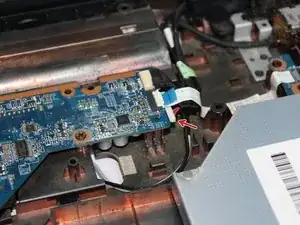

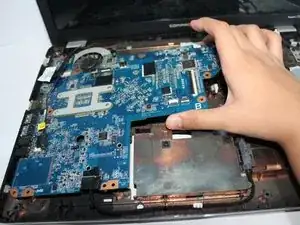

    • Remove the Power Cable and pull the motherboard to the right

  13. PvtAhKuPHQqElNRl
    PvtAhKuPHQqElNRl
    dBRYZWMH6FqsWiZV

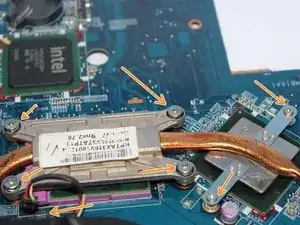

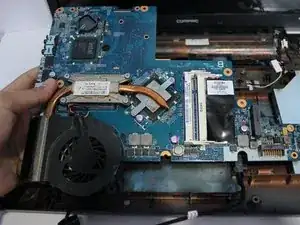

    • Remove the Six Screws from the Heatsink

    • Remove the Cable of the fan

  14. 6VKojdWRhucXLKJX
    6VKojdWRhucXLKJX
    avAmQASu5G5xYGpJ
    QLYKRFCfdRjCAMMQ

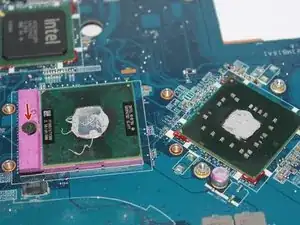

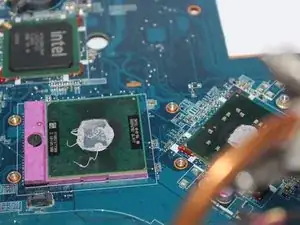

    • Use Something Flat Tipped like a Flat tip screw driver

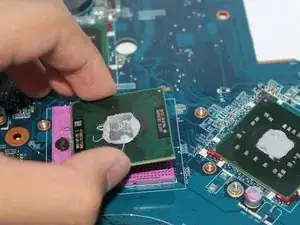

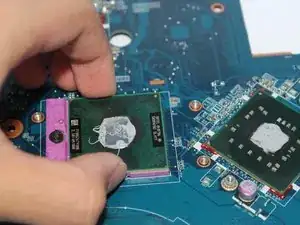

    • Be Careful with removing the CPU because it has fragile pins under it, remove it by wiggling it back and forth

  15. ThMOuLGKclNgBkAO
    ThMOuLGKclNgBkAO
    d3OPkVPwKlTECbdh

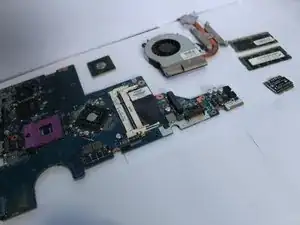

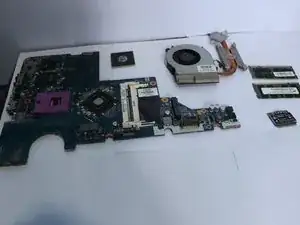

    • Laptop Dissasembly Complete, Here is Everything except for the Case and Display

    Thank you so much . I learned to unlock the device by following the illustrations

    hussein abbas -

Abschluss

To reassemble your device, follow these instructions in reverse order. This can be useful for a CPU Upgrade
