HP Compaq Presario CQ56-110US Keyboard Replacement

Geschrieben von: Iyonna L. Tynes
  • Kommentare: 1
HP Compaq Presario CQ56-110US Keyboard Replacement

Schwierigkeitsgrad

Difficult

Schritte

9

Zeitaufwand

7 - 10 Minuten

Einleitung

Use this guide to replace the entire keyboard if it is unresponsive or not functioning properly.

  1. HZDO4ARCTQBZiO6f
    HZDO4ARCTQBZiO6f
    fAyaJAhZHnpXlJcQ

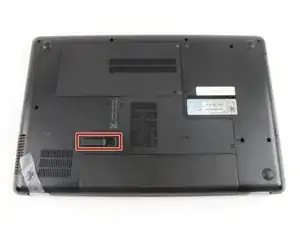

    • Ensure that the laptop is completely powered off, then flip it over to identify the battery latch located towards the bottom of the back panel.

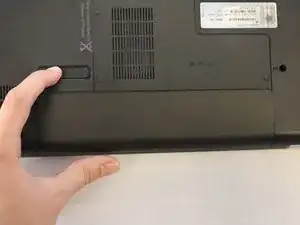

    • Push the latch to the unlocked position.

  2. TD1A5HCAIs2m4Cpa

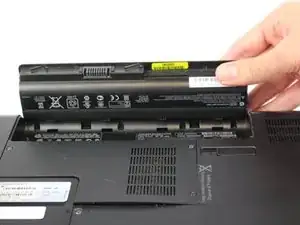

    • Gently take out the battery.

  3. xxphHADjgXIfefVV
    xxphHADjgXIfefVV
    4HVyOLxXT5h6wWad

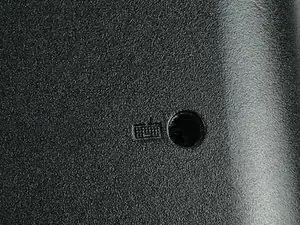

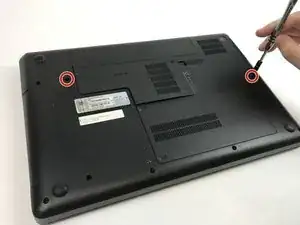

    • On the back panel of the laptop are two screws which have a keyboard symbol next to them.

    • Using a Phillips screwdriver with a PH0 bit, remove both the 7mm and 5.5mm screws.

  4. IItnmUGWjsNys3PN
    IItnmUGWjsNys3PN
    ZSCtLP23K6CXqN2V

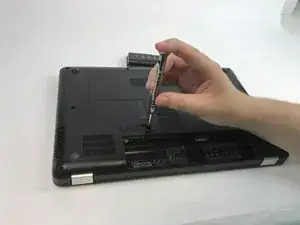

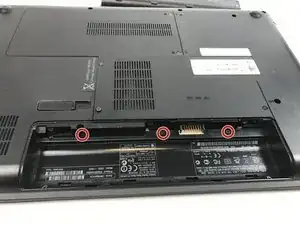

    • From left to right, unscrew the 5.5mm screw, the 7mm screw, and the 5.5mm screw located in the battery panel with the screwdriver.

  5. eF5bQcQYmpFZIOeM
    eF5bQcQYmpFZIOeM
    jqKJHgLFWKBPcSLD

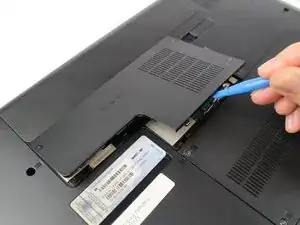

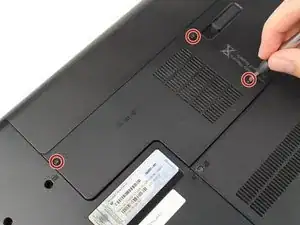

    • Remove the RAM panel by unscrewing the three screws with the PH0 Screwdriver Bit.

    • The screws do not come free from the panel. They only need to be loosened enough so that the panel can be lifted/pried using a plastic opening tool

    • Remove the RAM panel using a plastic opening tool.

  6. dEgHt4YGitDK2GPa

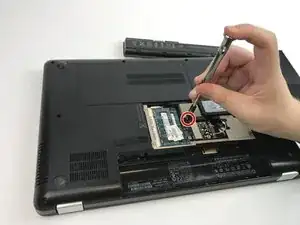

    • Inside the RAM panel, use the screwdriver to remove the 5mm screw pictured.

  7. gkvtAdjeUgA4ULpf

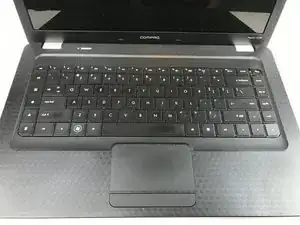

    • Flip the laptop back over and lift the lid to expose the keyboard.

  8. Bl3Ye4H5uhDu2bHe
    Bl3Ye4H5uhDu2bHe
    CufWp54KJYLctjrN

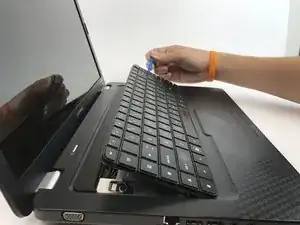

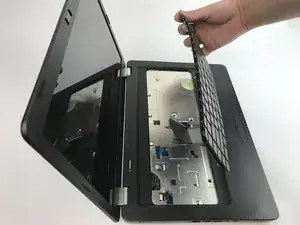

    • Use a plastic opening tool to pry up the keyboard.

  9. nHahX5QsvbWRME2A
    nHahX5QsvbWRME2A
    SxZM3uAL2dcGpXtM

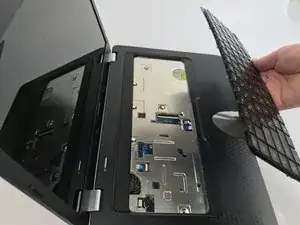

    • Once the keyboard is lifted, disconnect the band.

Abschluss

To reassemble your device, follow these instructions in reverse order.
