HP Compaq Presario V5303NR Disk Drive Replacement

Geschrieben von: Christopher M Paiva
  • Kommentare: 0
HP Compaq Presario V5303NR Disk Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

3 Minuten

Einleitung

This guide will walk you through the process of accessing, removing and replacing the Disk Drive for a Compaq Presario V5303NR. The process of accessing the disk drive will need to be done for replacement if the disk drive is faulty or damaged.

  1. d5xRsDQlIrB1xT2c
    d5xRsDQlIrB1xT2c
    RdUcbEnIiUqbeFmG
    BkOPEYsDg1UctC1g

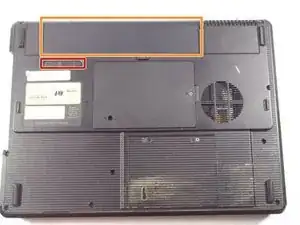

    • Turn the laptop bottom-side up.

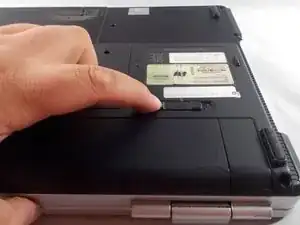

    • Push the battery latch to the left position to unlock the battery.

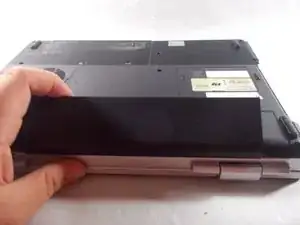

    • Remove the battery from its socket.

    • Failure to unplug the computer and remove the battery can result in electrical discharges on contact with the computer's components. This can damage the computer or even hurt the user.

  2. BVPkXye5tNsvcCxF
    BVPkXye5tNsvcCxF
    uLffbKCD1xdn1UOu

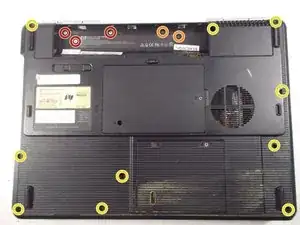

    • Use the Phillips #0 screwdriver to remove the 3 5mm #0 screws highlighted in the picture.

    • Use the Phillips #0 screwdriver to remove the 2 4mm #0 screws highlighted in the picture.

    • Use the Phippips #0 screwdriver to remove the 10 5mm #0 screws highlighted in the picture.

    • Keep the different types of screws separate from one another. They will only fit into holes created for screws of their size, and thus cannot fit into other screw holes.

  3. cfZrmjQWJBCcu6QO
    cfZrmjQWJBCcu6QO
    t6oCn42suW1Cgqli

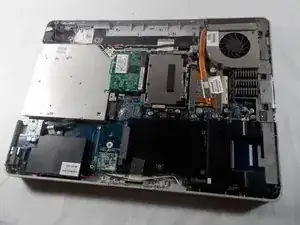

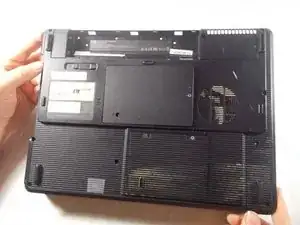

    • Remove the laptops bottom panel.

  4. S262x5gm4ytKFIDh

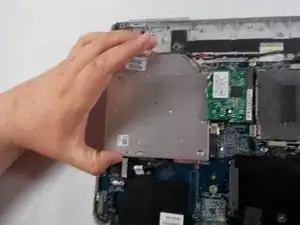

    • Gently remove the disk drive from its socket.

Abschluss

To reassemble your device, follow these instructions in reverse order.
