HP Compaq Presario V6000 Wifi antenna card Replacement

Geschrieben von: Hunter Griffin
  • Kommentare: 0
HP Compaq Presario V6000 Wifi antenna card Replacement

Schwierigkeitsgrad

Moderate

Schritte

3

Zeitaufwand

Keine Schätzung

Einleitung

  1. iRZchTiOTbvC4nDH

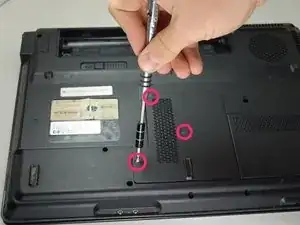

    • Grab a Type-Cross #1 screwdriver and unscrew the 3 screws and take off the cover of the wifi antenna card.

  2. kA6Ov4VoWkcdJDPq

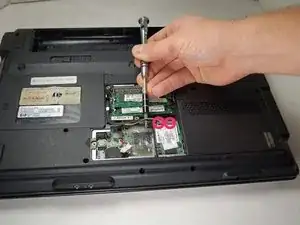

    • Use your finger tips to pry off the gray antenna connections.

    • Be careful to not pull the antenna wire too hard, you may cause damage to the connection permanently and/or motherboard.

    • The screwdriver is only being use to demonstrate which wire to remove. The screwdriver can potentially damage the motherboard if used improperly.

  3. phcYECdHST21vfme

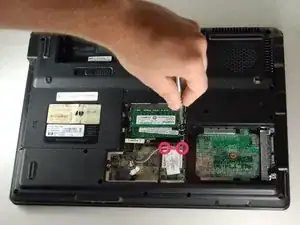

    • After removing the connection cable, remove the two screws that hold the wireless card to the motherboard.

    • Then gently remove card without causing any damage to card itself or surrounding parts.

Abschluss

To reassemble your device, follow these instructions in reverse order.
