In this guide it will take you through the process of replacing the motherboard. Please make sure the screws from the prerequisite guides are removed.
Werkzeuge
-
-
With all the screws removed from the previous guides. Remove the final eight M2.5X5 mm Philips screws on the back of the laptop
-
-
-
In the battery housing, there are three screws that hold the keyboard on. These screws are located on the side near the front.
-
In the center of the bottom of the computer between the RAM and the wifi antenna is a 4th keyboard screw that also needs to be removed.
-
-
-

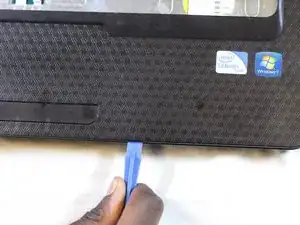

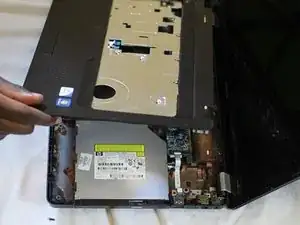

Open up the front of the laptop. Use a plastic opening tool to carefully pry open the keyboard from the edges.
-
-
-

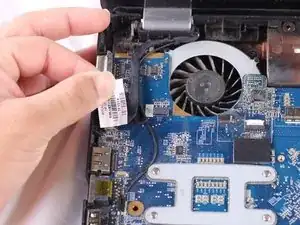

Locate the keyboard cable/wire that attaches the keyboard to the laptop .
-
Locate the latch of the wire connector
-

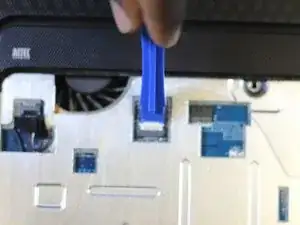

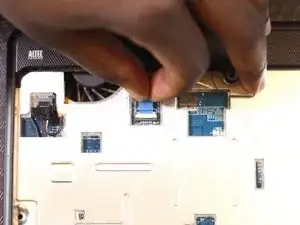

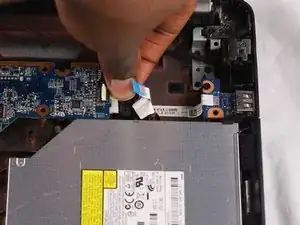

Unlatch the wire connector and gently pull out the wire with your hands
-
-
-

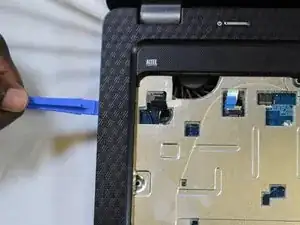

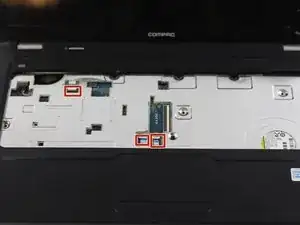

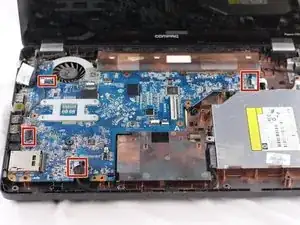

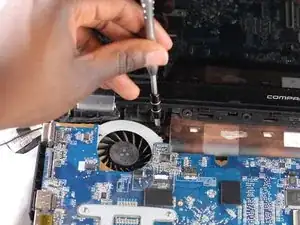

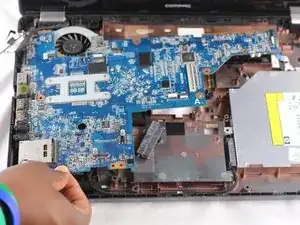

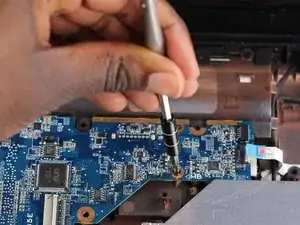

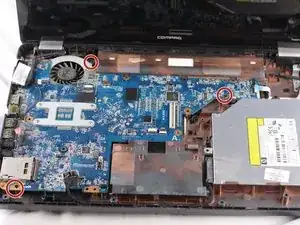

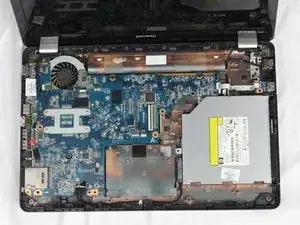

Locate the three tab holding down the cover of the Motherboard.
-

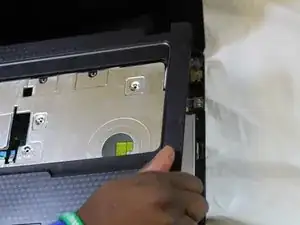

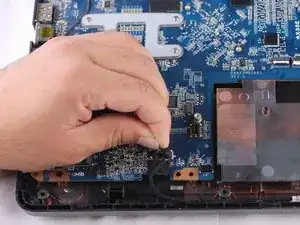

Lift the tabs with using either a plastic opening tool or your fingers.
-

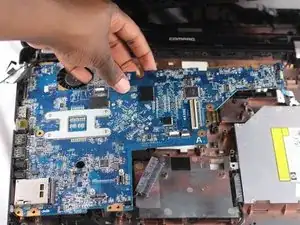

To reassemble your device, follow these instructions in reverse order.
