HP Compaq nc6400 Optical Drive Replacement

Geschrieben von: Chad Williams
  • Kommentare: 1
HP Compaq nc6400 Optical Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

15 - 30 Minuten

Einleitung

This guide will take you through the process of replacing the optical drive in a HP Compaq nc6400 Laptop. You will need the correct replacement optical drive for your laptop to complete the installation.

  1. pZFRIbFb1wvReTQO

    • Turn off and unplug laptop.

  2. UjWrb1pG1wrQgPVn

    • Locate the battery lock below the battery labeled one.

    • Slide the lock all the way to the left to release the left lock of the battery.

  3. RCEc5hJsmPs2Kcfl

    • Locate the lock labeled two at the bottom right corner below the battery.

    • Slide and hold the lock to the left.

  4. M6SLSOI5FoWqCeGv

    • Once both the battery locks are unlocked, slide the battery out to remove.

  5. RQEQNVPJhFOvHfmR
    RQEQNVPJhFOvHfmR
    inXssHY2gvqu5VXT

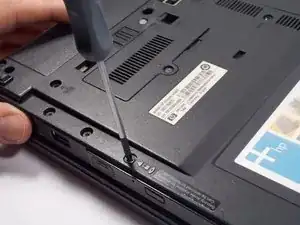

    • Remove the 4 mm P0 Phillips-head screw indicated by the icon of a lock and disk.

  6. QZomrUswiWIHD1XJ
    QZomrUswiWIHD1XJ
    ZQy4YJ3YNDeE2CsL

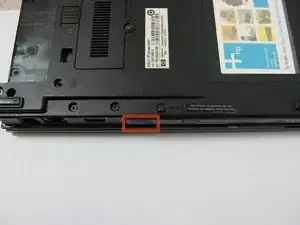

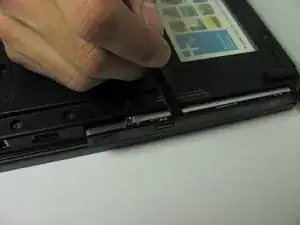

    • Press and release the eject icon to partially eject the optical drive.

    • Use of a spudger may be necessary to pry open the optical drive.

    This is the difficult part…mine is stuck!

    Andrew John Twyman -

  7. OdYOtShfuCqSSaQt

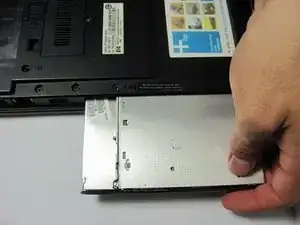

    • Grasp the sides and pull the optical drive out.

Abschluss

To reassemble your device, follow these instructions in reverse order.
