HP ENVY Rove 20-k014us Fan Replacement

Geschrieben von: Berit Bingham
  • Kommentare: 3
HP ENVY Rove 20-k014us Fan Replacement

Schwierigkeitsgrad

Moderate

Schritte

17

Zeitaufwand

25 Minuten

Einleitung

Replacing the fan is pretty straight-forward, just be sure you have purchased a replacement which is compatible with the ROVE. This guide also has several steps make sure you have suitable places to store all the components and screws you will be removing during the process and of course, good luck!

  1. CXaC5rNCjTUIlOWA

    • Working on your device while it’s turned on is potentially dangerous and can result in electrical shock. Please make sure your device is completely turned off before you begin disassembling it.

    • Flip the device over so the screen is face down.

    • Make sure the stand is flipped down for the easiest way to work with the device.

    • Make sure that you put the screen on a clean surface to avoid scratching it.

    please where can I get the replacement battery

    reply to tosinadedeji@gmail.com

    tosinwil -

  2. GGDhXKMqBZLeAGdm

    • Remove the SD card in the bottom of the computer by pressing the SD card in, and it will pop out.

    • Pull out the SD card completely and set aside.

    • If you have never put in an SD card into this slot, a dummy one will be there in the slot.

  3. cCVgpU2sTxLNiGuI
    cCVgpU2sTxLNiGuI
    uD1mxrw4fCgFYZgD

    • Remove the two rubber screw covers on the bottom of the plastic cover using the plastic opening tool.

    • Unscrew the two 6.35 mm PH#1 screws that were underneath the rubber covers.

    • The screws cannot be removed, they just unscrew from the interior components of the computer.

  4. d5OGOL4h2QPXAwHB
    d5OGOL4h2QPXAwHB
    OncFkfcvIQQjANiI

    • Use the plastic opening tool along the outer rim of the bottom portion of the back panel.

    • Take off this portion.

    • Removing the cover for the first time requires a bit of force. Use the plastic opening tool to get as much separation as possible before you pull off the cover to help prevent it from cracking.

  5. rZLRHq6ASJfVmjal
    rZLRHq6ASJfVmjal
    ZyjsaOK5gFX1NUWu

    • Remove three 6.35 mm screw from the back panel using a PH#2 or J1 screw driver.

    • Unscrew the two 6.35 mm PH#2 screws. They aren't able to be completely removed and will just be loosened similar to step 3.

  6. RfPk1V3fEdhr3Na5
    RfPk1V3fEdhr3Na5
    csQNpPg1CVGFokxM

    • Release the stand by pressing the large button on the left so that it is easier to take the back case off.

  7. 2jOQgqkLLUG4Umrk
    2jOQgqkLLUG4Umrk
    EWKHPnSbeICaHdZi
    KX3VJ4DMBQEtDQrg

    • Use the plastic opening tool to separate the silver back cover from the screen body.

    • As shown in picture two, use the tool around the stand as well to avoid cracking the cover.

    • As with the bottom cover, removing the top cover requires some force. Using the plastic opening tool to get as much separation as possible will make your job easier in the long run.

  8. DhsyhocKZDHmZdga

    • Slowly apply pressure to the outsides of the cover until it pops out of place.

    • Carefully lift the cover away from the computer and untangle it from the stand.

    • When putting the back cover back on, make sure you put the bottom of the cover on first so that the plastic cover sits tightly underneath the bottom of the stand case. Then make sure all the plastic tabs are fully pushed in.

    • Make sure that the power button is aligned when you put the back cover on.

  9. gIQ1frvOivS2cvrs
    gIQ1frvOivS2cvrs
    GAJSsQq5RmKVPnDi

    • Before working on any of the internal components of the computer, make sure the battery is disconnected so there's no power running through the device.

    • Disconnect the battery by using a plastic opening tool and taking the cable connection out.

  10. iUiEG1Ii1E6EKf1U

    • Remove the two black 6.35mm PH #0 screws with a screwdriver from the top of the hard drive.

    • Remove the two silver 6.35mm PH#0 screws from the bottom of the hard drive.

  11. JPfYGMKHCAaEWGeC

    • Gently remove the hard drive from the computer.

    • Unplug the hard drive.

  12. mC3UOwrmqHZXQsGF

    • Release the stand by pushing the grey lever in towards the screen.

    • Doing this will allow you to access and remove the plastic casing (stand recess) around the stand itself in the next step.

  13. 3Q3y2OlYDSGoXMFk

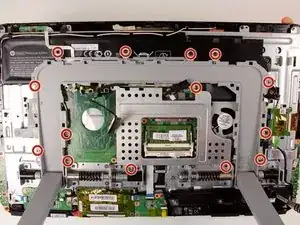

    • Remove the fourteen 6.35 mm PH#0 screws around the stand recess and metal cage.

  14. LHWNlCY5IuosU5wA
    LHWNlCY5IuosU5wA
    kuQsiyL6yKksZrim

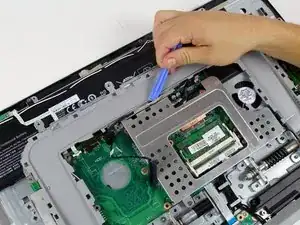

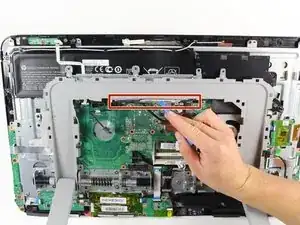

    • Gently remove wires from around the stand recess with the plastic opening tool.

  15. HItI5ccZjWEZ2Fmg

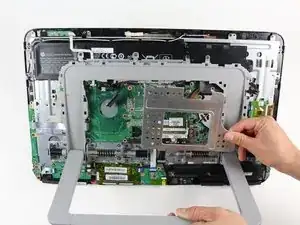

    • Remove the metal cage.

  16. pXjFHJuhU6vUC2nc
    pXjFHJuhU6vUC2nc
    o2E3cEM1IwabMOUN

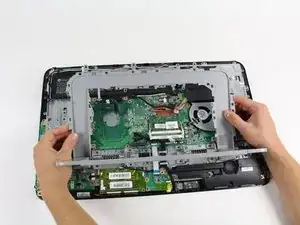

    • Remove the stand recess by moving it towards yourself, rotating it about the hinge and then taking it out of the computer.

  17. Fes5Vo6mgF11YTZd
    Fes5Vo6mgF11YTZd
    uWg2scEPqZ46tk3y
    BV5WUSjMf3kgcMJQ

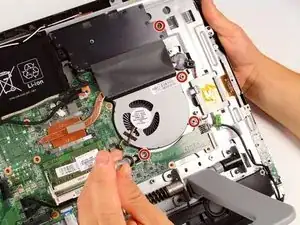

    • Remove four 6.35 mm PH#0 screws around the fan using the J1 screwdriver head.

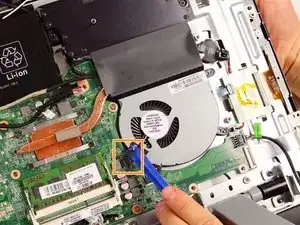

    • Unplug the fan.

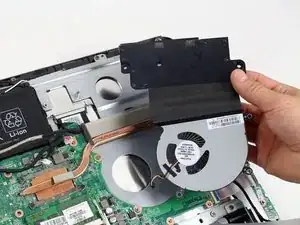

    • Remove the fan from the computer.

    • The black plastic air channel is attached to the fan and will come out as well.

Abschluss

To reassemble your device, follow these instructions in reverse order.
