HP Elite X2 G4 Display Assembly Replacement

Geschrieben von: Goncalo Felix
  • Kommentare: 1
HP Elite X2 G4 Display Assembly Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

40 Minuten

Einleitung

This guide will go through on how to replace your device's display panel (screen). To start with the replacement process, we recommend watching this video.

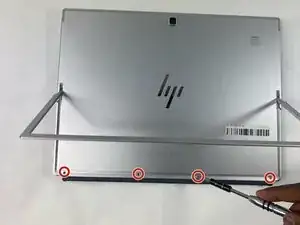

  1. iXZNR6MVXbVehWv3

    • Open the kickstand.

    • Remove the four 3 mm T5 Torx-head screws that secure the display assembly.

  2. uFE5gVPPvLS1XFrY

    • Use a suction sup to carefully detach the display assembly in the following order: top-right corner, top-left corner, bottom-right corner and bottom-left corner.

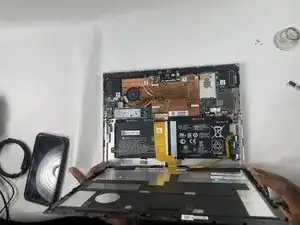

  3. SAf2BIVoRx3PZnqQ

    • Slowly lift the display panel until you have access to the battery connector on the motherboard (approx. 90 degrees).

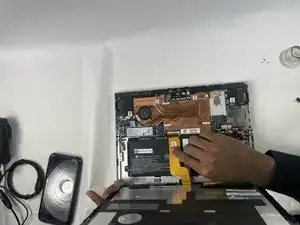

  4. ZUXQJZyUDvawT3HP

    • Disconnect the battery cable from its motherboard connector.

    • Remove the tape that covers the touchscreen and display panel ZIF connectors.

  5. ubqMgIiwFNhQiYXd

    • Disconnect the touchscreen ribbon cable from the motherboard.

    • Remove the display panel assembly.

Abschluss

To reassemble your device, follow these instructions in reverse order.
