HP Elite x2 1012 G2 Prop Stand Replacement

Geschrieben von: kefil
  • Kommentare: 0
HP Elite x2 1012 G2 Prop Stand Replacement

Schwierigkeitsgrad

Very easy

Schritte

3

Zeitaufwand

5 Minuten

Einleitung

  1. LNRZiBGZKART5Gub
    LNRZiBGZKART5Gub
    QRtXxVQVnkxKTHXP

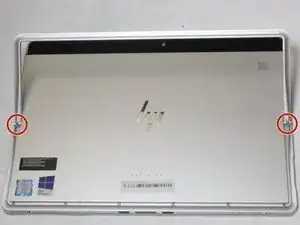

    • Lift the prop stand approximately 140 degrees from its home position to expose two T5 Torx head screws.

  2. RmriT6ACMJX1rDfN

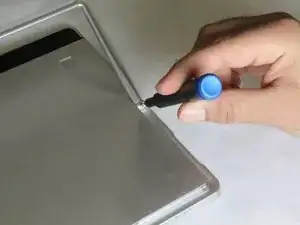

    • Use the T5 Torx bit to remove both screws from the prop stand pivot points.

  3. DPuWB6Sp5UmURQl1

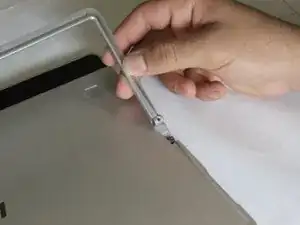

    • Gently pull the stand away from the device until you can lift the prop stand away from the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
