HP Elite x2 G1 1012 Battery Replacement

Geschrieben von: Colin Mika
  • Kommentare: 9
HP Elite x2 G1 1012 Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

10 - 30 Minuten

Einleitung

If the battery is running low or does not work any more, use this guide to replace it.

For your safety, discharge your battery below 25% before disassembling your device. This reduces the risk of a dangerous thermal event if the battery is accidentally damaged during the repair. If your battery is swollen, take appropriate precautions.

  1. AbQllZJ4mDWTXT6Y

    • Be sure to power off and unplug your device before you begin your repair.

    • With the screen face down, lift up the stand as far as it goes.

    • Make sure not to force it past the resting point.

  2. Rsv1JKFqWVTlbmq2
    Rsv1JKFqWVTlbmq2
    i2nfgLQf3XE3deJw

    • Use a T5 driver to remove the six screws on the back of the tablet.

    Torx T5 screwdriver

    William Sherman -

    Mine were also Torx T5 screws.

    Christopher Rath -

    Thanks for the T5 info!

    Arthur Shi -

  3. ZoFi3bxgxhYvHP1t

    • After removing the screws, delicately close the stand.

    • Flip the tablet on its back so that the screen is facing up.

  4. bnxMBeYlQNjKnuFb
    bnxMBeYlQNjKnuFb
    cQBfjUCRCEIlfqgg

    • Use the suction cup to carefully separate the screen from the device. Pull upwards with a fluid and smooth motion.

    • Do not lift too fast! There will still be wires connecting the screen to the device. Make sure they are not tampered with.

    Start with the suction cup centered on the edge (not on the right, as shown). The clips in the side corers of the screen are tighter than the center clips. As the screen bows out in the middle, the side clips easily disengage.

    Christopher Rath -

  5. n5uvqw55RQfgMs1t
    n5uvqw55RQfgMs1t
    SwSORTjecoBXMPbh
    dZpyYWTdtAScSy6A

    • Remove the tape on the lower left side of the screen.

    • Underneath the tape, disconnect the LCM cable, the larger wire that was underneath the tape, from the back of the tablet screen.

  6. oCQMSFQJ1ra1rWHC
    oCQMSFQJ1ra1rWHC
    CmVEREcIYjJZrZp4

    • Disconnect the flex cable from the device using the spudger.

    • Remove the Display Assembly from the device.

  7. XtPscigAWOM4O3DQ

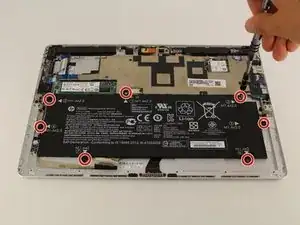

    • Use a Phillips #00 screwdriver to remove the seven screws holding the battery in place.

    • Five 1.6x2.5 mm and two 1.6x2 screws should be on the battery.

  8. oq5gUXbYs4aJUslR
    oq5gUXbYs4aJUslR
    SNGPqsXJgdnQvTLF

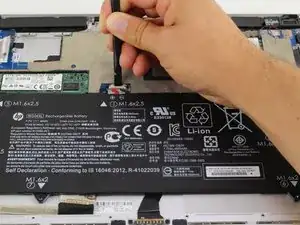

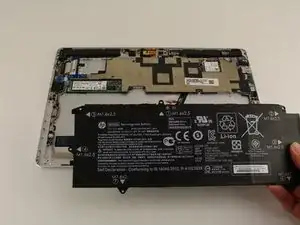

    • Disconnect the red, white, and black wires and remove the battery from the device.

    • Make sure to properly dispose of the dead battery.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Colin Mika

Mitglied seit: 19/04/18

928 Reputation

5 Kommentare

Thanks a lot for the information!

Santi Costa -

Thanks for the help. Successfully change my battery.

Christopher Rath -

One problem that people might run into is the device not recognizing the battery firmware if it is an aftermarket battery and not a genuine HP one. Where the device will work but only if it is plugged into the charger. It even shows the battery charging but very slowly. If you disconnect the charger the device will instantly shut off. What is the fix for that?

Adam Stansbery -

Why must the flex cable be disconnected? If you are able to secure the screen in proper position it does not appear that it would interfere with the battery change.

Bart Farkus -

Na vervanging batterij aangesloten op charger, witte led knippert enkele malen en gaat dan uit. De batterij indicator in windows geeft niet aan dat er geladen wordt. Wat zou de oorzaak kunnen zijn?

Tim Röttger -
