HP Elite x2 G1 1012 Front Facing Camera Replacement

Geschrieben von: Colin Mika
  • Kommentare: 4
HP Elite x2 G1 1012 Front Facing Camera Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

15 - 20 Minuten

Einleitung

If the front camera is damaged or needs maintenance, use this guide to replace it.

  1. AbQllZJ4mDWTXT6Y

    • Be sure to power off and unplug your device before you begin your repair.

    • With the screen face down, lift up the stand as far as it goes.

    • Make sure not to force it past the resting point.

  2. Rsv1JKFqWVTlbmq2
    Rsv1JKFqWVTlbmq2
    i2nfgLQf3XE3deJw

    • Use a T5 driver to remove the six screws on the back of the tablet.

    Torx T5 screwdriver

    William Sherman -

    Mine were also Torx T5 screws.

    Christopher Rath -

    Thanks for the T5 info!

    Arthur Shi -

  3. ZoFi3bxgxhYvHP1t

    • After removing the screws, delicately close the stand.

    • Flip the tablet on its back so that the screen is facing up.

  4. bnxMBeYlQNjKnuFb
    bnxMBeYlQNjKnuFb
    cQBfjUCRCEIlfqgg

    • Use the suction cup to carefully separate the screen from the device. Pull upwards with a fluid and smooth motion.

    • Do not lift too fast! There will still be wires connecting the screen to the device. Make sure they are not tampered with.

    Start with the suction cup centered on the edge (not on the right, as shown). The clips in the side corers of the screen are tighter than the center clips. As the screen bows out in the middle, the side clips easily disengage.

    Christopher Rath -

  5. n5uvqw55RQfgMs1t
    n5uvqw55RQfgMs1t
    SwSORTjecoBXMPbh
    dZpyYWTdtAScSy6A

    • Remove the tape on the lower left side of the screen.

    • Underneath the tape, disconnect the LCM cable, the larger wire that was underneath the tape, from the back of the tablet screen.

  6. oCQMSFQJ1ra1rWHC
    oCQMSFQJ1ra1rWHC
    CmVEREcIYjJZrZp4

    • Disconnect the flex cable from the device using the spudger.

    • Remove the Display Assembly from the device.

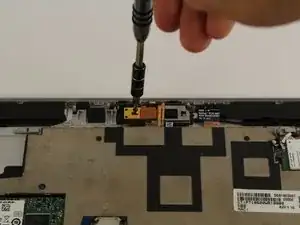

  7. VVLbvjOCuJZLnAlO
    VVLbvjOCuJZLnAlO
    j2L1mmwn2AhEmKqU

    • Use a Phillips #00 screwdriver to remove the screw.

  8. hRBNuMAYILUMl3KT

    • Use the spudger to gently lift up the camera.

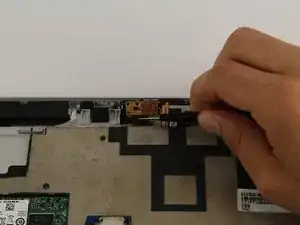

  9. xUbmqmtIK3rZs2qY
    xUbmqmtIK3rZs2qY
    fPVNKbd1NCqMQKPe

    • Use a pair of tweezers to disconnect the flex cable from the motherboard.

    • Remove the front-facing camera from the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
