HP Elite x2 G1 1012 Motherboard Replacement Guide

Geschrieben von: Hanif Norhisham
  • Kommentare: 4
HP Elite x2 G1 1012 Motherboard Replacement Guide

Schwierigkeitsgrad

Moderate

Schritte

15

Zeitaufwand

15 - 20 Minuten

Einleitung

If the tablet experiences one of the three symptoms below, there might be a problem with the motherboard.

  • The initial start-up functions appear like indicative light, fan, and hard drive sound, but disappears after a while, i.e., 5 – 3 minutes.
  • A high pitched sound comes from the laptop when you press the “on” button.
  • Your screen is projecting a black screen, even though all other components such as fans, indication light and hard drive seems to be working perfectly.

Before going through the replacement process, make sure your tablet is turned off and not connected to the power cord.

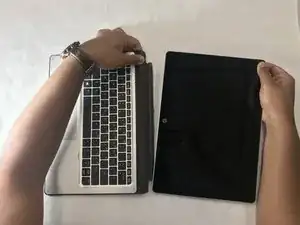

  1. rjHPFkeQfuJY14Vr
    rjHPFkeQfuJY14Vr
    NQKNfDLwR6fKjJWR

    • Detach the keyboard from the screen.

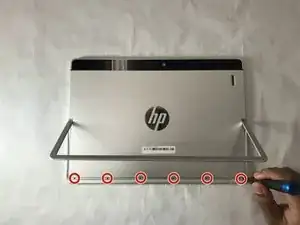

  2. UZnhcqRywltEKog5

    • While the screen is facing down, remove six 3.0 mm Torx T5 screws under the stand.

    • The screws were not available when we received our device.

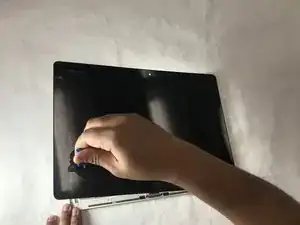

  3. tUag1FVK5pXr612s
    tUag1FVK5pXr612s
    JQONyoxccdAYWk1C
    6NDWNUTpJKnja5ZJ

    • Use a suction cup to remove the screen panel.

  4. HiNZMXx3fe5yQKkX
    HiNZMXx3fe5yQKkX
    W2NfcEvar2JPunT6
    5spNs3cfgWfWVjAn

    • Detach flex cable from motherboard using tweezers.

    You also have to detach the screen ribbon (silver) at the bottom end. Peel back the protective sticker on the screen end, and it unplugs downwards. There’s no retaining clip.

    tca cowan -

  5. IULRU4sOR4cC2CMu

    • Unplug the battery wire attached to the motherboard using tweezers.

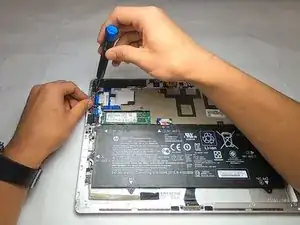

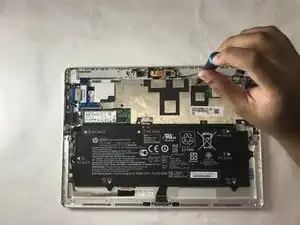

  6. BlwueIfQ1oEEnoTF
    BlwueIfQ1oEEnoTF
    aGYrWKLJc4WGOAGU
    ojBVGRfVk3AkfmcY

    • Remove ten 2.7mm screws using the Phillips #0 screwdriver.

    There is one screw missing here: Top Right immediately above the USB 3 port. It needs to come out as well.

    Also, there is a silver double-screw cover above the USB-C post that needs to come out as well.

    tca cowan -

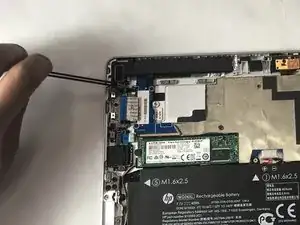

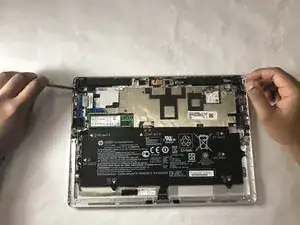

  7. 1FKOdNtBAKhLxtfm
    1FKOdNtBAKhLxtfm
    DVjYQvhHGcFOh5Bl

    • Unplug the speaker wire attached to the motherboard.

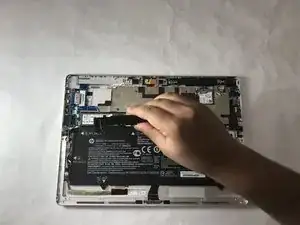

  8. LQEVxJH3ZiVloZT2
    LQEVxJH3ZiVloZT2
    RUGDTj33KEJKcIQO

    • Detach the left speaker.

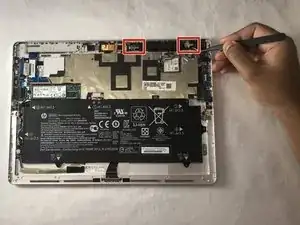

  9. aIE1EITxiMJvjFGl
    aIE1EITxiMJvjFGl
    36JF5vTheoXfRIfO

    • Detach the two stickers highlighted from the right speaker.

    I cannot see why you needed to take out the speakers. They do not inhibit the Board coming out. The only thing you need to do is detach the stickers holding the wifi antennas from the speakers, and unplug the speaker cables from the motherboard (they are tiny and very fiddly to get back in again - needs small tweezers)

    tca cowan -

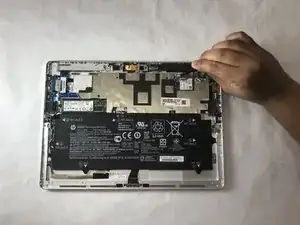

  10. j425pjNcVMuLEyT4

    • Detach the right speaker cables from the motherboard using tweezers.

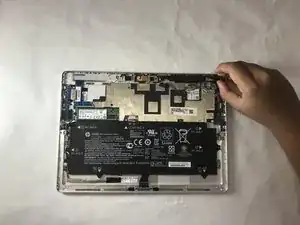

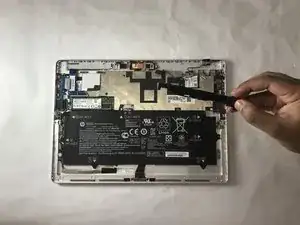

  11. iXGhZmm6SJShMRJM
    iXGhZmm6SJShMRJM
    ECBCcZyJATVIi1PC

    • Detach the right speaker.

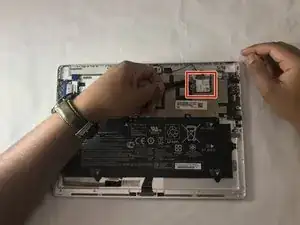

  12. ZPFaxH4lW4shirVK

    • Detach the WWAN card from the motherboard by pulling it to the left using tweezers.

  13. KxKQ5Tf1cNs54vBV

    • Detach the SSD from motherboard by pulling it to the left using tweezers.

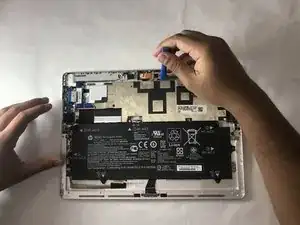

  14. 4OwjhyMhZrETXFvl

    • Use the plastic opening tool to loosen the motherboard.

    You missed a step here. Using the other guides for the front and real camera, you need to detach these before prying up the motherboard

    tca cowan -

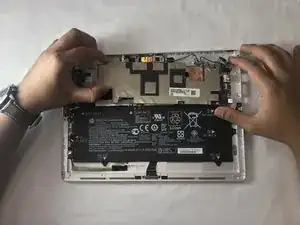

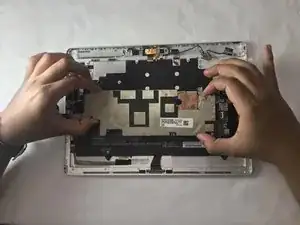

  15. PXLYOYNljWVnHsFW
    PXLYOYNljWVnHsFW
    mZy5TvHZAhdPTtJL
    ORvHrLuFiXFUh3BX

    • Detach the motherboard from the casing.

    • Apply pulling force to the left to pull out the ports from the casing safely.

Abschluss

To reassemble your device, follow these instructions in reverse order.
