HP Elite x2 G1 1012 Rear Facing Camera Replacement

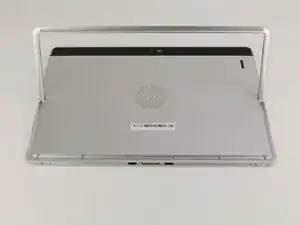

With the screen face down, lift up the stand as far as it goes.

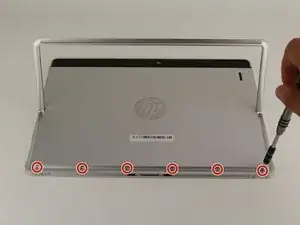

Use a T5 driver to remove the six screws on the back of the tablet.

After removing the screws, delicately close the stand.

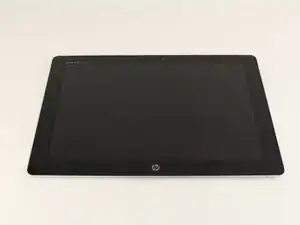

Flip the tablet on its back so that the screen is facing up.

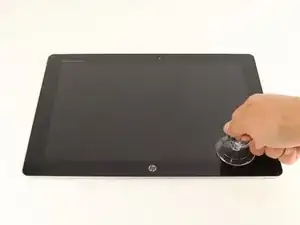

Use the suction cup to carefully separate the screen from the device. Pull upwards with a fluid and smooth motion.

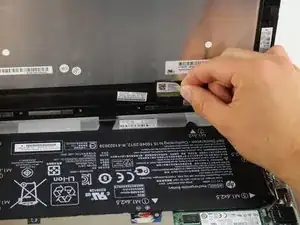

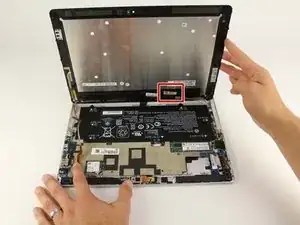

Remove the tape on the lower left side of the screen.

Underneath the tape, disconnect the LCM cable, the larger wire that was underneath the tape, from the back of the tablet screen.

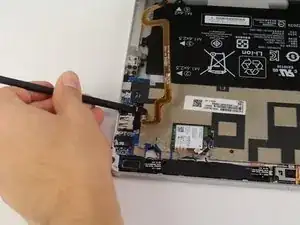

Disconnect the flex cable from the device using the spudger.

Remove the Display Assembly from the device.

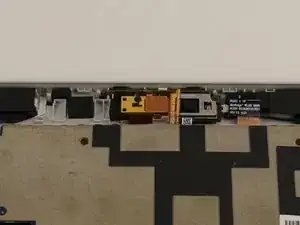

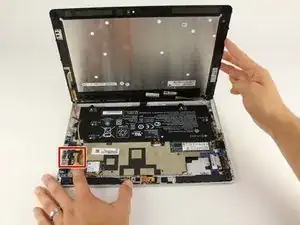

Use a pair of tweezers to remove the flex cable on the top of the camera.

Use a Phillips #00 screwdriver to remove the screw in the corner of the camera.

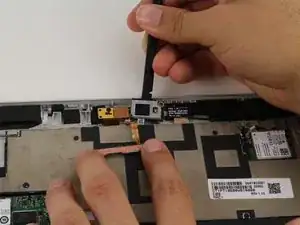

Use a spudger to delicately lift up the camera.

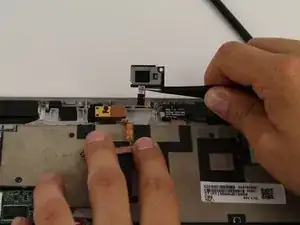

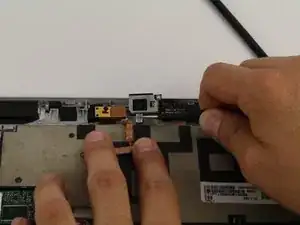

Use a pair of tweezers to disconnect the flex cable from the motherboard and remove the rear facing camera from the device.
